SPL Phonitor xe - Internal Operating Voltages; Power Supply

31
Specications
Internal operating voltages
• Analog: +/-  V
• Digital: +  V and + . V (optional DAC)
Power supply
• Mains voltage (switchable):  V AC /  Hz or  V AC /  Hz
• Fuses:  V: T  mA;  V: T  A
• Power consumption: max  VA
• Stand-by power consumption: . W
Phonitor xe
Serial
Number
Made in Germany
~ 115V AC / ~230V AC, 50 Hz / 60 Hz, P max. 45 W
R
PGM
VOLUME
Refer to
Manual
AVIS: RISQUE DE CHOC ÉLECTRIQUE • NE PAS OUVRIR
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION

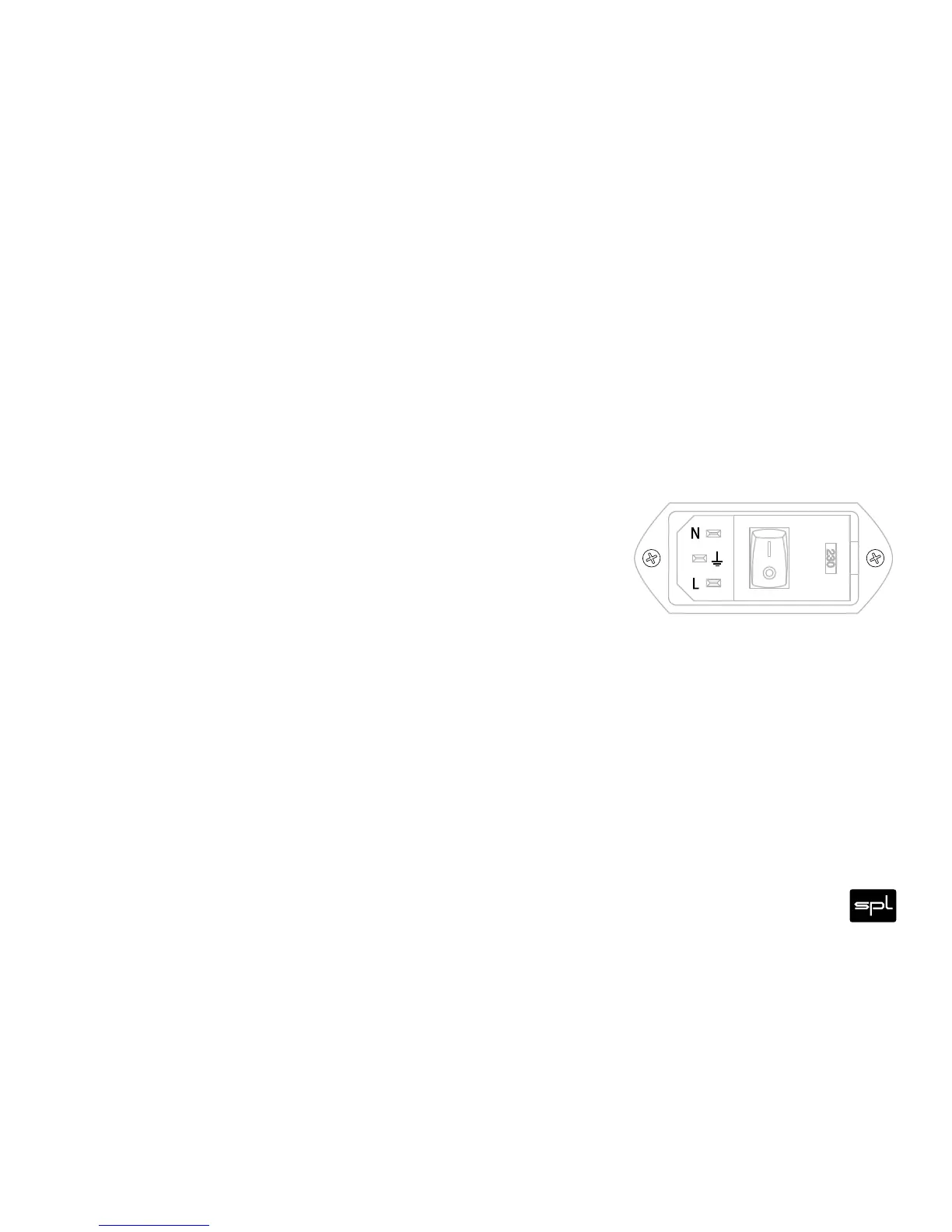

Fuses:
Voltage Selection:
230V AC: T 500 mA L 250 V
115V AC: T 1 A L 250 V
1. Remove Fuse Holder
2. Exchange Fuses
3. Flip Over 4. Reinstall
XLRs: balanced, Pin 2 = Hot (+)
For unbalanced operation
bridge Pin 3 to GND.
RCAs: Unbalanced, Tip = Hot (+)
WIRING
ON BOTTOM SIDE:
DIP SWITCHES
1 ON: HP Out +22dB
2 ON: HP Out +12dB
3 ON: VU 0 = +10dB
4 ON:
XLR Direct Out
5 ON: RCA Direct Out
6 ON: AMP CTL power off
when listening to
SPEAKER OUTPUTS
RLRL
ANALOG SOURCES DIGITAL SOURCES
SPEAKER OUTPUTS
L
R
ANALOG SOURCES DIGITAL SOURCES
LR
USBOPTICAL
R
L
R
L
LL
R
COAX
IR
