55

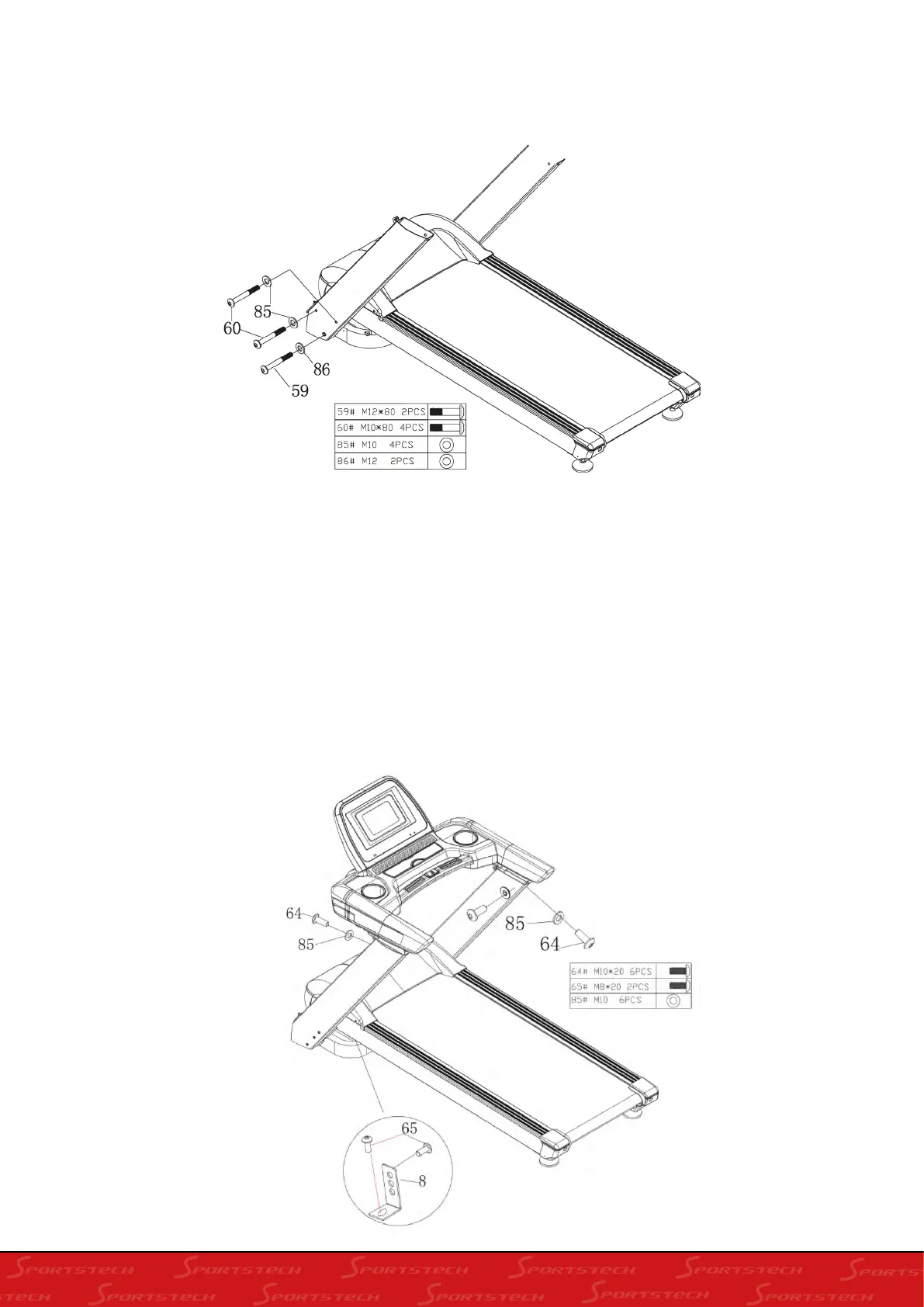

1. Fix the left and right side covers on both sides of pedestal with 59# and 60# screw
and lock them.
Step 2: Assembly of left and right side covers
1. Take out support of massager, pay attention to (R) indication of (L) gasket, and fix
support of massager onto left and right stand pipes with 70# screw and 87# flat
gasket.
Step 3:
2. Take out supine support, and fix it onto support of massager with 72# screw and
87# flat gasket.
3. Fix massager onto stator on the top of supine support with hex screw, flat gasket and
spring washer.
To Next Page
