5. STEPS OF ASSEMBLY
1. Hold the electronic meter and slowly lift it to fixed screw hole.

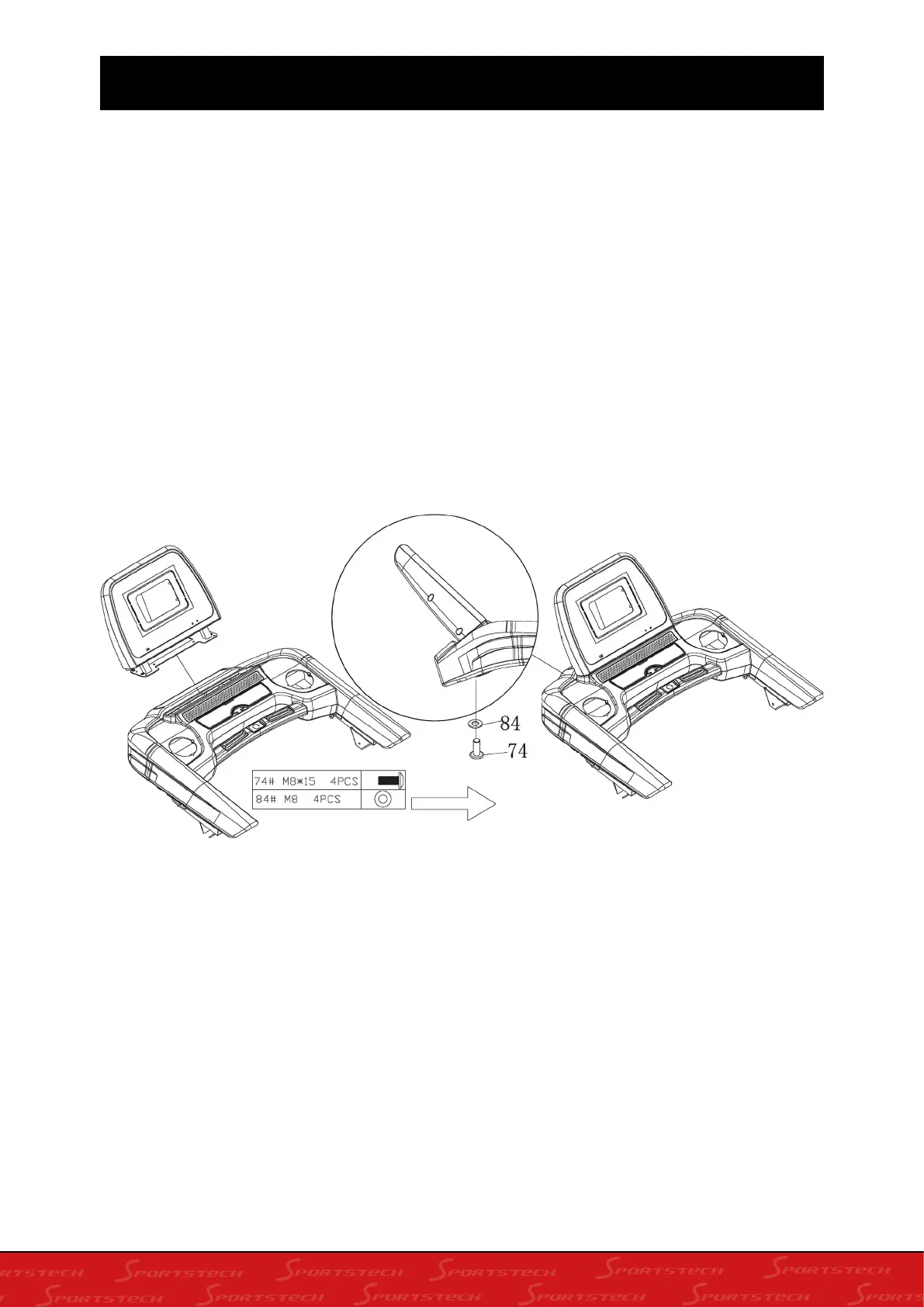

Step 1: Installation of complete machine
2. Fix electronic meter onto column with 74# screw and 84# flat gasket.
3. Fix protecting cover of column onto rear cover of electronic meter on the top of
column with 82# screw.
4. Fix column onto pedestal with 74# screw, 76# screw and 84# flat gasket.
5. Remove package stator (red) fixing frame and pedestal, and prevent the frame from
hurting people when bouncing off.
