4.4 CONFIGURATION

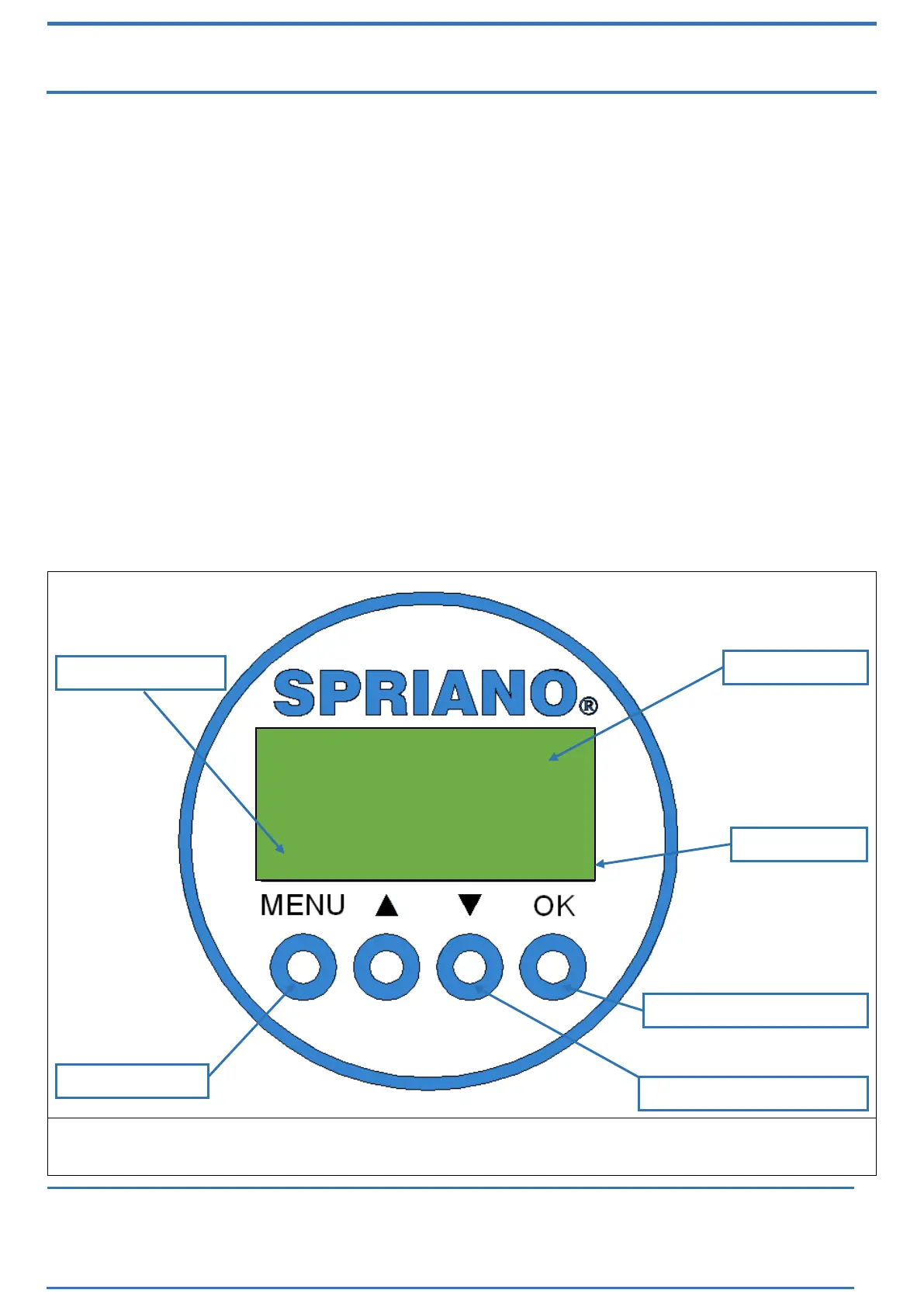

The transmitter shows the status and the measure on the dot matrix LCD (Figure 16). The span
is from -99999 to 999999.
The input signal to the transmitter can be related to the output signal in the following ways:
Direct mode = 4÷20mA output
Reverse mode = 20÷4mA output
The direct mode is obtained by setting the lower range point with the lowest value of the range
(e.g. 0 mm o 0 kg/l) and by setting the upper range point with the highest value (e.g. 35 cm o
1.35 kg/l). The reverse mode is obtained by setting the lower range point with the highest value
of the range (e.g. 35 cm o 1.35 kg/l) and by setting the upper range point with the lowest value
(e.g. 0 mm o 0 kg/l).
It is possible to display the temperature value of the control board by pressing the following
button during transmitter operation:
= electronic board temperature.
The unit of measure (°C) is defined in the entry TEMP UNIT in the keyboard menu (Figure 16).
Board temperature display
Choice bar graph / % span
