3.7 ELECTRONIC HEAD ORIENTATION
In order to rotate the electronic head in the desired position you must follow these passages
(Figure 7):
 unscrew the 4 screws (A) and remove the housing cover (B);
 loosen the fixing nut (C) with key CH24 and by hand gently rotate the enclosure (D) in the
desired position;
 once the desired position is reached fix the nut (C) again with the same key and remount
the housing cover (B).

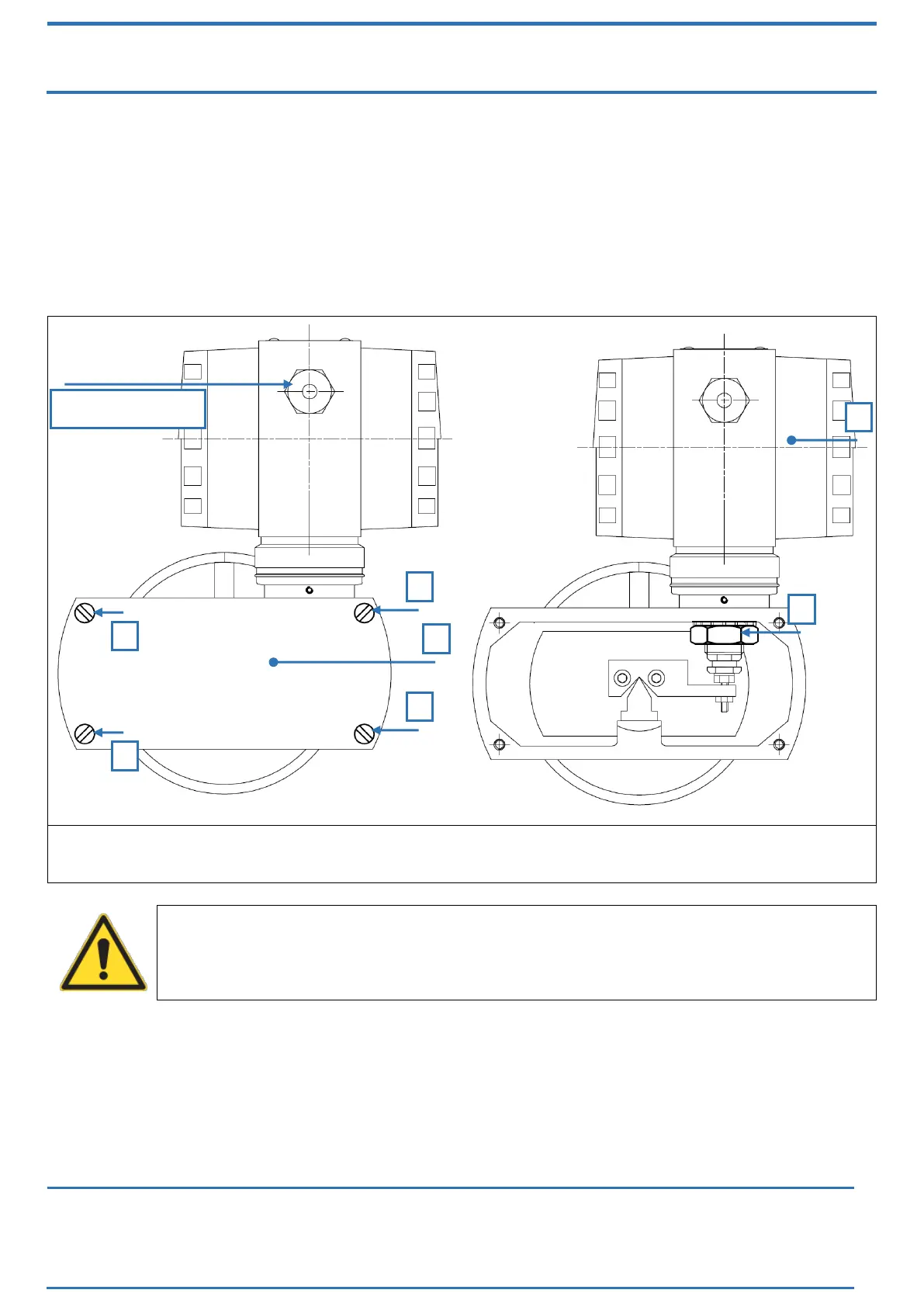

Figure 7: rotating the transmitter head
WARNING!
Mount back the housing cover being careful to press the gasket correctly.
A
A
A
A
B
It is NOT necessary to
turn off the supply
C
D
