5 TRANSPORT SECURITY OPERATIONS
WARNING!
It is prohibited to move the instrument without having executed the steps
indicated in this chapter.
Failure to comply with this section will permanently damage the instrument.
Before moving the Transmitter strictly follow the bellow sequence of instructions:
Step 1 (Figure 17):
 screw the M8 stud bolt A into the nut B until it stops;
 place the washer C on the top of the cage and start screwing the nut D on the stud bolt
A;
 screw the nut D on the stud bolt until the contact between the washer and the nut is
reached;
 once the contact is reached, rotate the nut D for two more turns in order to disconnect
the displacer hook from the lever (ref. Part. E).

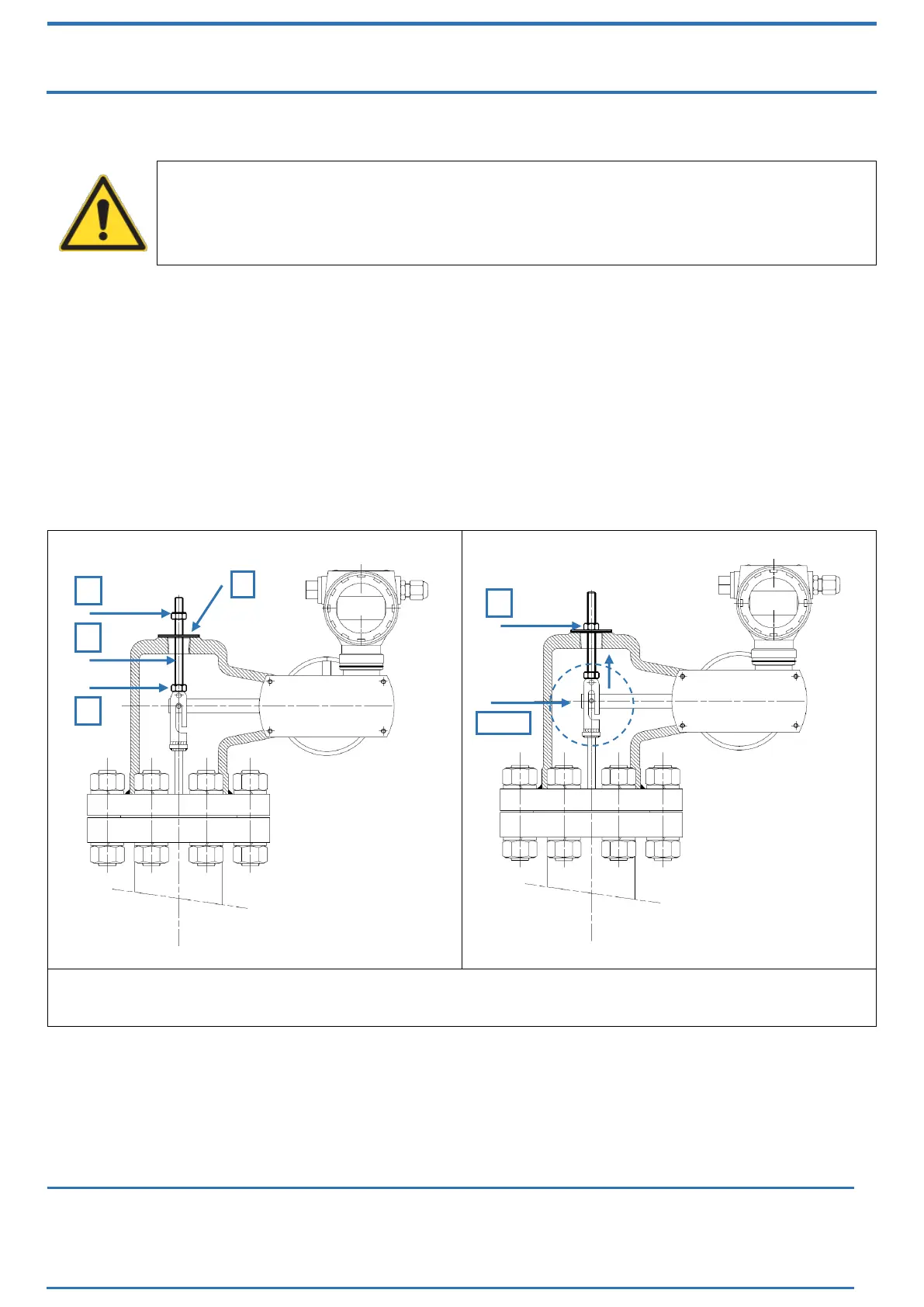

Figure 17: transport security operations - Step 1
A
B
D
C
D
Part. E
