6.3 DISPLACER SUBSTITUTION
Before disassembly the TOP PART strictly follow the Step 1 (Figure 17), Step 2 (Figure 18) and
Step 4 (Figure 19) indicated in TRANSPORT SECURITY OPERATIONS.
Step 1 (Figure 23):
once the DISPLACER is fixed to the top locking device and the TOP PART is ensured with
appropriate equipment in the indicated hanging points, remove the stud bolts G;
raise the top part ensuring to maintain the coaxiality between the displacer H and the
bottom part I;
then, substitute the gasket L.

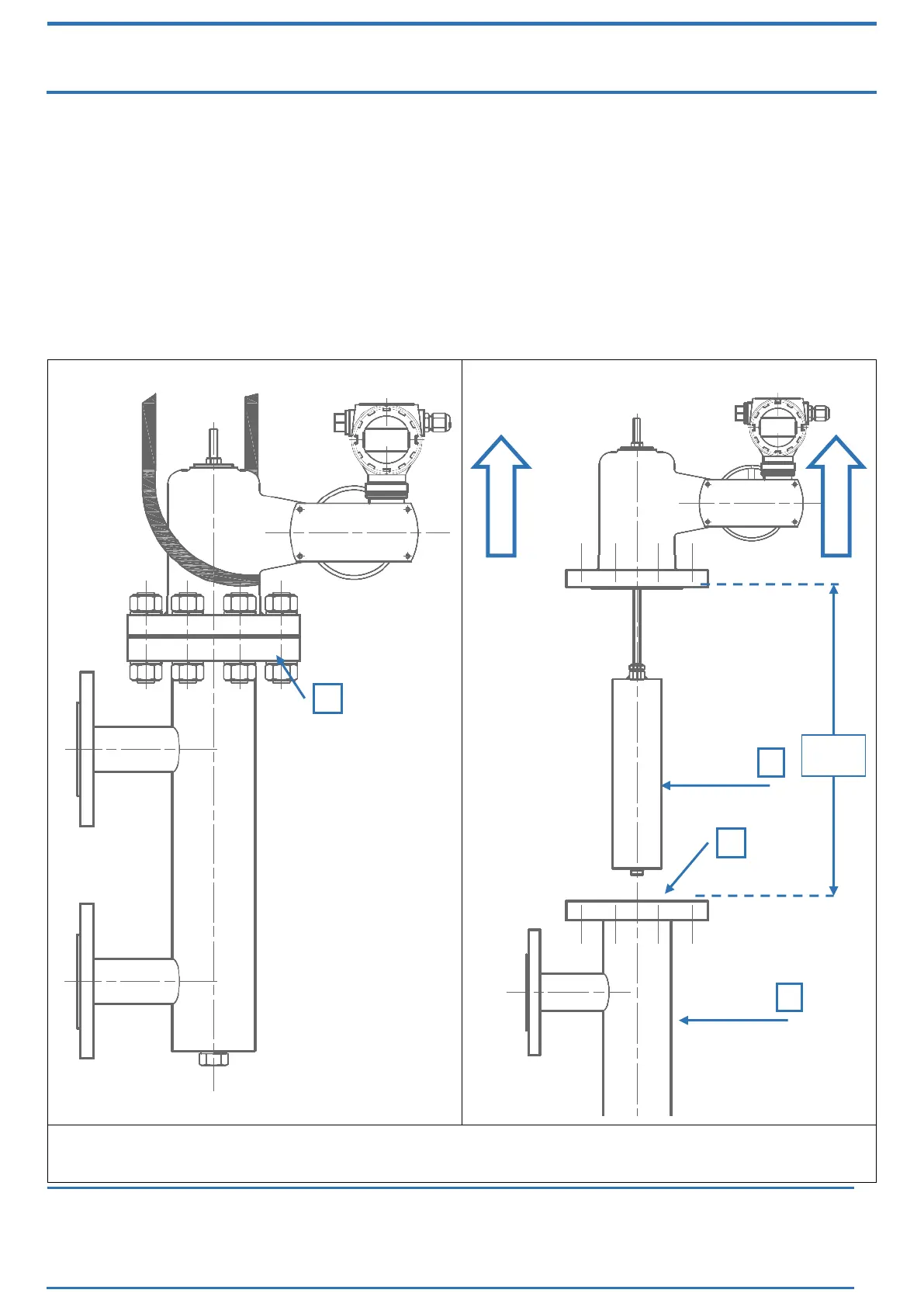

Figure 23: displacer substitution – Step 1
