6.4 ELECTRONIC HEAD SUBSTITUTION
WARNING!
Do not perform any maintenance, make any adjustments, or replace any
components inside the electronic enclosure with the power supply turned on.
To avoid injury to health or may damage the equipment, always turn the power
supply to off and ground the circuit before performing any maintenance or
adjustment procedure.
Before the Electronic Head Substitution, strictly follow the Step 1 (Figure 17) and Step 2
(Figure 18) indicated in TRANSPORT SECURITY OPERATIONS.
Step 1 (Figure 26):
 unscrew the 4 screws (A) and remove the housing cover (B);
 completely remove the nut (C) and the washer using key CH24.

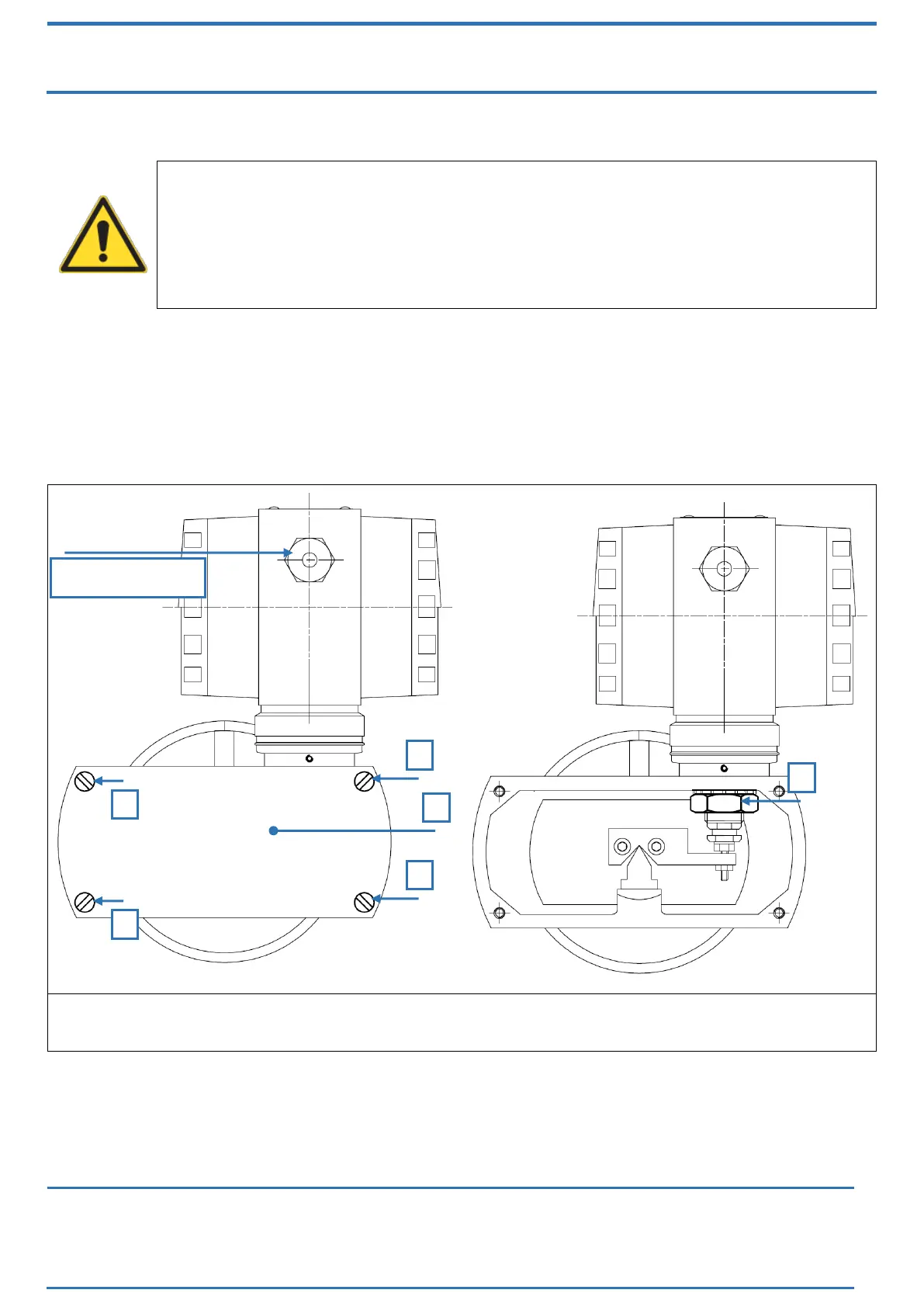

Figure 26: electronic head substitution – Step 1
A
A
A
A
B
It is necessary to turn
off the supply
C
