Step 2 (Figure 24):
 remove the top locking device A-C-D, then unhook the old displacer;
 insert a new displacer into the bottom part and gently hook the displacer to the top part;
 remounting A-C-D, tighten the stud bolts G, then remove A-C-D again;
 repositioning the ¾’’ NPT vent cap, then unscrew for seven turns the stop dowel F.

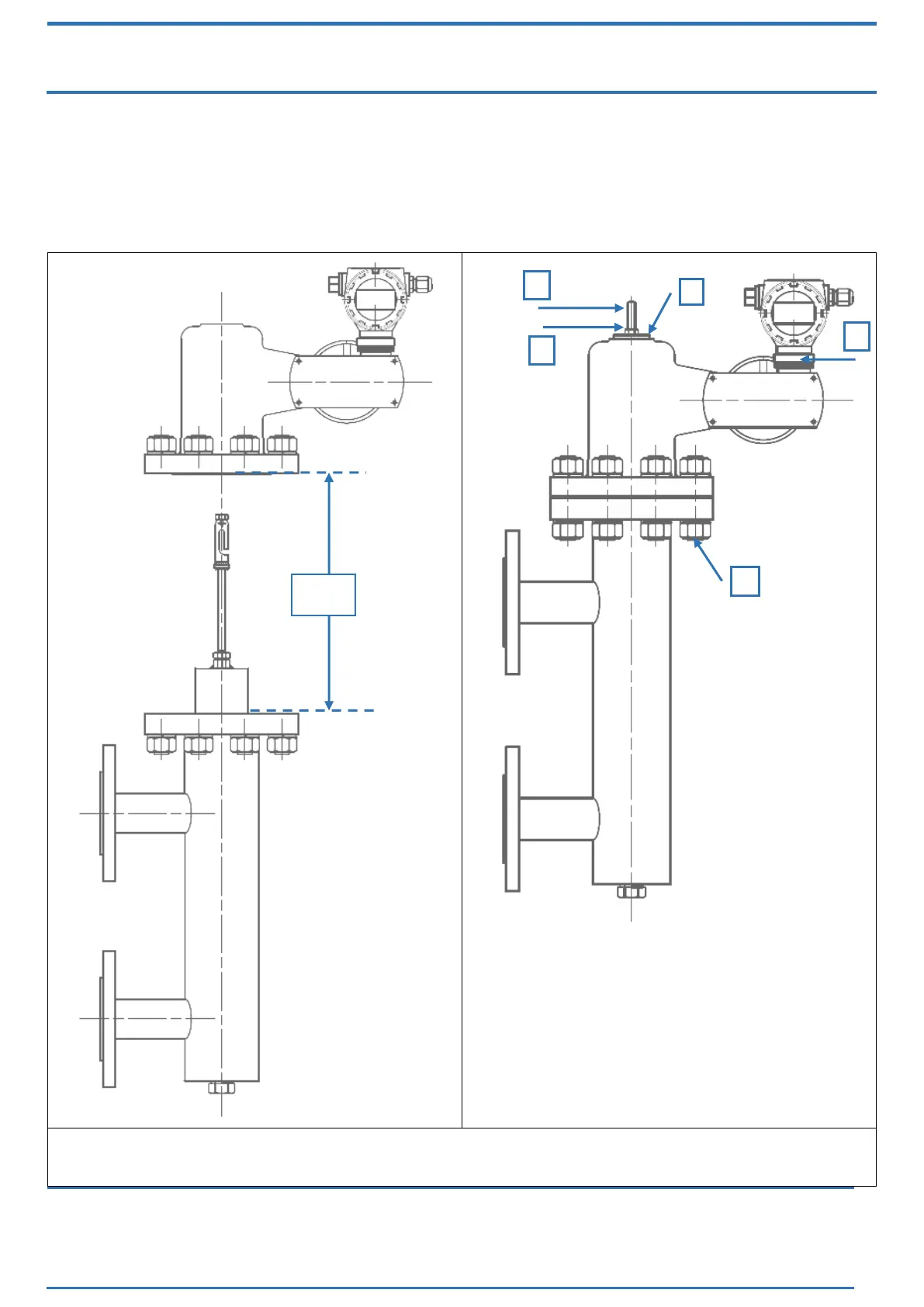

Figure 24: displacer substitution – Step 2
G
F
D
C
A
//
