Step 2 (Figure 25):
 remove the top locking device (A-C-D), then unhook the old displacer;
 insert a new displacer into the bottom part and gently hook the displacer to the top part;
 remounting (A-C-D), tighten the stud bolts (G), then remove (A-C-D) again;
 repositioning the ¾’’ NPT vent cap, then unscrew for seven turns the stop dowel F.

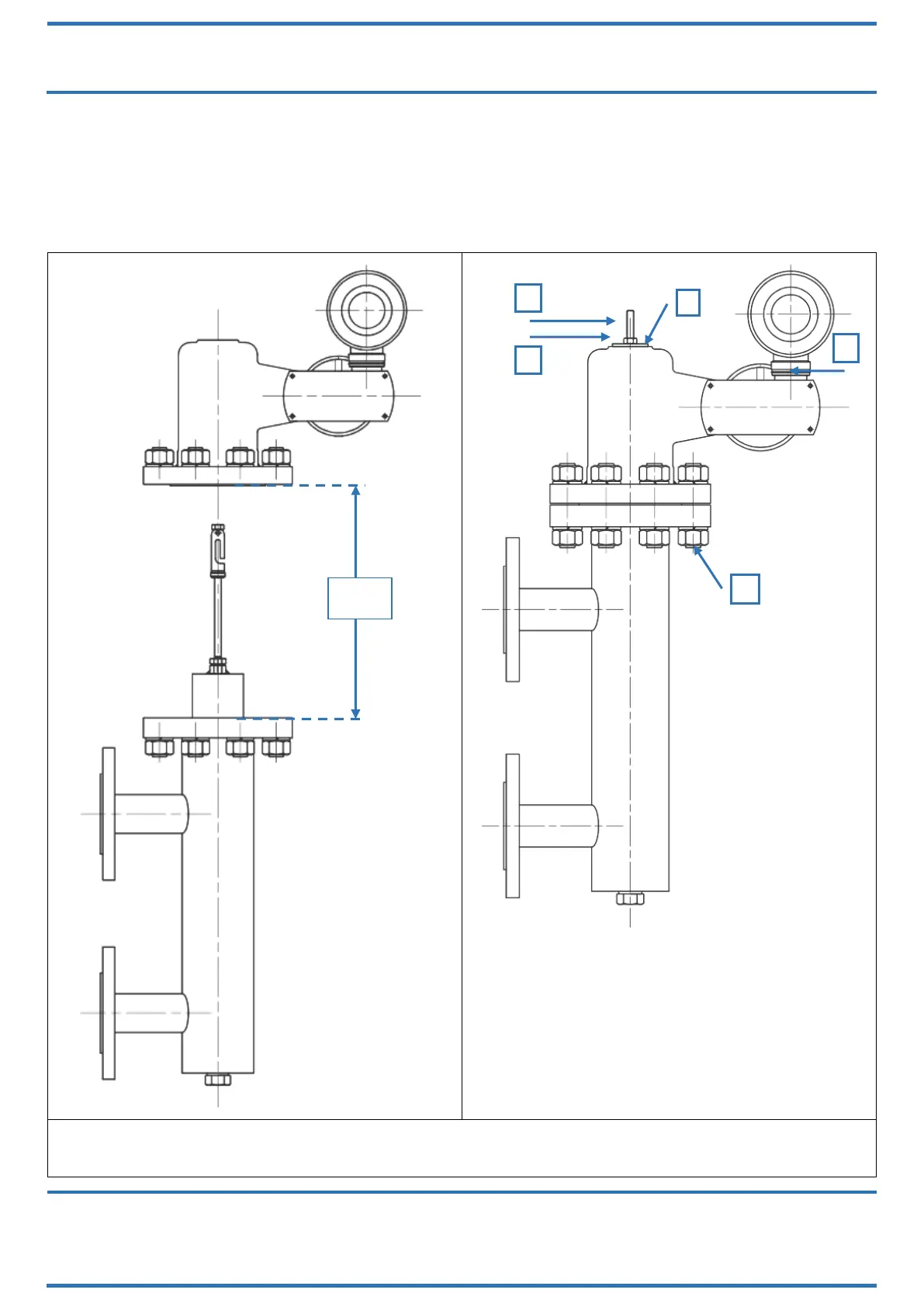

Figure 25: displacer substitution – Step 2
G
F
D
C
A
//
