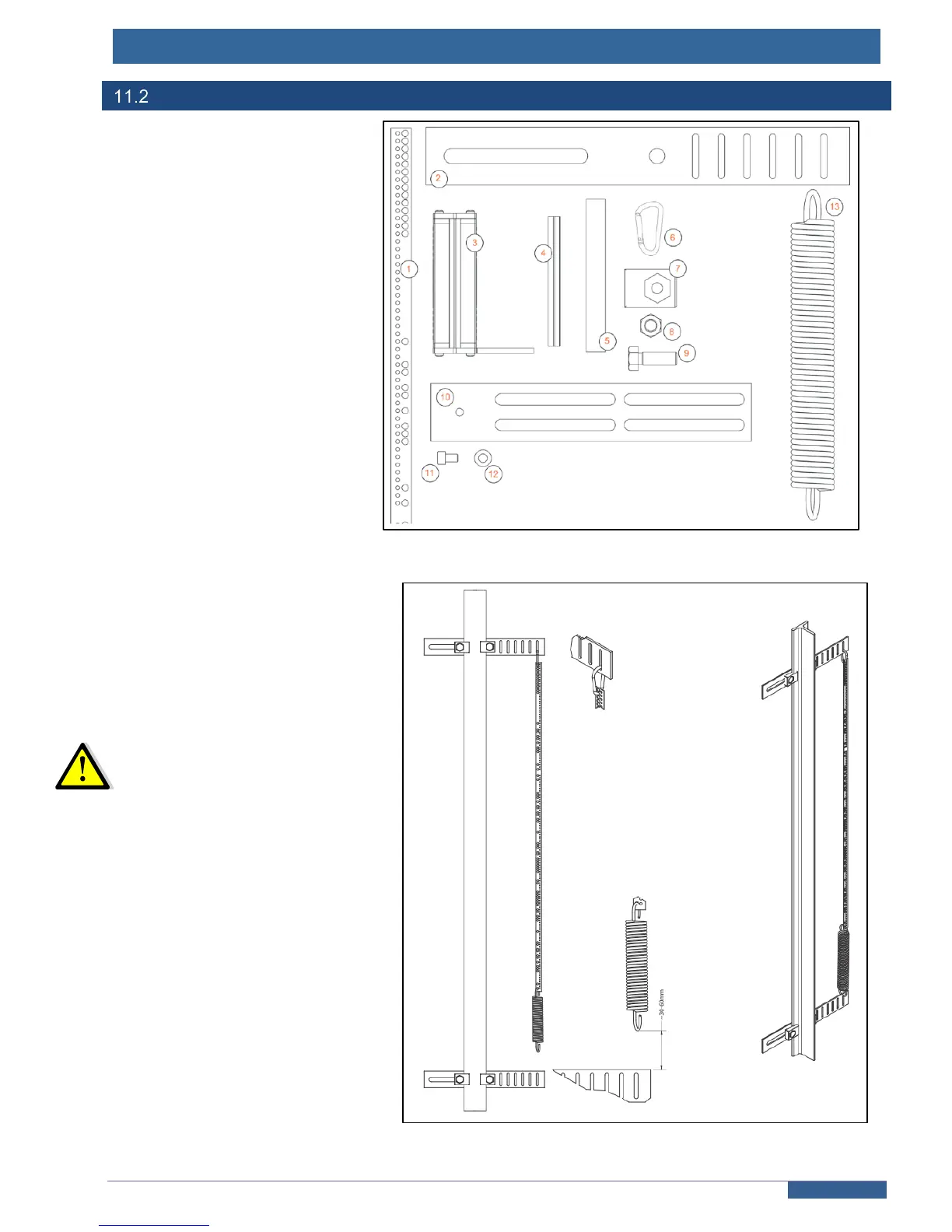

Mounting of the band and the K05SP reader
11.2.1 Content
1. 1 x band
2. 2 x suspension device
3. 1 x reader
4. 2 x sliding jaws (inside the reader (3))
5. 1 x aluminium reader (insidie the reader(3))
6. 1 x carabiner-hook
7. 4 x calamping plates
8. 4 x M10 screw nut
9. 4 x M10 screw
10. 1 x fastening angle
11. 1 x connecting screw
12. 1 x plain washer
13. 1 x spring
11.2.2 Mounting of the band
Use the clamping plates to fix the
suspension devices on the lift rails.
Hang the upper part of the band with the
carabiner-hook.
.
Also pay attention to the side-orientation
of the holes.You can find a marking which
shows the correct orientation on the reader
Unroll the band to the bottom while leaving
it in its packaging.
Hang now the lower part of the band with
the spring on the supension device (keep
3cm to 6 cm between spring and supension
device for tension).
