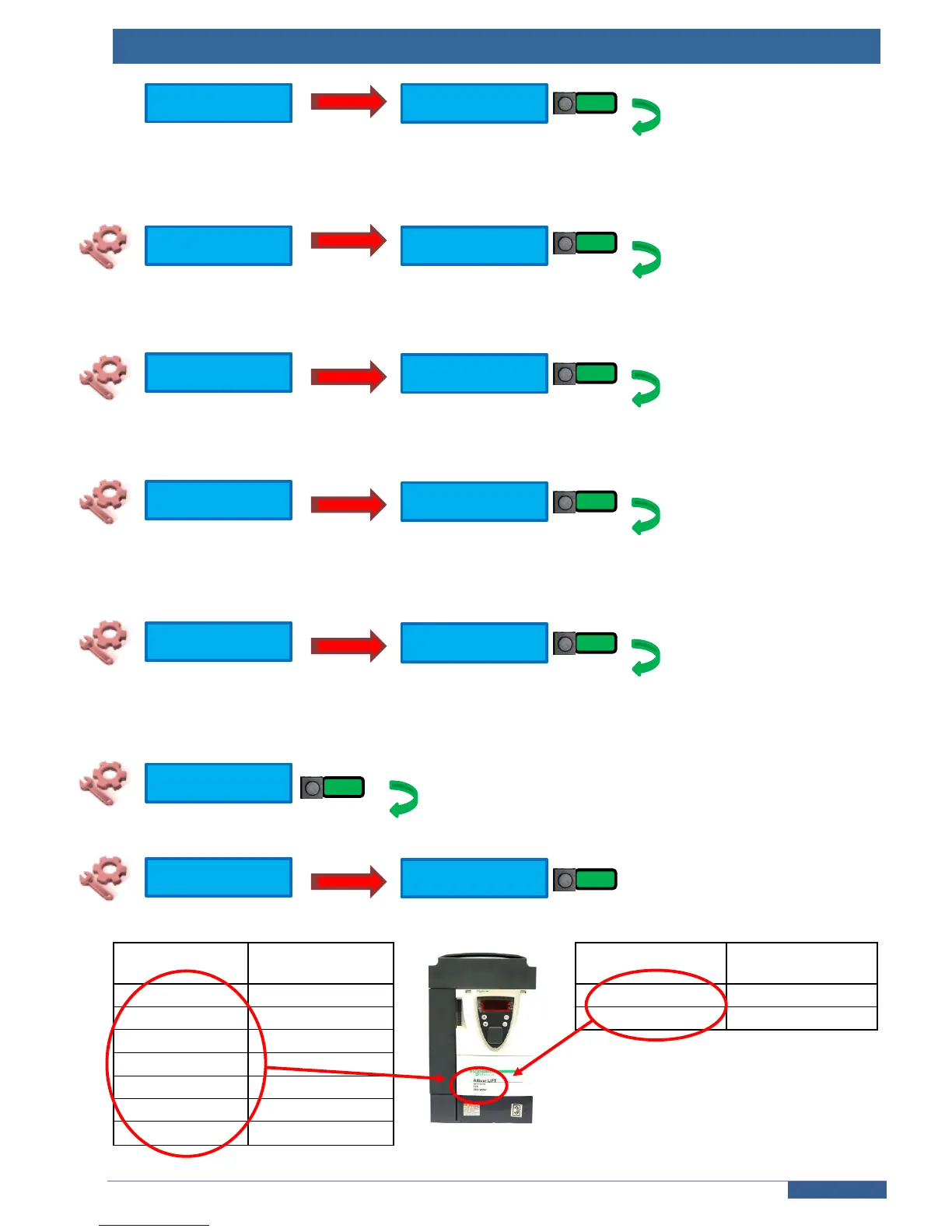

Set the Motor’s plate nominal voltage
Set the Motor’s plate nominal current.
See tables below according to the inverter model
See tables below according to the inverter model
Choose « ABC »
Set the Motor’s plate nominal frequency
400V Inverter
Thermal current
limitation
230Vac Inverter
Thermal current
limitation
ATVLIFT 10A
14,2A
ATVLIFT 27A
37,4A
ATVLIFT 14A
19,4A
ATVLIFT 33A
44,8A
ATVLIFT 17A
23,4A
ATVLIFT 27A
37,6A
ATVLIFT 33A
44,8A
ATVLIFT 48A
65A
ATVLIFT 37kW
107,4A
RATED POWER
4,00 kW
RATED POWER
x,xx kW
RATED VOLTAGE
380 V
RATED VOLTAGE
xxx V
RATED CURRENT
10,0 A
RATED CURRENT
XX,x A
THERM.CURRENT
15,0 A
THERM.CURRENT
XX,x A
CURRENT LIMIT.
15,0 A
CURRENT LIMIT.
XX,x A
PHASE ROTATION
ABC
RATED FREQUENCY
50 ,0 Hz
RATED FREQUENCY
XX,x Hz
 -
 -
 -
 -
 -
 -
 -
