Operators manual MODEL 80XX Planter
page 70 of 173
Maintenance
Drawbar eye for hitch and Piton-Fix couplings

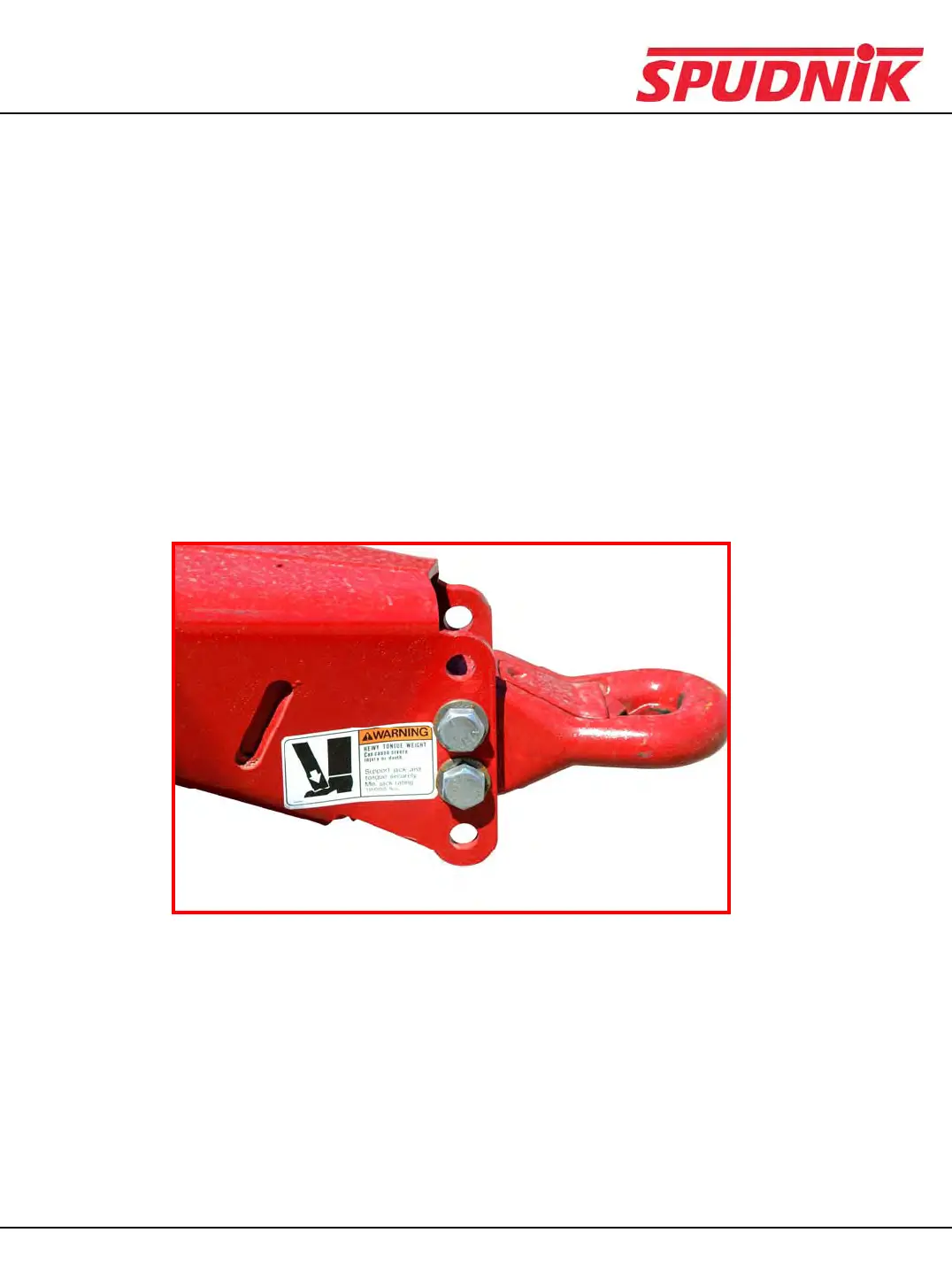

The screwed connection shown must be checked for tightness at the following
intervals:
-Prior to the first use under load,
-After the first use under load,
-After 50 operating hours,
-After 100 operating hours,
-Thereafter, every 200 operating hours.
Type of bolt: 1” UNC
No. of bolt: 2
Tightening torque: 250 ft lb
