Caliper Brake Pad Removal
Caliper Brake Pad Removal

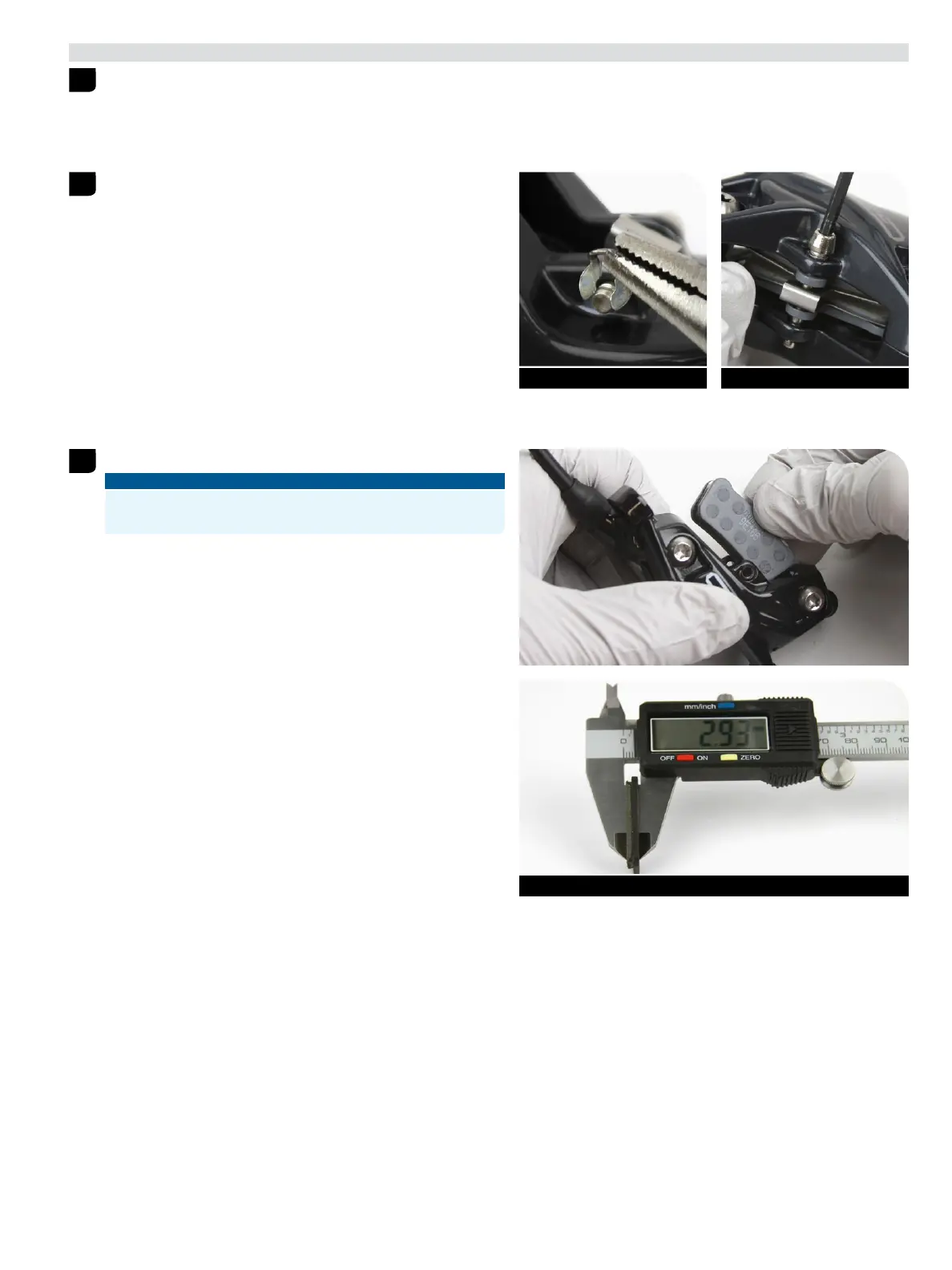

Remove the brake caliper from the fork or frame.Remove the brake caliper from the fork or frame.
Remove the caliper mounting bracket and hardware from the caliper Remove the caliper mounting bracket and hardware from the caliper
then set them aside in the order that they were removed.then set them aside in the order that they were removed.
Use needle nose pliers to remove the E-clip from the pad retention Use needle nose pliers to remove the E-clip from the pad retention
bolt. bolt.
Remove the pad retention bolt from the caliper.Remove the pad retention bolt from the caliper.
Remove the brake pads and pad h-spring from the caliper.Remove the brake pads and pad h-spring from the caliper.
NOTICE
Brake pads must be replaced if the total thickness of the backing
plate and pad friction material is less than 3 mm.
1
2
Needle nose pliers 2.5 mm
3
Digital Caliper

SRAM G2 RS Specifications

General

Brake Type	Hydraulic Disc
Lever Material	Aluminum
Caliper Design	2-Piston
Brake Pad Type	Organic
Reach Adjust	Yes
Rotor Size Compatibility	140mm, 160mm, 180mm, 200mm
