SRAM G2 RS User Manual

24

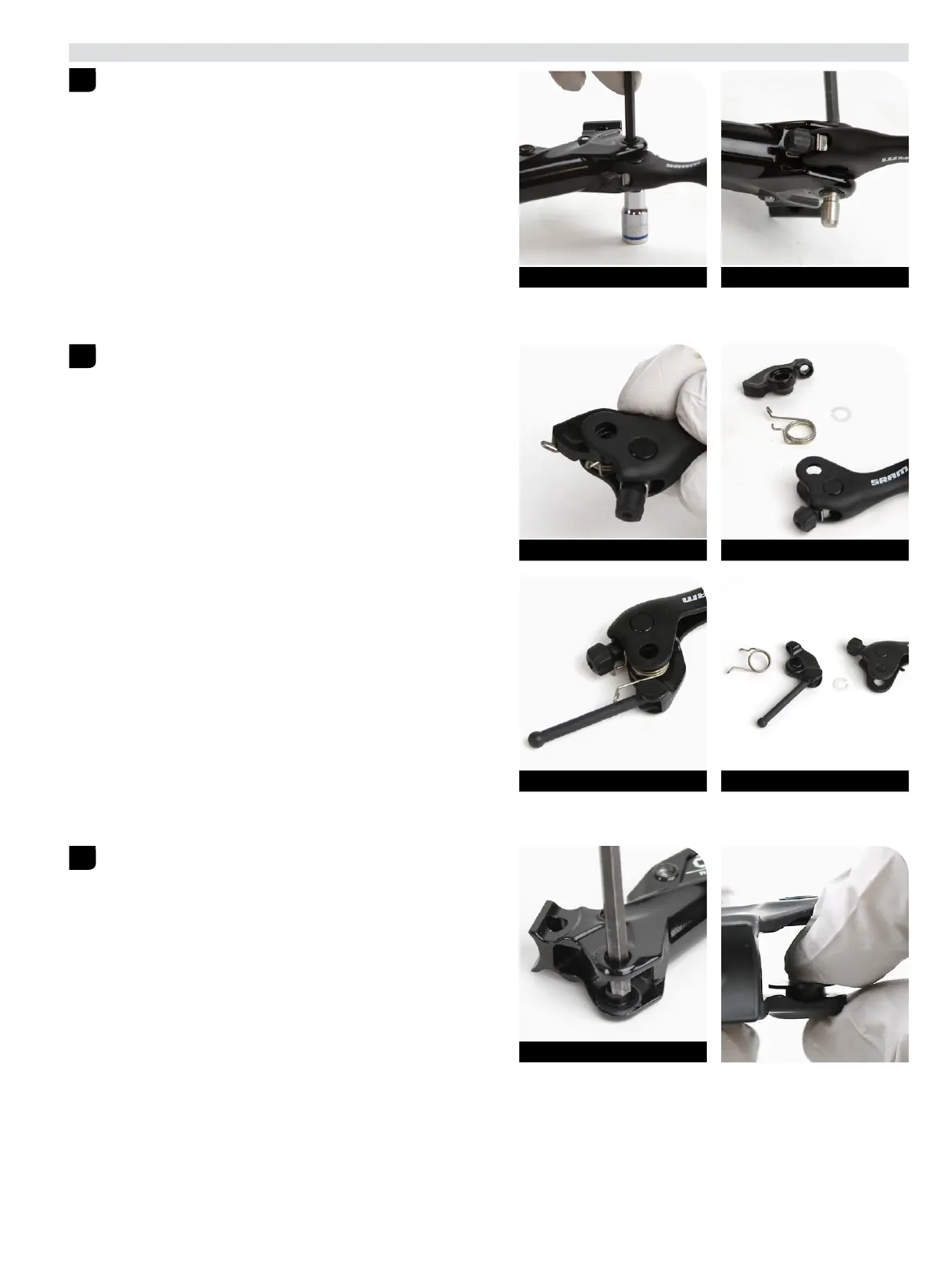

Lever Blade Removal
Lever Blade Removal
Place the lever pivot on top of a 6 mm socket. Tap a 4 mm hex wrench Place the lever pivot on top of a 6 mm socket. Tap a 4 mm hex wrench
with a hammer to remove the pivot pin. with a hammer to remove the pivot pin.
Remove the lever blade.Remove the lever blade.
The lever assembly will separate into four pieces when removed from The lever assembly will separate into four pieces when removed from
the lever body: SwingLink cam, lever bias spring, main pivot clip, and the lever body: SwingLink cam, lever bias spring, main pivot clip, and
blade assembly. blade assembly.
Remove the pivot bushings. Clean the bushings and install them into Remove the pivot bushings. Clean the bushings and install them into
the lever body.the lever body.
1
4 mm 6 mm socket 4 mm
2
G2 RS G2 RS
G2 R G2 R
3
6 mm

SRAM G2 RS Specifications

General

Brake Type	Hydraulic Disc
Lever Material	Aluminum
Caliper Design	2-Piston
Brake Pad Type	Organic
Reach Adjust	Yes
Rotor Size Compatibility	140mm, 160mm, 180mm, 200mm
