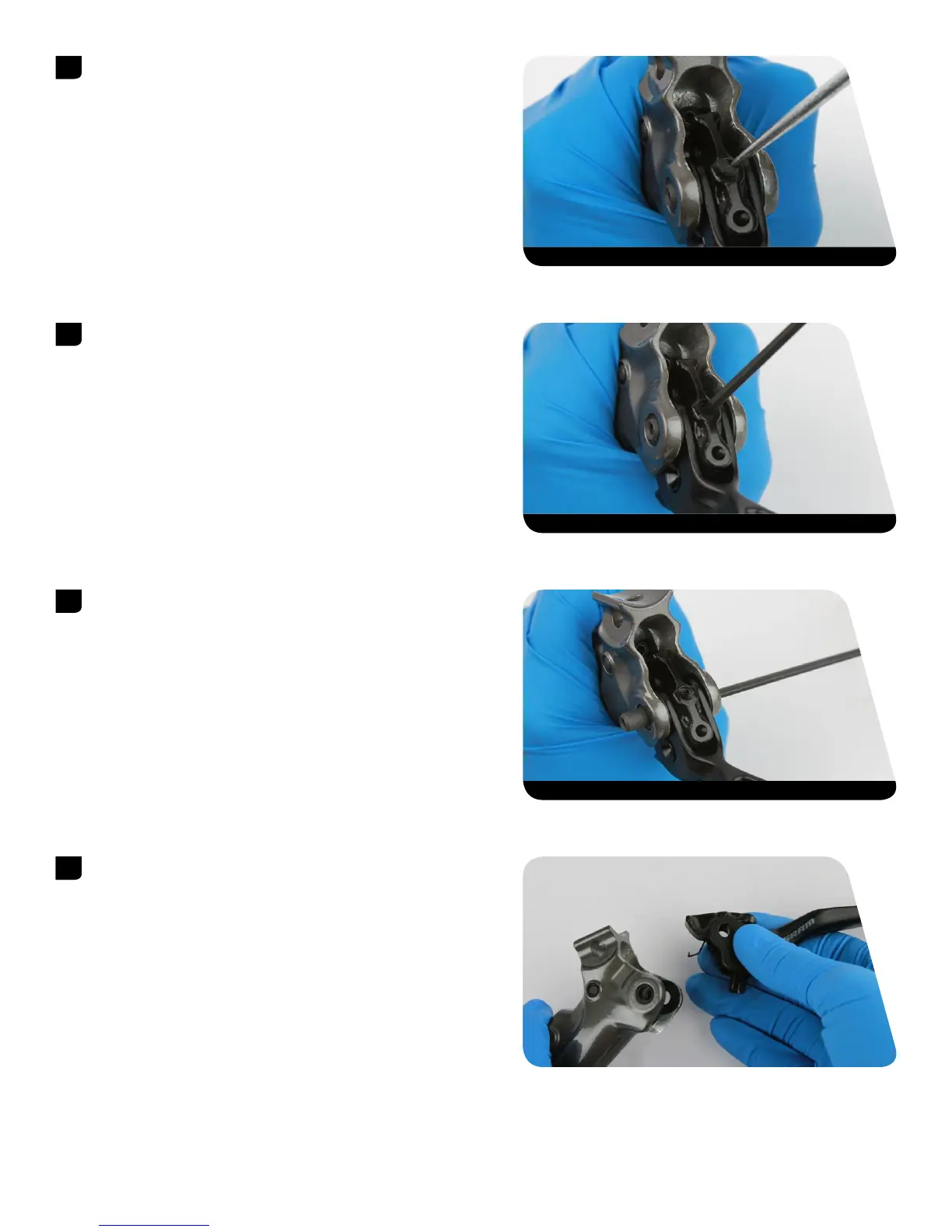

11Lever Blade Removal
Use a pick to remove the binder plug.
Use a T8 TORX® wrench to remove the pinch bolt.
Use the T8 TORX® wrench to push out the pivot pin.
Remove the lever blade from the lever body.
The lever blade has four pieces, the lever blade, the cam/push rod
assembly, a washer, and the lever return spring. To hold all pieces
together you may reinstall the lever pivot pin and gently set aside.
Pick 15 N•m (133 in-lb) 22 mm
9
T8 TORX wrench 15 N•m (133 in-lb) 22 mm
10
11
T8 TORX wrench 15 N•m (133 in-lb) 22 mm
12 13
