SRAM Guide R User Manual

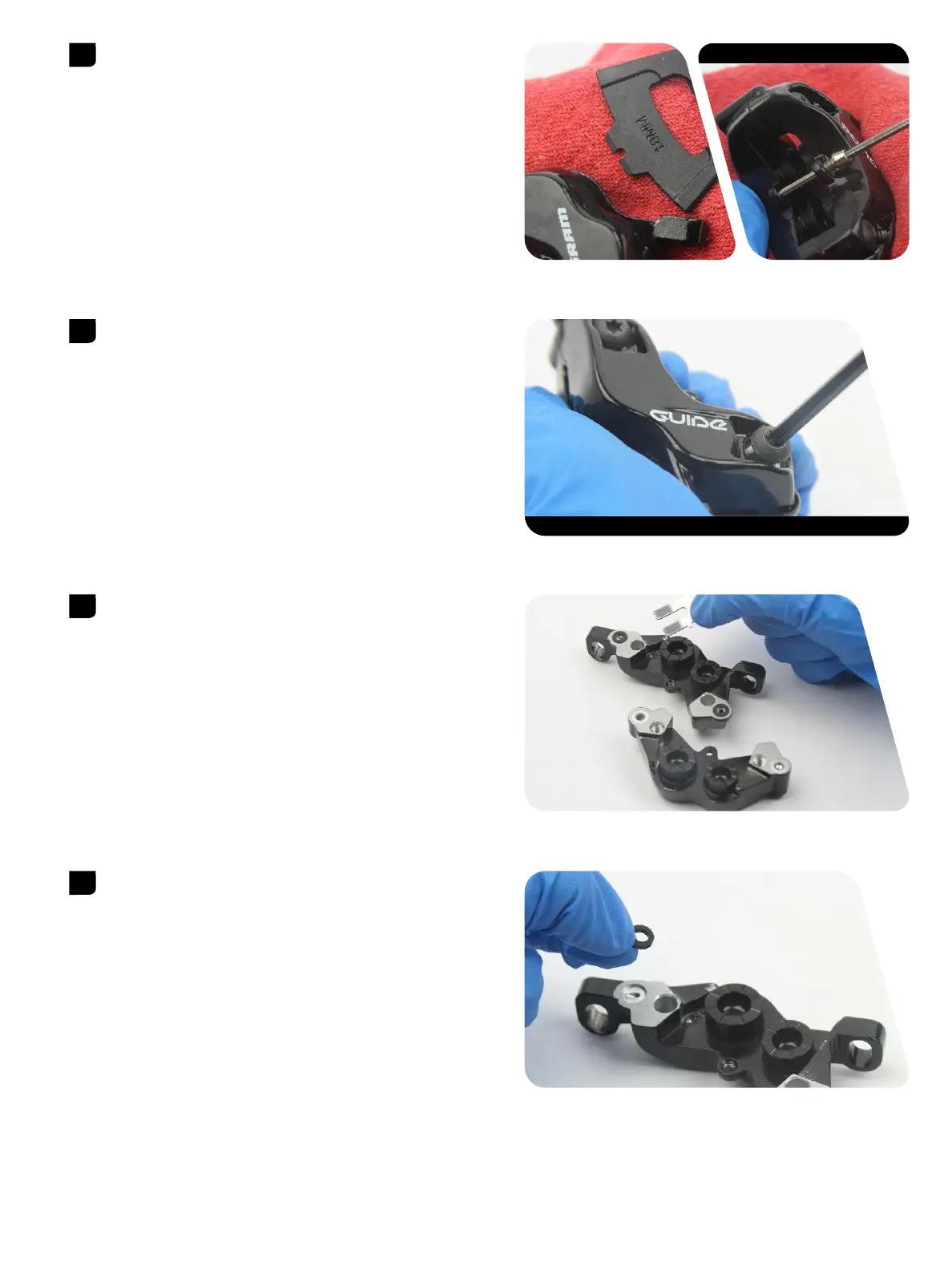

11Caliper Piston Removal
Remove the Guide™ pad spreader.
Remove the pad retention bolt.
Remove each caliper body bolt.
Separate the caliper body halves.
Set the heat shield aside.
Remove the caliper o-ring from the outboard side of the caliper.
4
2.5 mm hex wrench QR
5
T25 TORX® wrench Rubber-tipped blow gun chuck nozzle 22 mm
6
7

SRAM Guide R Specifications

General

Brake Type	Hydraulic Disc
Lever Material	Aluminum
Caliper Design	2-piece
Fluid Type	DOT 5.1
Pad Material	Organic
Caliper Material	Aluminum
Piston Count	4
Rotor Size Compatibility	140mm, 160mm, 180mm, 200mm
Rotor Compatibility	CenterLine
Reach Adjust	Yes
