SRAM Guide R User Manual

9Caliper Brake Pad Removal

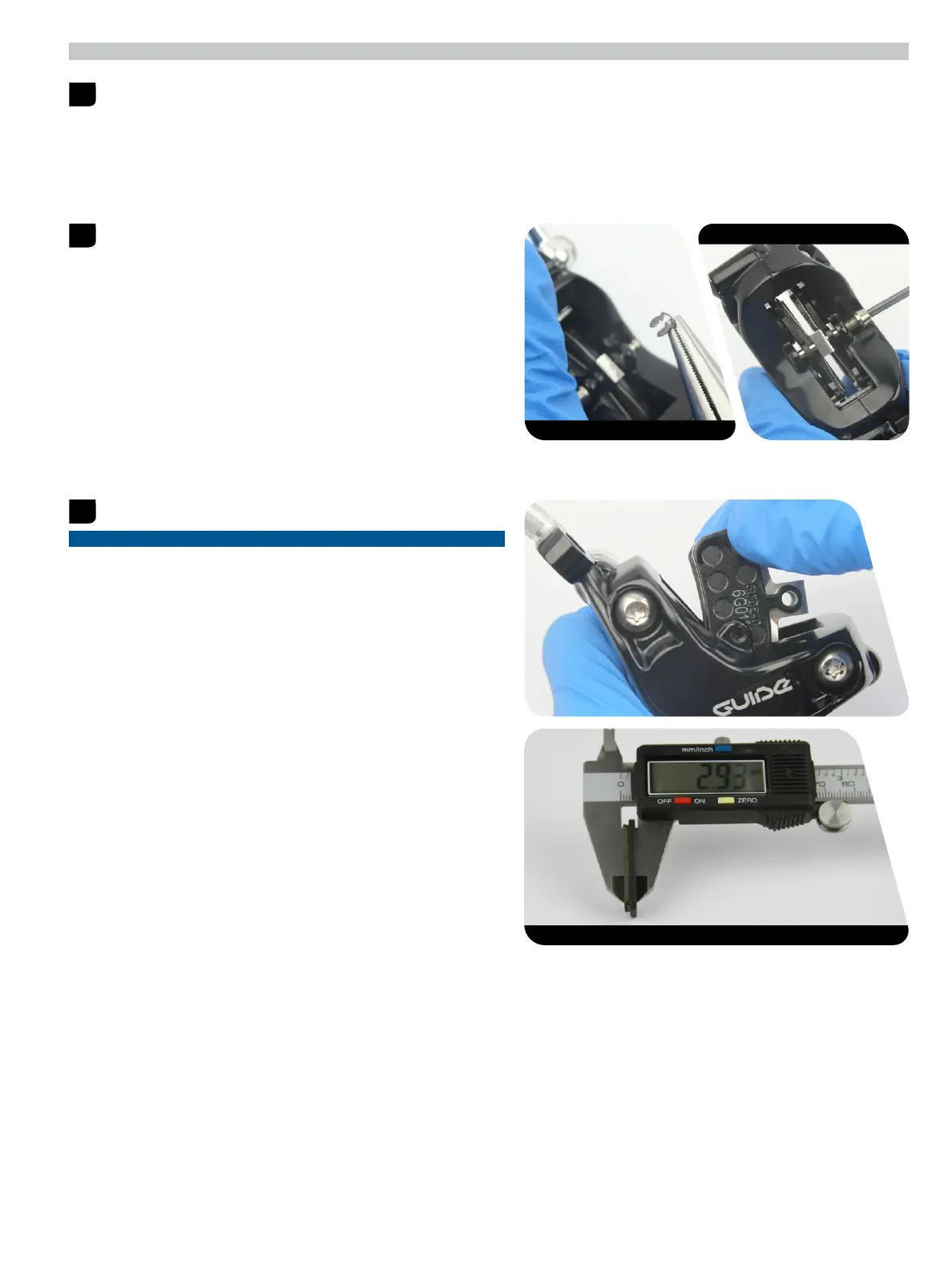

Caliper Brake Pad Removal
Use a T25 TORX® wrench to remove the brake caliper from the fork or
frame.
Remove the caliper mounting bracket and hardware from the caliper
then set them aside in the order that they were removed.
Remove the E-clip from the pad retention bolt.
Remove the pad retention bolt from the caliper.
Remove the brake pads and pad H-spring from the caliper.
NOTICE
Brake pads must be replaced if the total thickness of the backing plate and
pad friction material is less than 3 mm.
1
2
Needle nose pliers 20 mm or 15 mm Thru Axle
2.5 mm hex wrench QR
3
Digital Caliper 2.7-3.2 N•m (24-28 in-lb) 22 mm

SRAM Guide R Specifications

General

Brake Type	Hydraulic Disc
Lever Material	Aluminum
Caliper Design	2-piece
Fluid Type	DOT 5.1
Pad Material	Organic
Caliper Material	Aluminum
Piston Count	4
Rotor Size Compatibility	140mm, 160mm, 180mm, 200mm
Rotor Compatibility	CenterLine
Reach Adjust	Yes
