SRAM Guide R User Manual

10Caliper Piston Removal
Caliper Piston Removal
NOTICE
DOT brake fluid will damage painted surfaces. If any fluid comes in contact with a painted surface (e.g your frame) or printing on the brakes, wipe it off
immediately and clean it with isopropyl alcohol or water. Damage to painted and/or printed surfaces by DOT brake fluid is not covered under warranty.

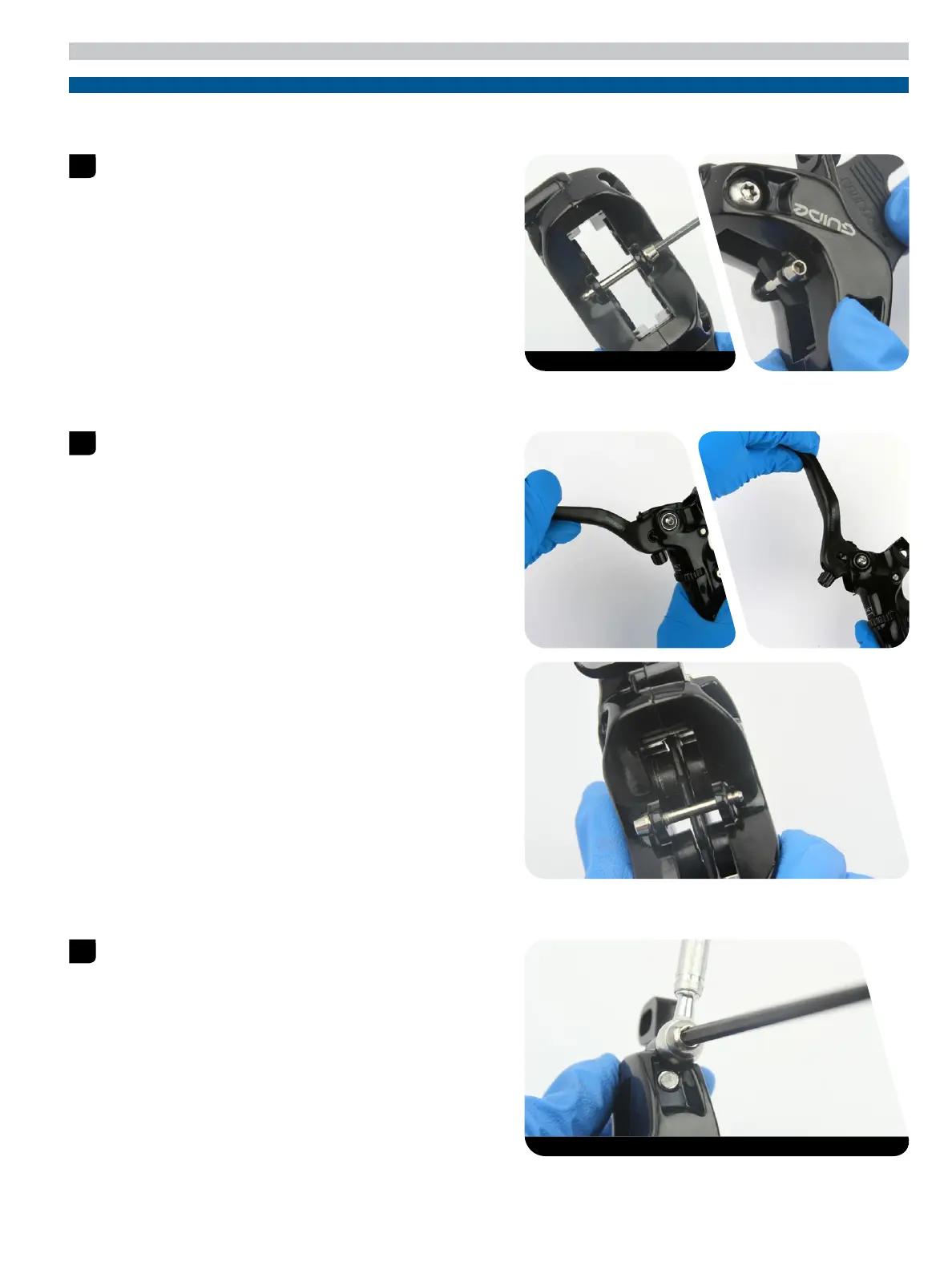

Install the pad retention bolt.
Insert the Guide™ pad spreader so that it snaps onto the pad retention
bolt.
Squeeze the brake lever to advance the pistons until they contact the
pad spreader.
Remove the banjo bolt.
1
2.5 mm hex wrench 20 mm or 15 mm Thru Axle
2
3
T25 TORX® wrench Rubber-tipped blow gun chuck nozzle 22 mm

SRAM Guide R Specifications

General

Brake Type	Hydraulic Disc
Lever Material	Aluminum
Caliper Design	2-piece
Fluid Type	DOT 5.1
Pad Material	Organic
Caliper Material	Aluminum
Piston Count	4
Rotor Size Compatibility	140mm, 160mm, 180mm, 200mm
Rotor Compatibility	CenterLine
Reach Adjust	Yes
