SRAM Guide R User Manual

24RS Lever Blade Installation
RS Lever Blade Installation

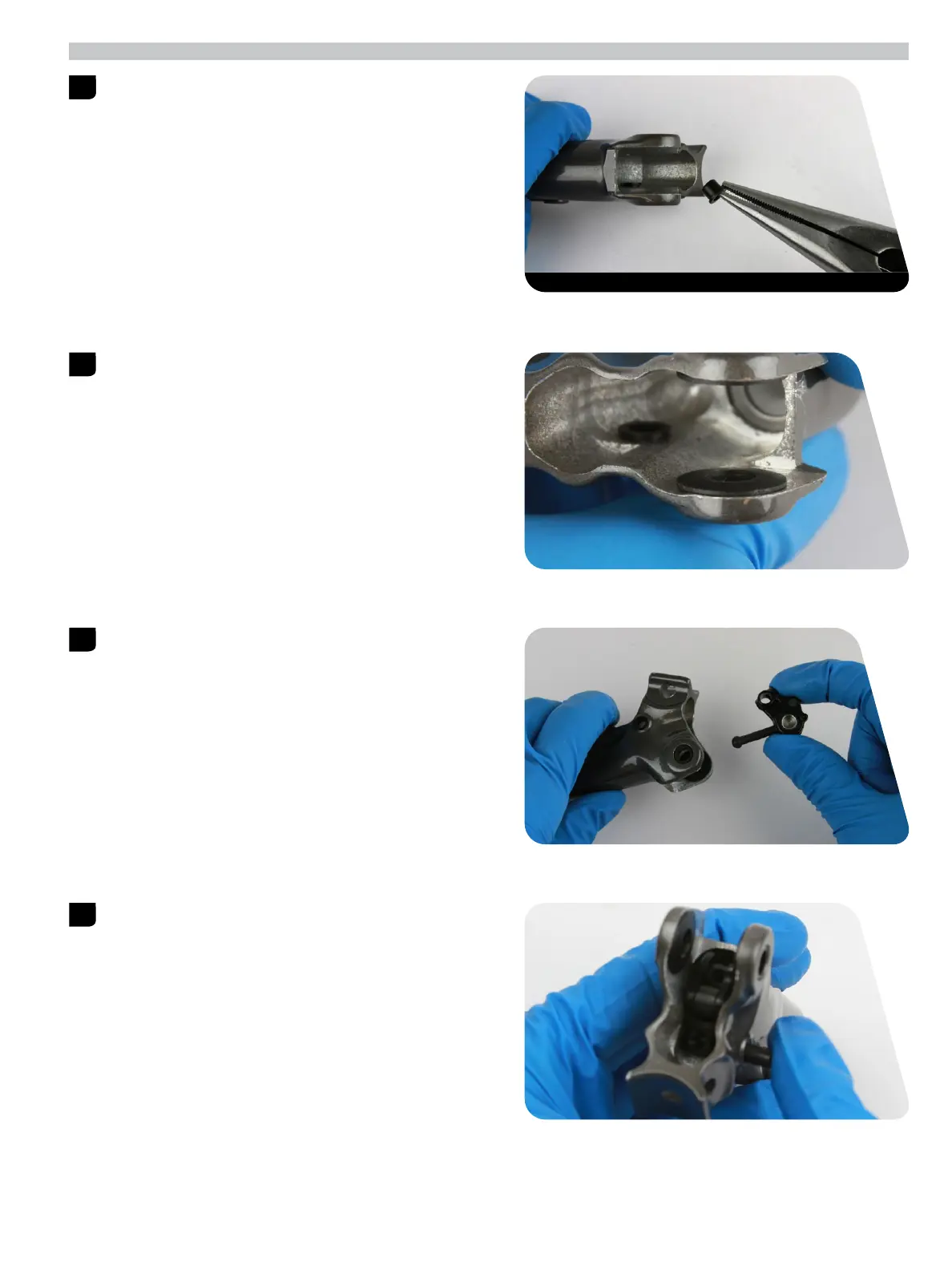

Use needle nose pliers to install the SwingLink™ bushings.
If the SwingLink bushings fall out easily, apply a small amount of DOT
grease to the bushings to help hold them in place.
Insert the lever blade bushings into both sides of the lever.
Place the pushrod into the piston.
Line up the hole in the SwingLink with the hole in the bushings, then
push the pivot pin into the hole until it stops.
1 1
Needle nose pliers 2.7-3.2 N•m (24-28 in-lb) 22 mm
2
3
4

SRAM Guide R Specifications

General

Brake Type	Hydraulic Disc
Lever Material	Aluminum
Caliper Design	2-piece
Fluid Type	DOT 5.1
Pad Material	Organic
Caliper Material	Aluminum
Piston Count	4
Rotor Size Compatibility	140mm, 160mm, 180mm, 200mm
Rotor Compatibility	CenterLine
Reach Adjust	Yes
