SRAM Guide R User Manual

16Guide RS Lever Exploded View
Lever Service
Parts and Tools Needed for Service
Parts
• Lever Internals Guide™ RS or Lever Internals Guide R/RE / DB5™ /
Code™ R
Safety and Protection Supplies
• Safety glasses
• Nitrile gloves
• Oil pan
• Clean, lint-free rag
Lubricants and Fluids
• Isopropyl alcohol
• Loctite® Threadlocker Blue 242®
• SRAM® High-Performance DOT 5.1 brake fluid. If SRAM fluid is not
available, only use DOT 5.1 or 4 brake fluid.
• SRAM or AVID® DOT grease. If SRAM or AVID DOT grease is not
available only use a DOT compatible grease.
Common Tools
• Pick with a 90 degree bent tip
• T8, T10, & T25 TORX® wrench
• T8 & T10 TORX bit socket
• 8 mm flare nut wrench
• 8 mm flare nut crowfoot wrench
• 2 mm & 4 mm hex wrench
• Needle nose pliers
• Torque wrench
• Internal snap ring pliers
Common Tools
• SRAM Hydraulic Hose Cutter

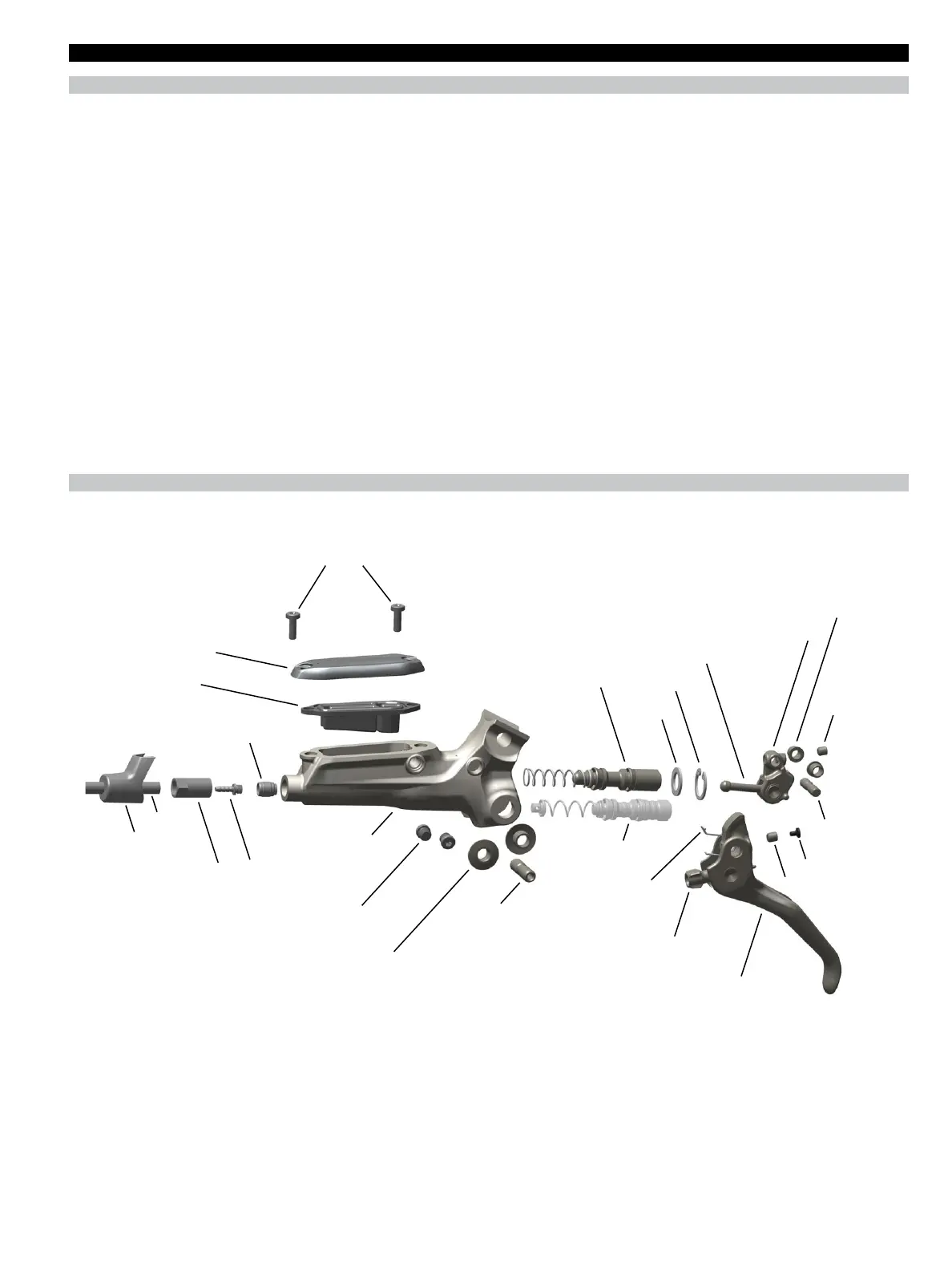

Guide RS Lever Exploded View
Compression nut
Lever blade bushings
Pivot pin
Binder plug
Pinch bolt
Lever blade
Lever body
Lever return
spring
Reach adjuster
Bleed port screws
Reservoir bolt
Reservoir cap
Bladder
Piston assembly
Piston assembly
(Stealth-a-majig™- OEM)
Washer
Snap ring
SwingLink push rod
SwingLink™
SwingLink
pivot
pinch bolt
SwingLink
pivot pin
SwingLink bushings
Hose boot
Hose
Compression fitting
Hose barb

SRAM Guide R Specifications

General

Brake Type	Hydraulic Disc
Lever Material	Aluminum
Caliper Design	2-piece
Fluid Type	DOT 5.1
Pad Material	Organic
Caliper Material	Aluminum
Piston Count	4
Rotor Size Compatibility	140mm, 160mm, 180mm, 200mm
Rotor Compatibility	CenterLine
Reach Adjust	Yes
