21Piston Assembly Removal

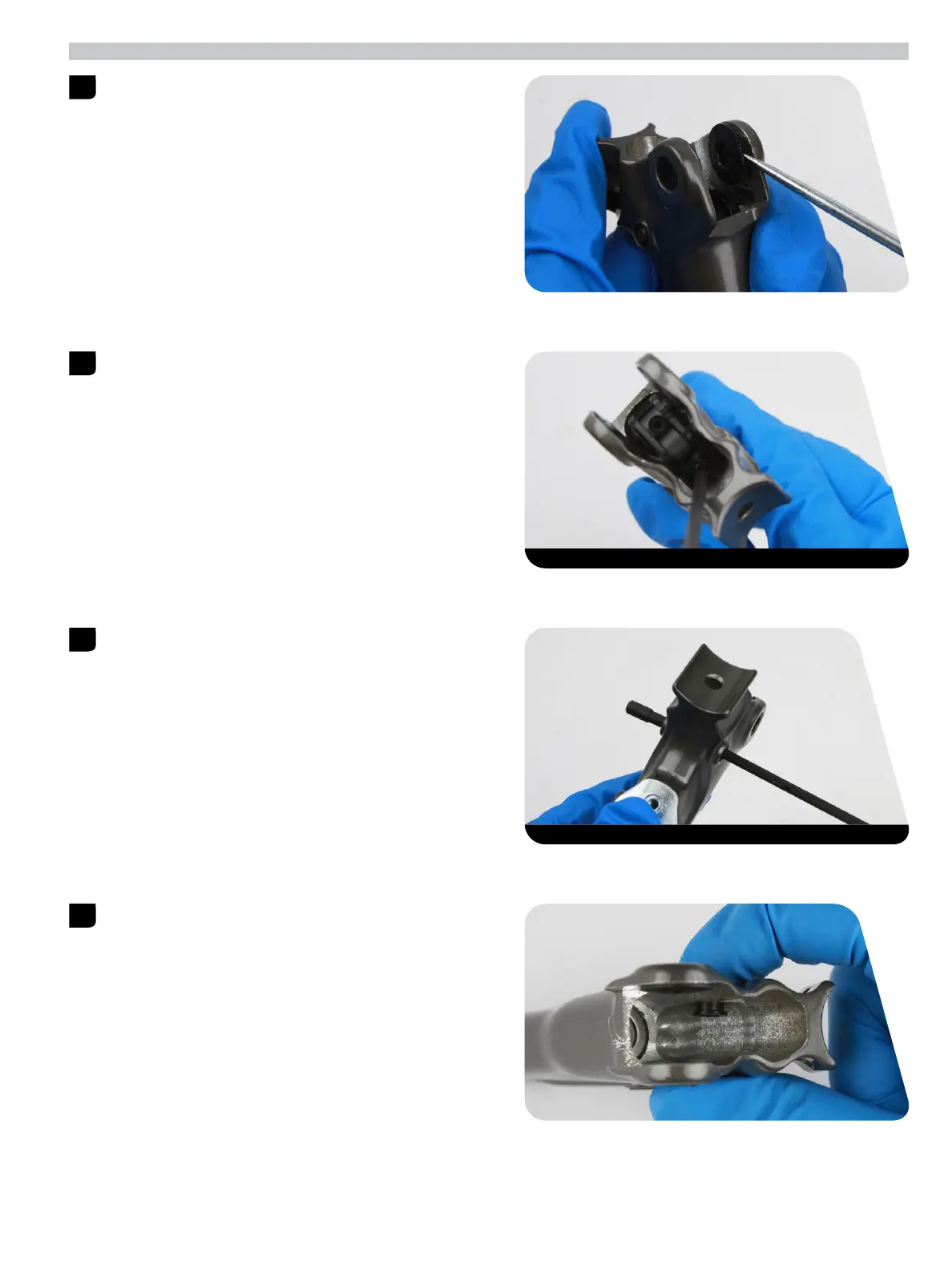

Piston Assembly Removal
Use a pick to remove the lever blade bushings from both sides of the
lever.
RS only: Use a T8 TORX® wrench to remove the SwingLink™ pivot
pinch bolt.
RS only: Use a T8 TORX wrench to push out the SwingLink pivot pin.
The SwingLink will fall out easily.
Remove the SwingLink bushings from both sides of the lever.
1
2
T8 TORX wrench 15 N•m (133 in-lb) 22 mm
3
T8 TORX wrench 15 N•m (133 in-lb) 22 mm
4

SRAM Guide R Specifications

General

Brake Type	Hydraulic Disc
Lever Material	Aluminum
Caliper Design	2-piece
Fluid Type	DOT 5.1
Pad Material	Organic
Caliper Material	Aluminum
Piston Count	4
Rotor Size Compatibility	140mm, 160mm, 180mm, 200mm
Rotor Compatibility	CenterLine
Reach Adjust	Yes
