SRAM Guide R User Manual

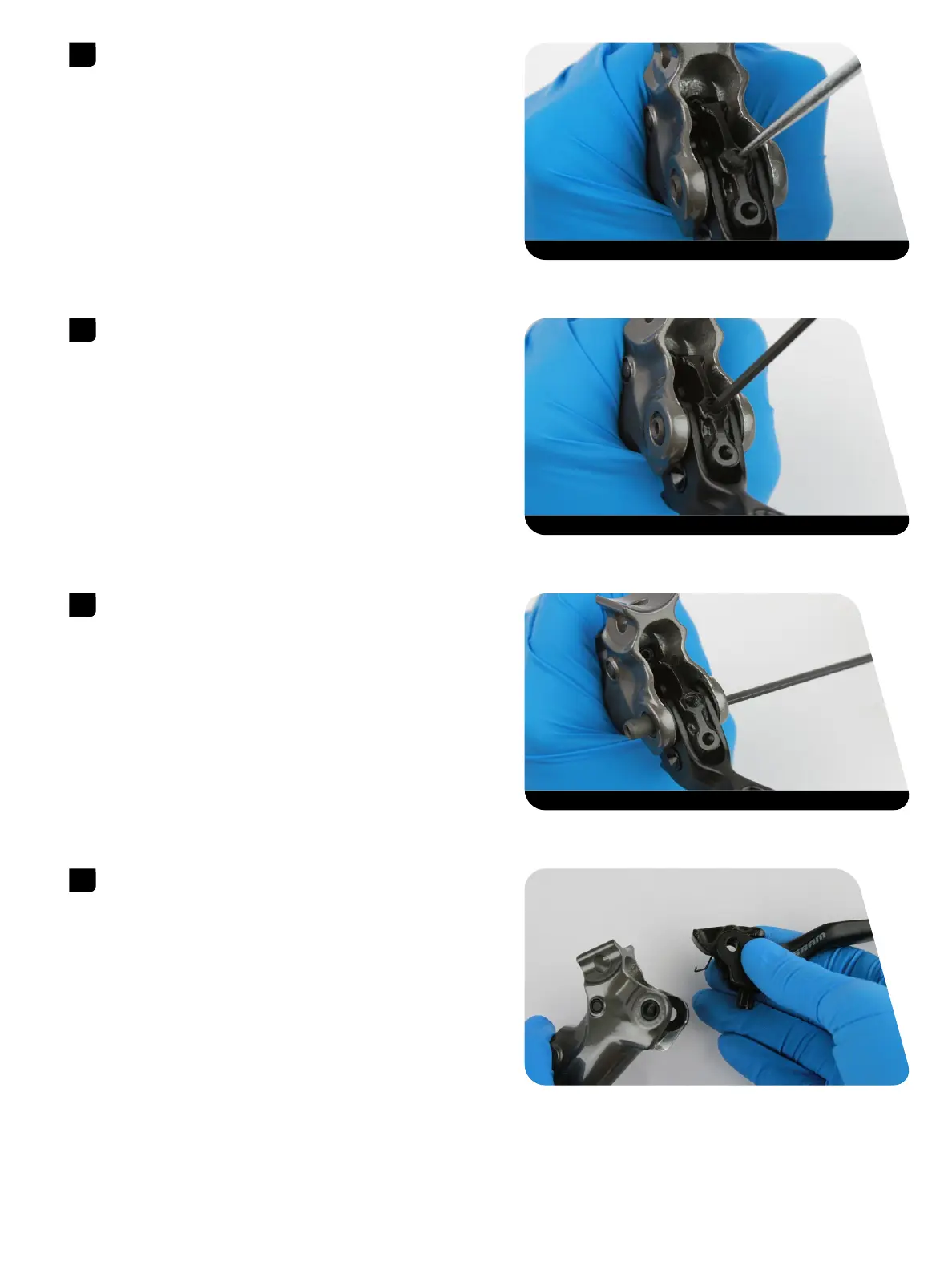

20Lever Blade Removal
Remove the binder plug.
Remove the pinch bolt.
Use the T8 TORX wrench to push out the pivot pin.
Remove the lever blade from the lever body.
The lever blade has four pieces, the lever blade, the cam/push rod
assembly, a washer, and the lever return spring. To hold all pieces
together you may reinstall the lever pivot pin and gently set aside.
Pick 15 N•m (133 in-lb) 22 mm
9
T8 TORX® wrench 15 N•m (133 in-lb) 22 mm
10
11
T8 TORX wrench 15 N•m (133 in-lb) 22 mm
12

SRAM Guide R Specifications

General

Brake Type	Hydraulic Disc
Lever Material	Aluminum
Caliper Design	2-piece
Fluid Type	DOT 5.1
Pad Material	Organic
Caliper Material	Aluminum
Piston Count	4
Rotor Size Compatibility	140mm, 160mm, 180mm, 200mm
Rotor Compatibility	CenterLine
Reach Adjust	Yes
