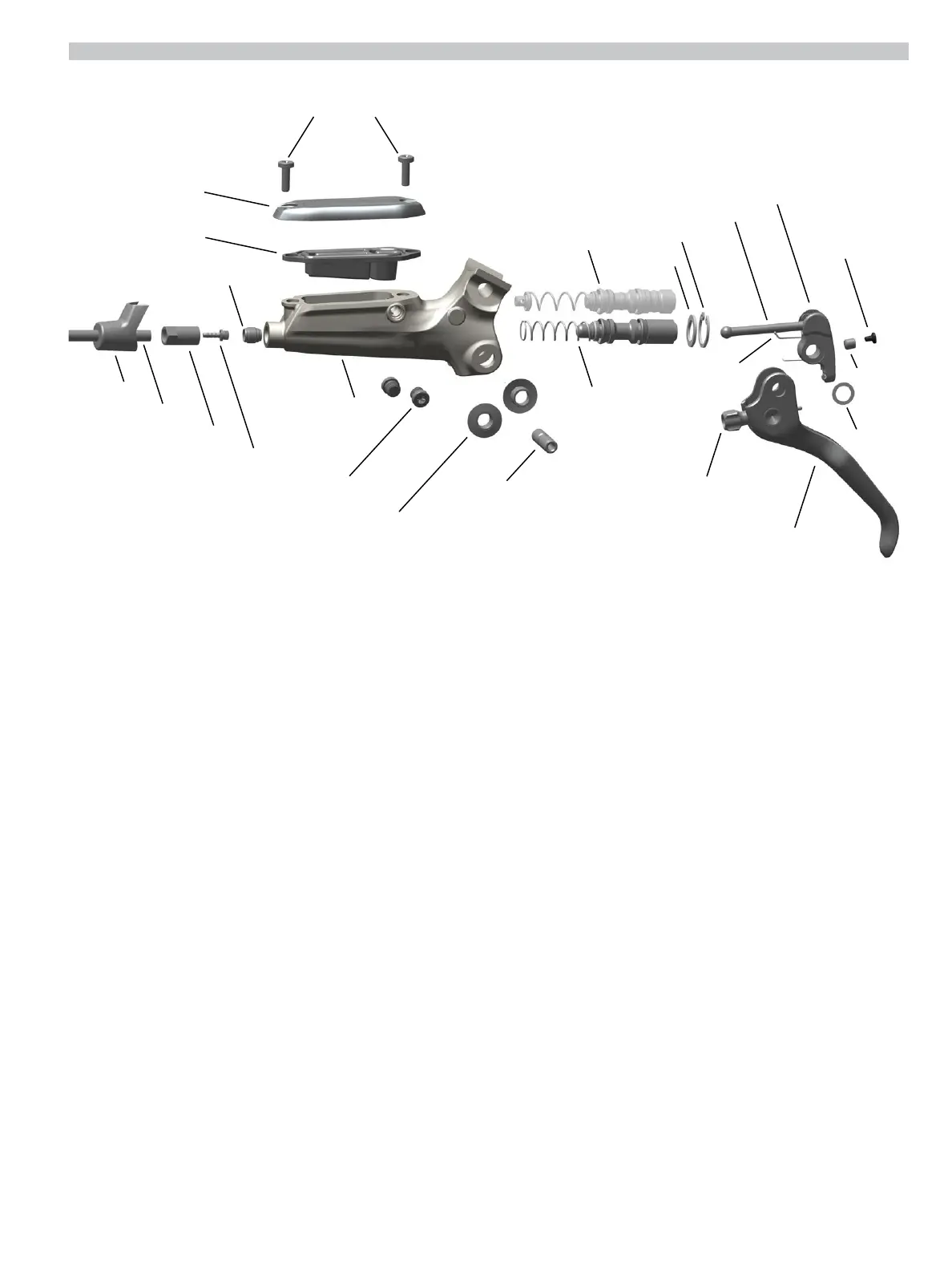

17Guide™ R Lever Exploded View
Guide™ R Lever Exploded View
Hose
Hose boot
Hose barb
Bleed port screws
Pivot pin
Piston assembly
Piston assembly
(Stealth-a-majig™- OEM)
Lever blade bushings
Washer
Snap ring
Binder plug
Bladder
Reservoir cap
Reservoir bolt
Lever blade
Lever body
Pinch bolt
Washer
Compression nut
Compression fitting
Lever return spring
Reach adjuster
Cam
Push rod
