25

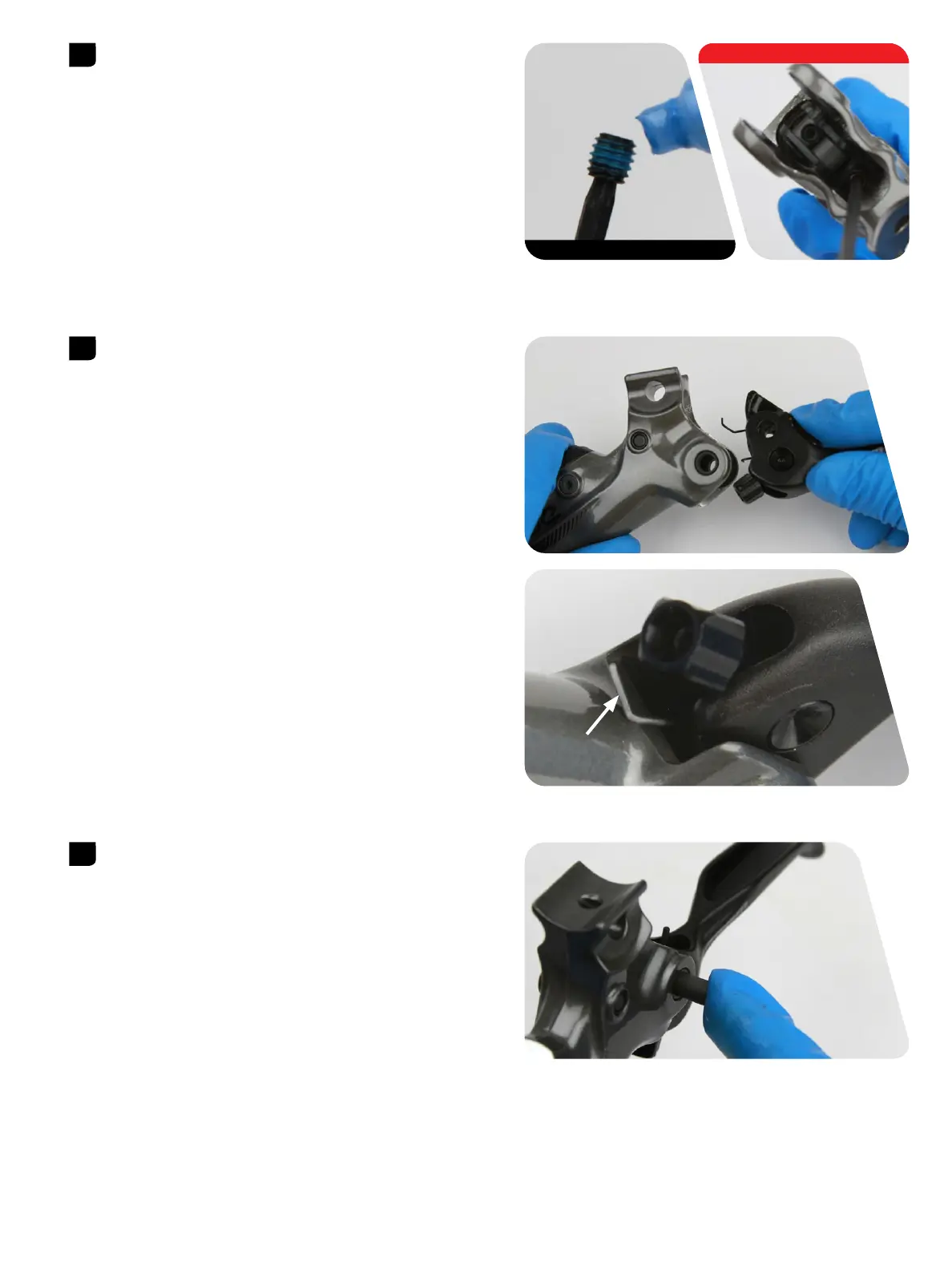

Apply a small amount of Loctite® Threadlocker Blue 242® onto the
threads of the SwingLink™ pivot pinch bolt.
Use a T8 TORX® wrench to thread the SwingLink pivot pinch bolt into
the SwingLink. Tighten the SwingLink pivot pinch bolt to
1.1-1.3 N·m (9-12 in-lbs).
Insert the lever blade assembly into the lever body, place the lever
return spring on the lever body.
Make sure the lever return spring is seated properly in the lever. The
outboard end of the spring must press against the lever blade, while
the inboard end of the spring must press against the lever body. If the
return spring is not seated properly, you will not be able to adjust the
reach of the lever blade. The reach adjuster must be seated in the cam
hole, if it is not set properly you will be unable to adjust your reach.
Line up the cam and lever blade with the holes in the lever body, then
press the pivot pin through the holes.
5
Loctite Threadlocker Blue 242 20 mm or 15 mm Thru Axle
1.1-1.3 Nm (10-12 in-lbs) QR
6
7
