SRAM Guide R User Manual

26RS Lever Blade Installation

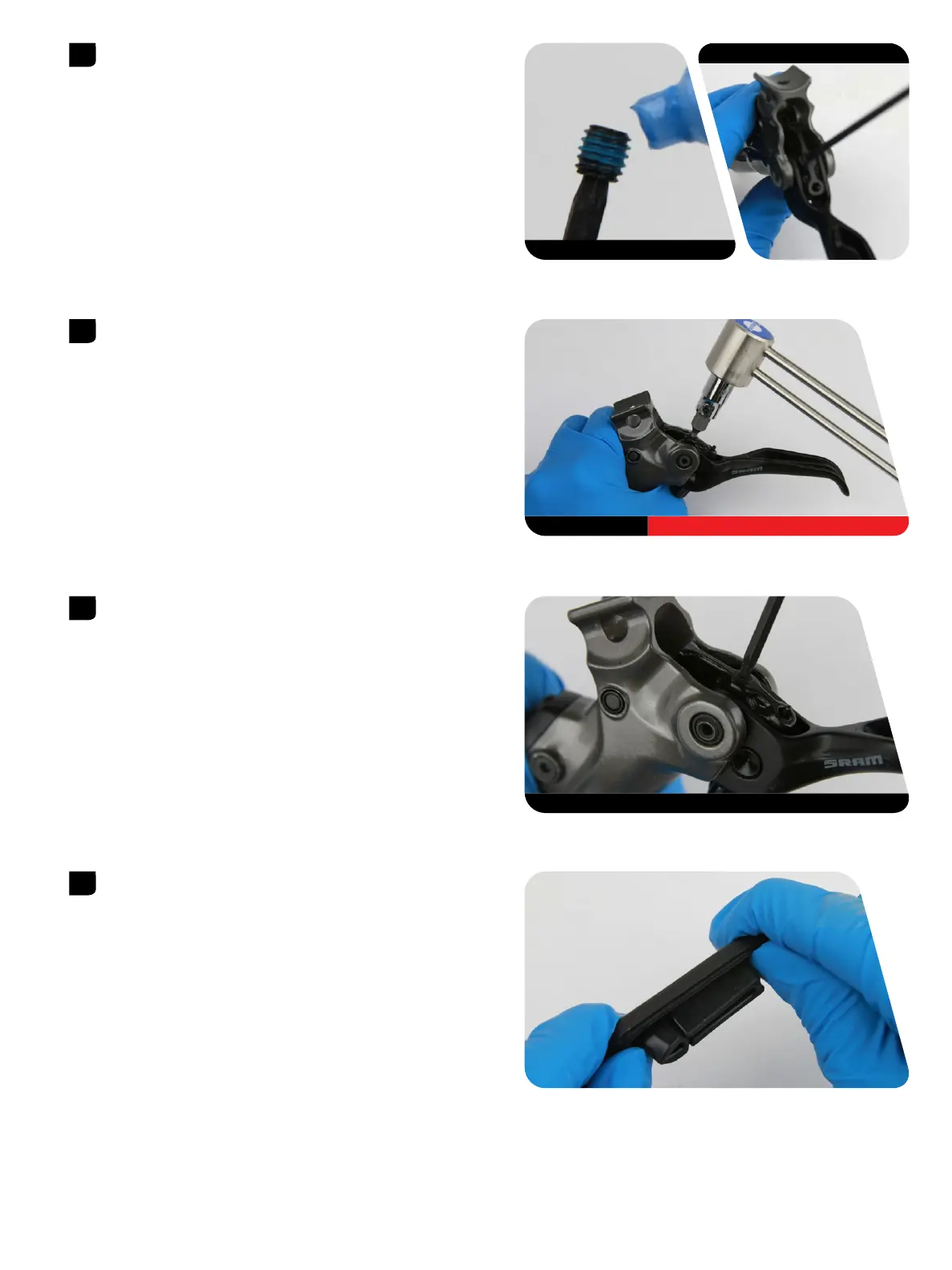

Apply a small amount of Loctite® Threadlocker Blue 242® onto the
pinch bolt.
Use a T8 TORX® wrench to thread the pinch bolt into the lever body.
Use a torque wrench and a T8 TORX bit socket to tighten the bolt to
1.1-1.3 N·m (9-12 in-lb).
Use a T8 TORX wrench to install a new binder bolt plug.
Press the bladder into the reservoir cap so that the bladder is properly
seated and flush with the reservoir cap.
8
Loctite Threadlocker Blue 242 20 mm or 15 mm Thru Axle
T8 TORX wrench QR
T8 TORX 1.1-1.3 N•m (10-12 in-lb) 22 mm
9
10
T8 TORX wrench 2.7-3.2 N•m (24-28 in-lb) 22 mm
11

SRAM Guide R Specifications

General

Brake Type	Hydraulic Disc
Lever Material	Aluminum
Caliper Design	2-piece
Fluid Type	DOT 5.1
Pad Material	Organic
Caliper Material	Aluminum
Piston Count	4
Rotor Size Compatibility	140mm, 160mm, 180mm, 200mm
Rotor Compatibility	CenterLine
Reach Adjust	Yes
