SRAM Guide R User Manual

27RS Lever Blade Installation

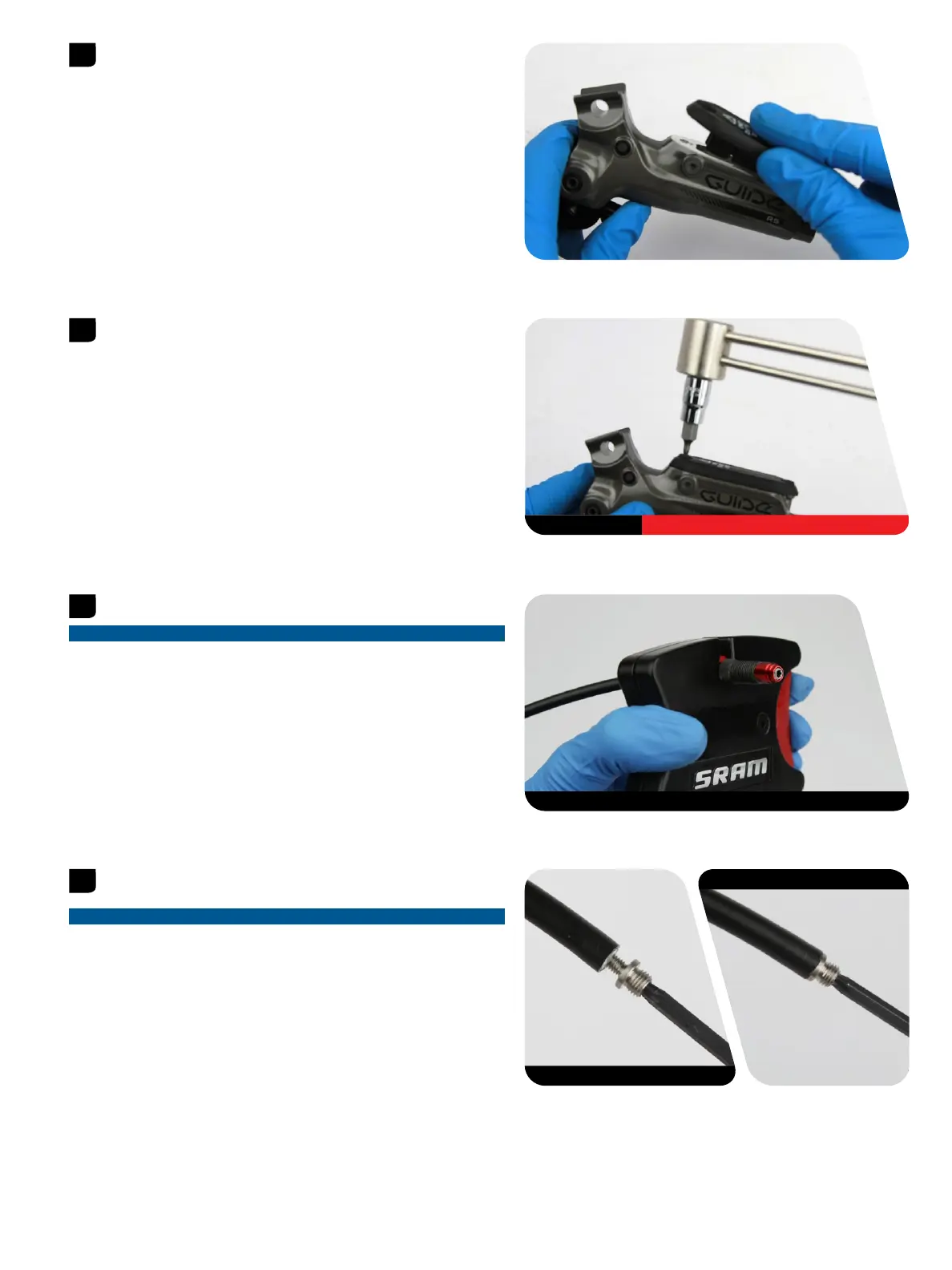

Insert the reservoir cap and bladder assembly onto the lever body.
Use a torque wrench with a T10 TORX® bit socket to tighten each
reservoir cap bolt to 1.1-1.3 N·m (9-12 in-lb).
Cut the hose to install a new barb and compression fitting.
NOTICE
You must install a new hose barb and compression fitting before recon-
necting the brake lever to the hose.
Apply DOT grease to the hose barb threads. Thread the hose barb into
the hose until it is flush with the end of the hose.
NOTICE
Do not overtighten the hose barb. Overtightening may cause damage
to the hose liner.
12
13
T10 TORX 1.1-1.3 N•m (10-12 in-lb) T10 TORX®
SRAM® Hydraulic Hose Cutter
14
15
T8 DOT Grease
T8

SRAM Guide R Specifications

General

Brake Type	Hydraulic Disc
Lever Material	Aluminum
Caliper Design	2-piece
Fluid Type	DOT 5.1
Pad Material	Organic
Caliper Material	Aluminum
Piston Count	4
Rotor Size Compatibility	140mm, 160mm, 180mm, 200mm
Rotor Compatibility	CenterLine
Reach Adjust	Yes
