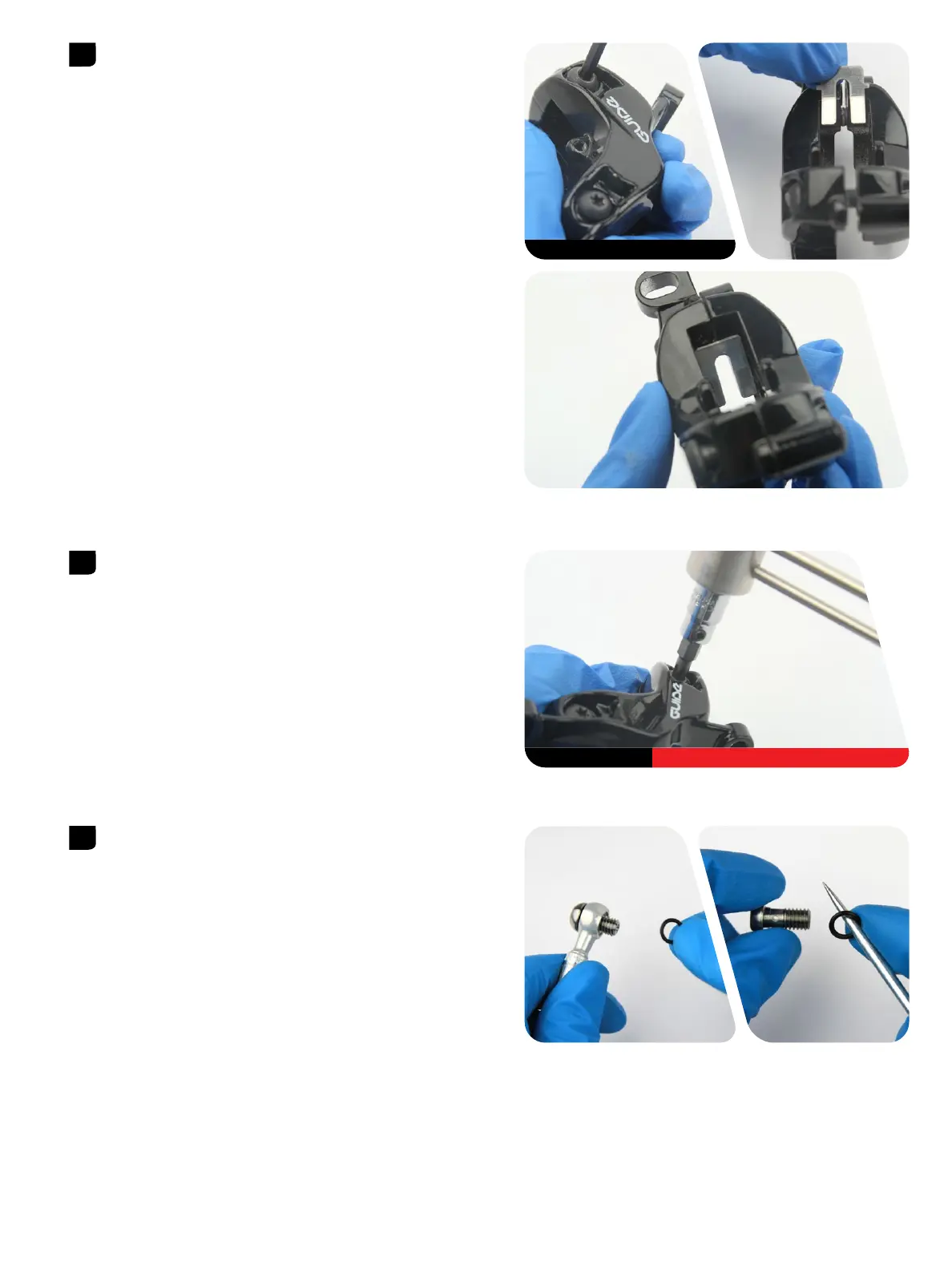

14Caliper Piston Installation

Align the caliper body halves then use a T25 TORX® wrench to thread

each body bolt into the caliper two full turns.

Install the heat shield.

Tighten each bolt to 9.8-11.8 N·m (87-104 in-lb).

Remove the o-rings from the banjo bolt and banjo ﬁtting.

Apply a small amount of SRAM® High-Performance DOT 5.1 brake ﬂuid

to the new o-rings and install them.

T25 TORX 20 mm or 15 mm Thru Axle

T25 TORX bit 9.8-11.8 N·m (87-104 in-lb) 22 mm
