SRAM Guide R User Manual

30R Lever Blade Installation

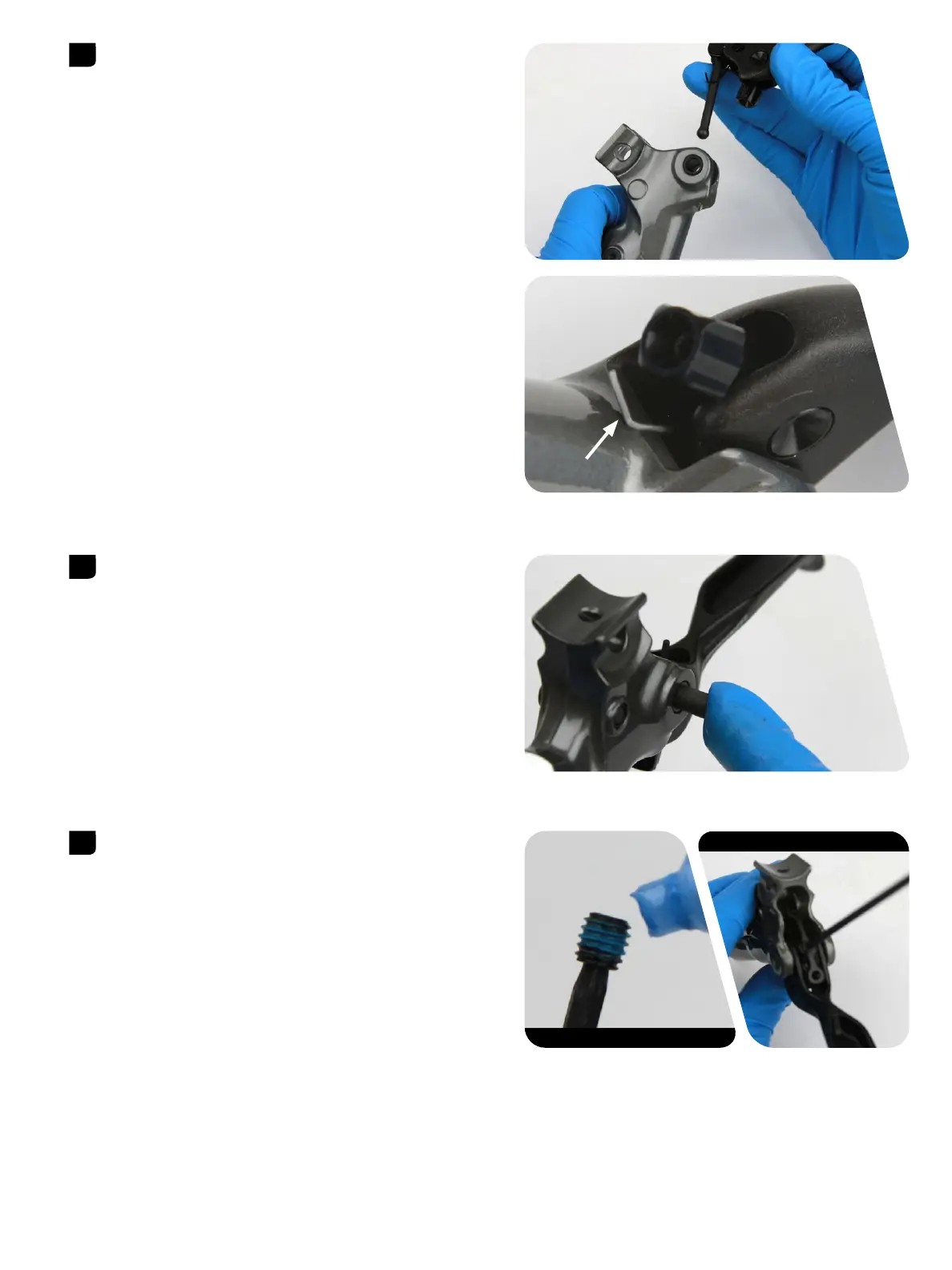

Insert the lever blade assembly into the lever body, placing the push
rod into the piston and lever return spring on the lever body.
Make sure the lever return spring is seated properly in the lever. The
outboard end of the spring must press against the lever blade, while
the inboard end of the spring must press against the lever body. If the
return spring is not seated properly, you will not be able to adjust the
reach of the lever blade.
Line up the cam and lever blade with the holes in the lever body, then
press the pivot pin through the holes.
Apply a small amount of Loctite® Threadlocker Blue 242® onto the
pinch bolt.
Use a T8 TORX® wrench to thread the pinch bolt into the lever body.
2
3
4
Loctite Threadlocker Blue 242 20 mm or 15 mm Thru Axle
T8 TORX wrench QR

SRAM Guide R Specifications

General

Brake Type	Hydraulic Disc
Lever Material	Aluminum
Caliper Design	2-piece
Fluid Type	DOT 5.1
Pad Material	Organic
Caliper Material	Aluminum
Piston Count	4
Rotor Size Compatibility	140mm, 160mm, 180mm, 200mm
Rotor Compatibility	CenterLine
Reach Adjust	Yes
