SRAM Guide RS User Manual

24

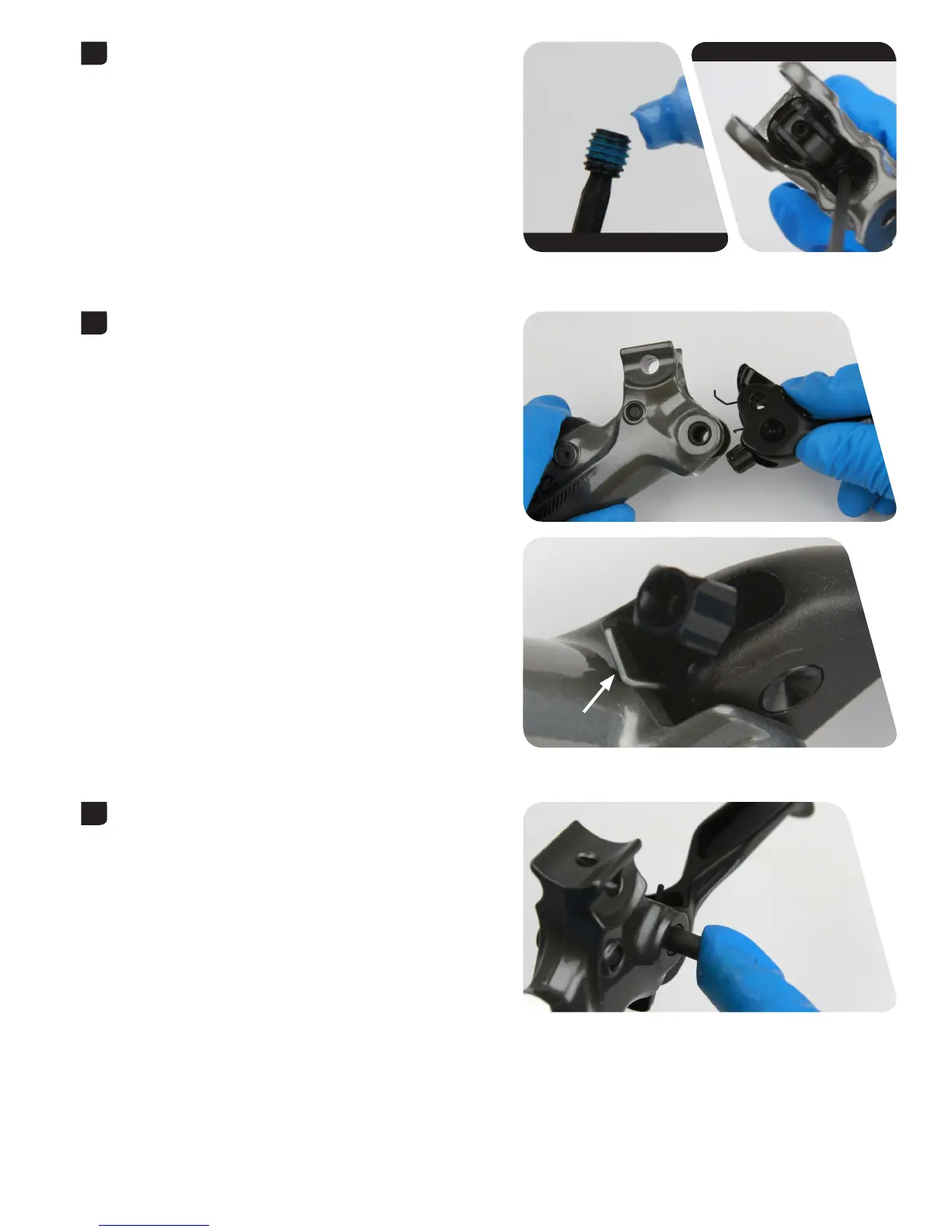

Apply a small amount of 242® Blue Loctite® onto the threads of the
SwingLink™ pivot pinch bolt.
Use a T8 TORX® wrench to thread the SwingLink pivot pinch bolt into
the SwingLink.
Insert the lever blade assembly into the lever body, place the lever
return spring on the lever body.
Make sure the lever return spring is seated properly in the lever. The
outboard end of the spring must press against the lever blade, while
the inboard end of the spring must press against the lever body. If the
return spring is not seated properly, you will not be able to adjust the
reach of the lever blade. The reach adjuster must be seated in the cam
hole, if it is not set properly you will be unable to adjust your reach.
Line up the cam and lever blade with the holes in the lever body, then
press the pivot pin through the holes.
5
242 Blue Loctite 20 mm or 15 mm Thru Axle
T8 TORX wrench QR
6
7

SRAM Guide RS Specifications

General

Brake Type	Hydraulic Disc
Lever Material	Aluminum
Caliper Design	2-Piston
Adjustment	Reach Adjust
Fluid Type	DOT 5.1
Pad Material	Organic
Caliper Material	Aluminum
Rotor Compatibility	CenterLine
Rotor Size	160mm, 180mm, 200mm
Weight	375g (Direct Mount, 800mm hose)
