SRAM Guide RS User Manual

25RS Lever Blade Installation

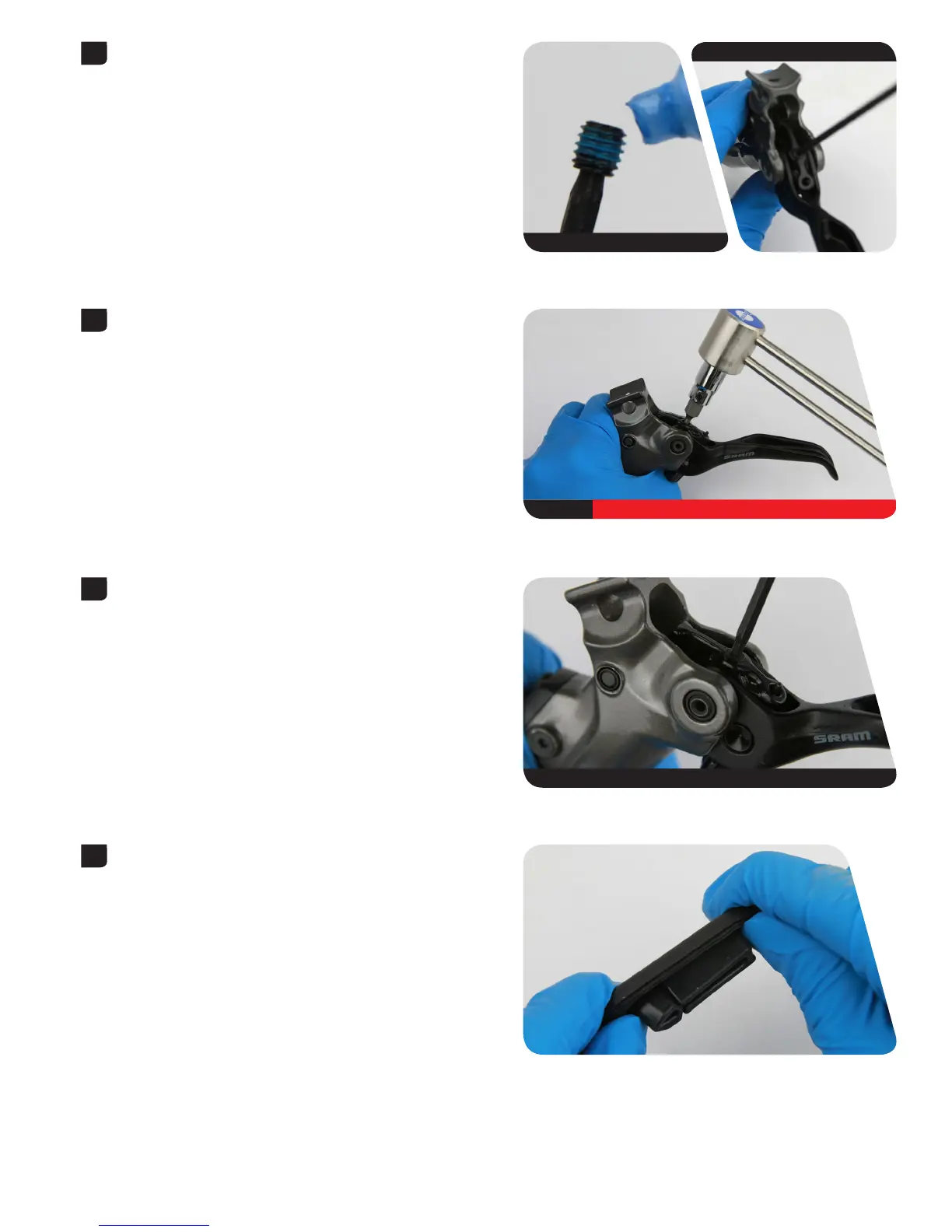

Apply a small amount of 242® Blue Loctite® onto the pinch bolt.
Use a T8 TORX® wrench to thread the pinch bolt into the lever body.
Use a torque wrench and a T8 TORX bit socket to tighten the bolt to
2.7-3.2 N·m (24-28 in-lb).
Use a T8 TORX wrench to install a new binder bolt plug.
Press the bladder into the reservoir cap so that the bladder is properly
seated and flush with the reservoir cap.
8
242 Blue Loctite 20 mm or 15 mm Thru Axle
T8 TORX wrench QR
T8 TORX 2.7-3.2 N•m (24-28 in-lb) 22 mm
9
10
T8 TORX wrench 2.7-3.2 N•m (24-28 in-lb) 22 mm
11

SRAM Guide RS Specifications

General

Brake Type	Hydraulic Disc
Lever Material	Aluminum
Caliper Design	2-Piston
Adjustment	Reach Adjust
Fluid Type	DOT 5.1
Pad Material	Organic
Caliper Material	Aluminum
Rotor Compatibility	CenterLine
Rotor Size	160mm, 180mm, 200mm
Weight	375g (Direct Mount, 800mm hose)
