SRAM Guide RS User Manual

28R Lever Blade Installation

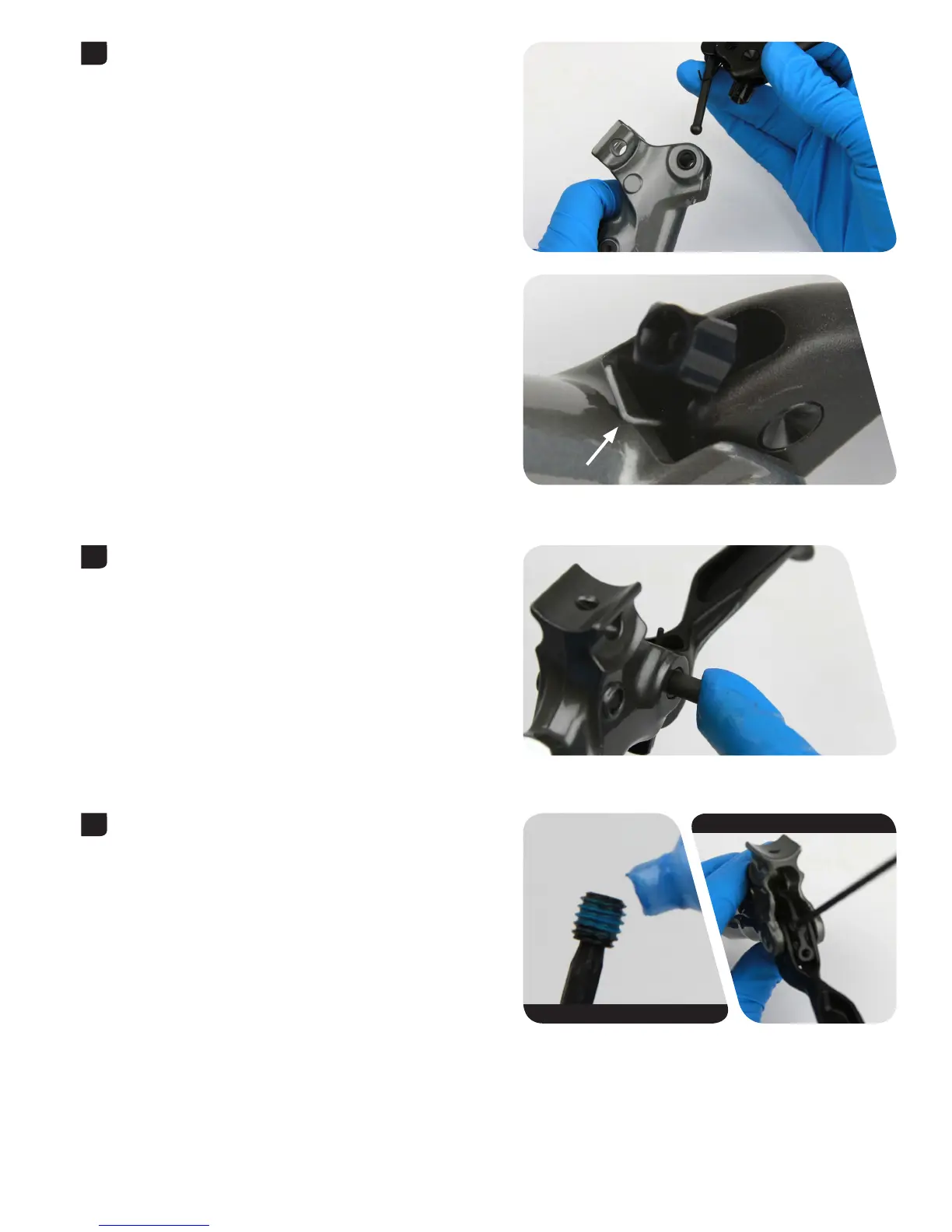

Insert the lever blade assembly into the lever body, placing the push
rod into the piston and lever return spring on the lever body.
Make sure the lever return spring is seated properly in the lever. The
outboard end of the spring must press against the lever blade, while
the inboard end of the spring must press against the lever body. If the
return spring is not seated properly, you will not be able to adjust the
reach of the lever blade.
Line up the cam and lever blade with the holes in the lever body, then
press the pivot pin through the holes.
Apply a small amount of 242® Blue Loctite® onto the pinch bolt.
Use a T8 TORX® wrench to thread the pinch bolt into the lever body.
2
3
4
242 Blue Loctite 20 mm or 15 mm Thru Axle
T8 TORX wrench QR

SRAM Guide RS Specifications

General

Brake Type	Hydraulic Disc
Lever Material	Aluminum
Caliper Design	2-Piston
Adjustment	Reach Adjust
Fluid Type	DOT 5.1
Pad Material	Organic
Caliper Material	Aluminum
Rotor Compatibility	CenterLine
Rotor Size	160mm, 180mm, 200mm
Weight	375g (Direct Mount, 800mm hose)
