SRAM Guide Ultimate Service Manual

13Caliper Piston Installation

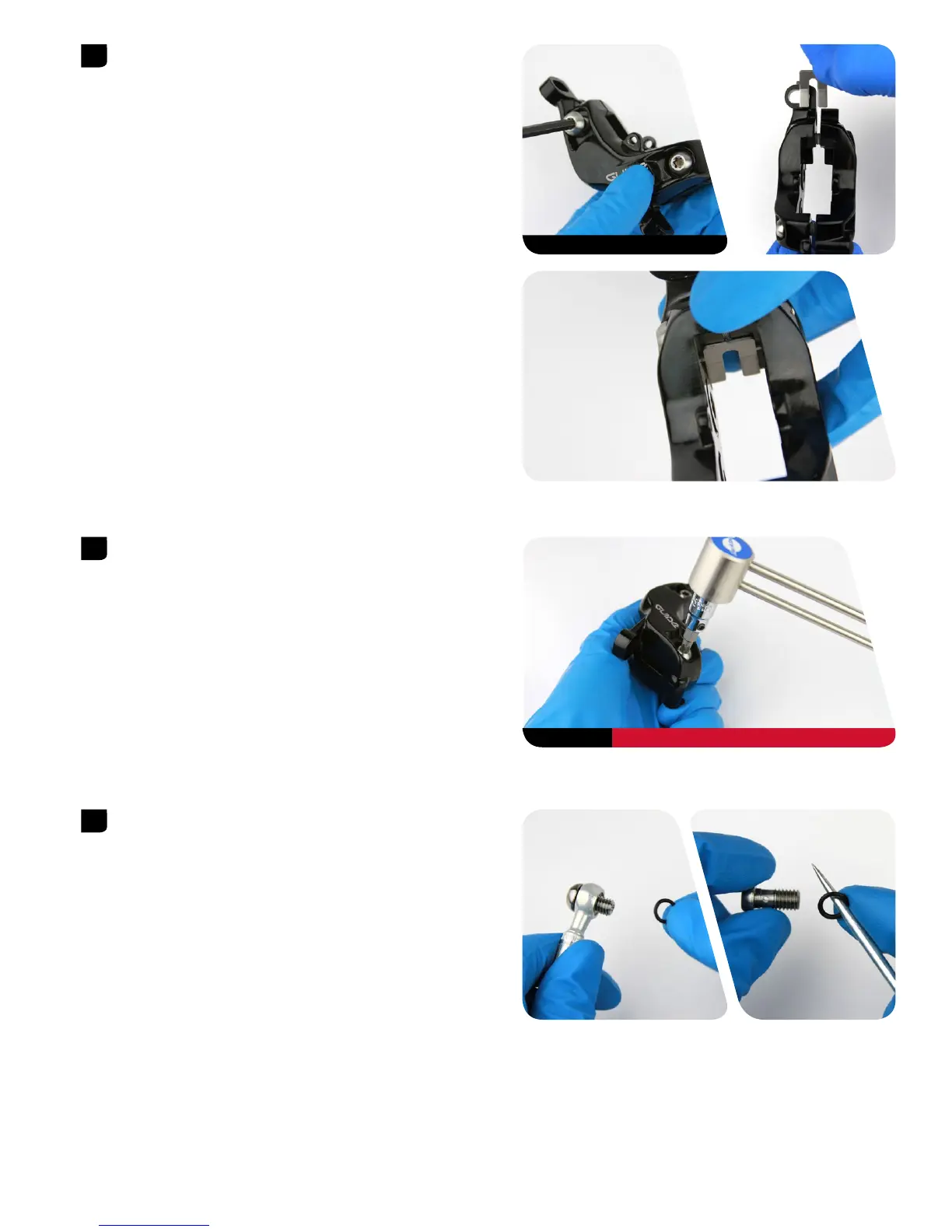

Align the caliper body halves then use a T25 TORX
®
wrench to thread
each body bolt into the caliper two full turns.
Install the heat shield.
Use a T25 TORX bit socket with a torque wrench to tighten each bolt
to 4.4-5.4 N·m (39-48 in-lb).
Remove the o-rings from the banjo bolt and banjo fitting.
Apply a small amount of SRAM® High-Performance 5.1 DOT fluid to the
new o-rings and install them.
T25 TORX 20 mm or 15 mm Thru Axle
4
T25 TORX 4.4-5.4 N·m (39-48 in-lb) 22 mm
5
6

SRAM Guide Ultimate Specifications

General

Brake Type	Hydraulic Disc
Caliper Design	4-Piston
Caliper Material	Aluminum
Compatibility	MatchMaker X
Rotor Compatibility	CenterLock, 6-Bolt
Adjustment	Reach Adjust
Intended Use	Trail, Enduro
Pad Material	Organic
Weight	360g
