SRAM Guide Ultimate Service Manual

8Caliper Brake Pad Removal

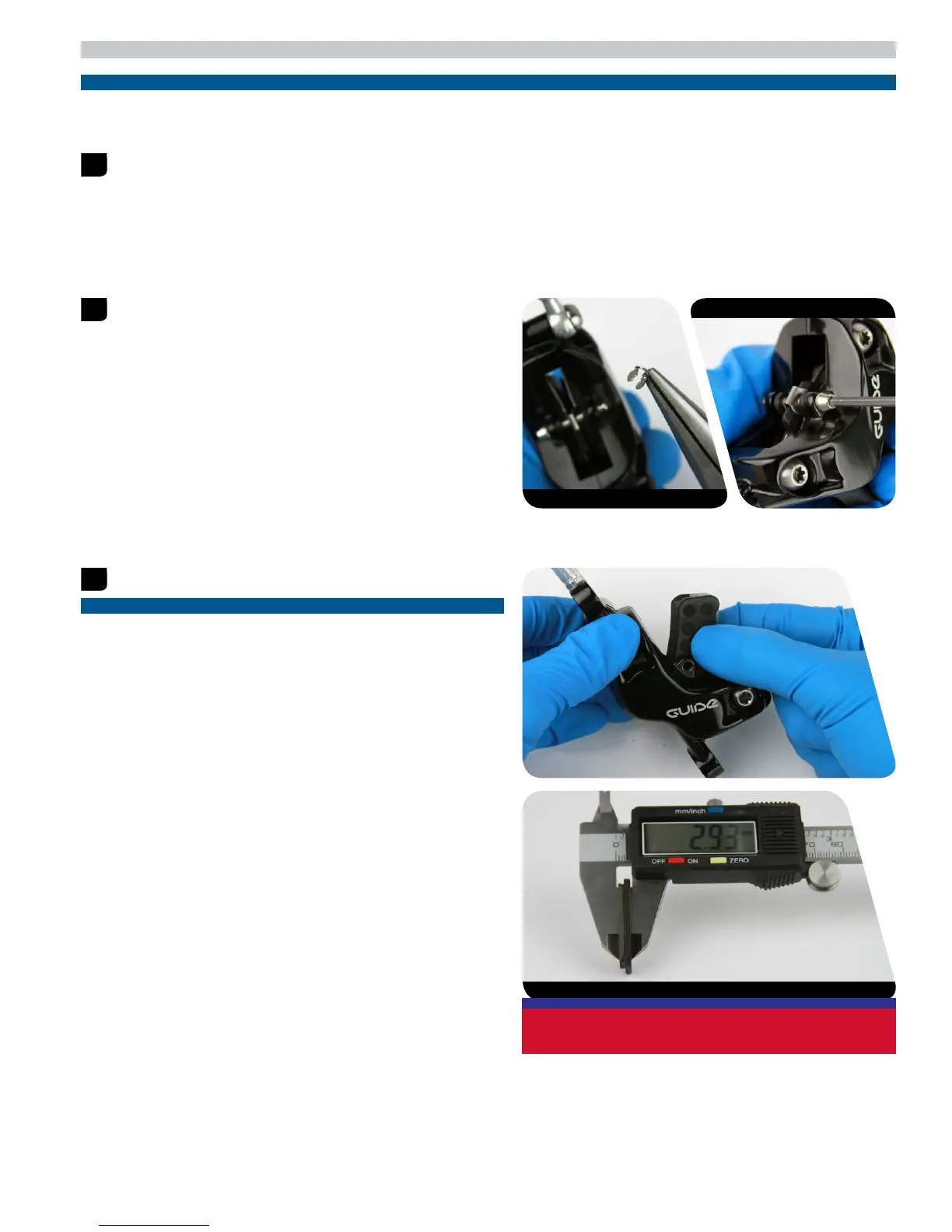

Caliper Brake Pad Removal
NOTICE
DOT fluid will damage painted surfaces. If any fluid comes in contact with a painted surface (i.e. your frame) or printing on the brakes, wipe it off
immediately and clean it with isopropyl alcohol or water. Damage to painted and/or printed surfaces by DOT fluid is not covered under warranty.
Use a T25 TORX
®
wrench to remove the brake caliper from the fork or
frame.
Remove the caliper mounting bracket and hardware from the caliper
then set them aside in the order that they were removed.
Use needle nose pliers to remove the E-clip from the pad retention
bolt. Remove the Guide Ultimate™ pad spreader.
Use a 2.5 mm hex wrench to remove the pad retention bolt from the
caliper.
Remove the brake pads from the caliper.
NOTICE
Brake pads must be replaced if the total thickness of the backing plate
and pad friction material is less than 3 mm.
1
2
Needle nose pliers 20 mm or 15 mm Thru Axle
2.5 mm hex wrench QR
3
Caliper 2.7-3.2 N•m (24-28 in-lb) 22 mm
space between frames
space between steps

SRAM Guide Ultimate Specifications

General

Brake Type	Hydraulic Disc
Caliper Design	4-Piston
Caliper Material	Aluminum
Compatibility	MatchMaker X
Rotor Compatibility	CenterLock, 6-Bolt
Adjustment	Reach Adjust
Intended Use	Trail, Enduro
Pad Material	Organic
Weight	360g
