SRAM Guide Ultimate Service Manual

7Caliper Service
Caliper Service
We recommend that you have your SRAM
®
Guide Ultimate™ brakes serviced by a qualified bicycle mechanic. Servicing SRAM brakes knowledge of
brake components as well as the special tools and oils used for service.
For exploded diagram and part number information, please refer to the Spare Parts Catalog available on our website at
sram.com/service. For order information, please contact your local SRAM distributor or dealer.
Information contained in this publication is subject to change at any time without prior notice. For the latest technical information, please visit our
website at sram.com/service.
Your product's appearance may dier from the pictures contained in this publication
P arts and Tools Needed for Service
• Safety glasses
• Nitrile gloves
• Oil pan
• Isopropyl alcohol
• Clean, lint-free shop towel
• Bleed block
• Guide Ultimate pad spreader
• Pick with a 90 degree bent tip
• T25 TORX
®
wrench
• T25 TORX bit socket
• Torque wrench
• SRAM High-Performance 5.1 DOT fluid
• DOT compatible grease

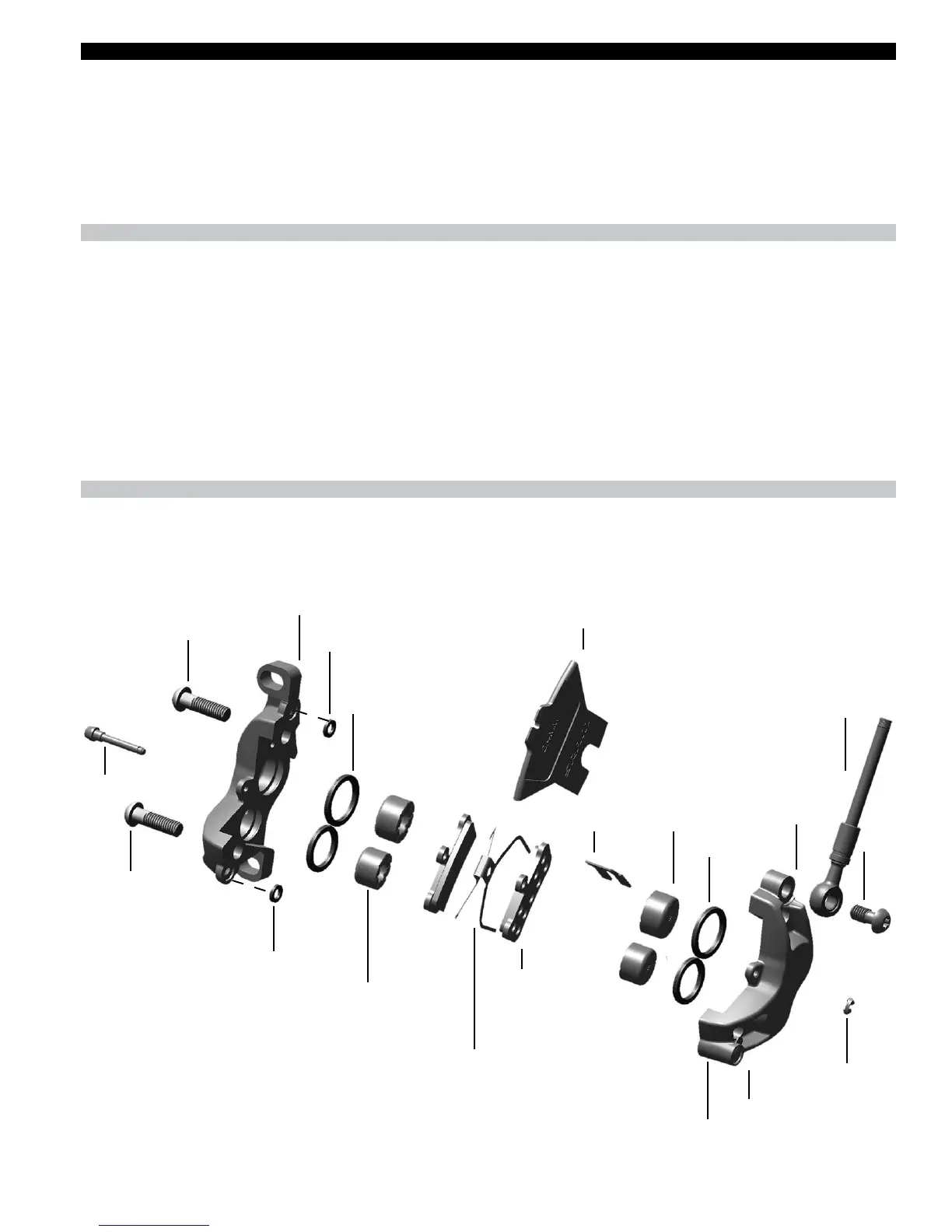

C aliper Exploded View
E-clip
Banjo
fitting
Banjo
bolt
Caliper body
bolt
Caliper o-ring
Caliper
o-ring
Pad retention bolt
Inboard caliper body
Outboard caliper
body
Caliper pistons
Caliper pistons
Piston seals
Piston seals
Brake pads
H-spring
Bleed screw port
Caliper body
bolt
Heat
shield
Guide Ultimate pad spreader
Banjo

SRAM Guide Ultimate Specifications

General

Brake Type	Hydraulic Disc
Caliper Design	4-Piston
Caliper Material	Aluminum
Compatibility	MatchMaker X
Rotor Compatibility	CenterLock, 6-Bolt
Adjustment	Reach Adjust
Intended Use	Trail, Enduro
Pad Material	Organic
Weight	360g
