SRAM Guide Ultimate Service Manual

9Caliper Piston Removal
Caliper Piston Removal
NOTICE
DOT fluid will damage painted surfaces. If any fluid comes in contact with a painted surface (i.e. your frame) or printing on the brakes, wipe it off
immediately and clean it with isopropyl alcohol or water. Damage to painted and/or printed surfaces by DOT fluid is not covered under warranty.

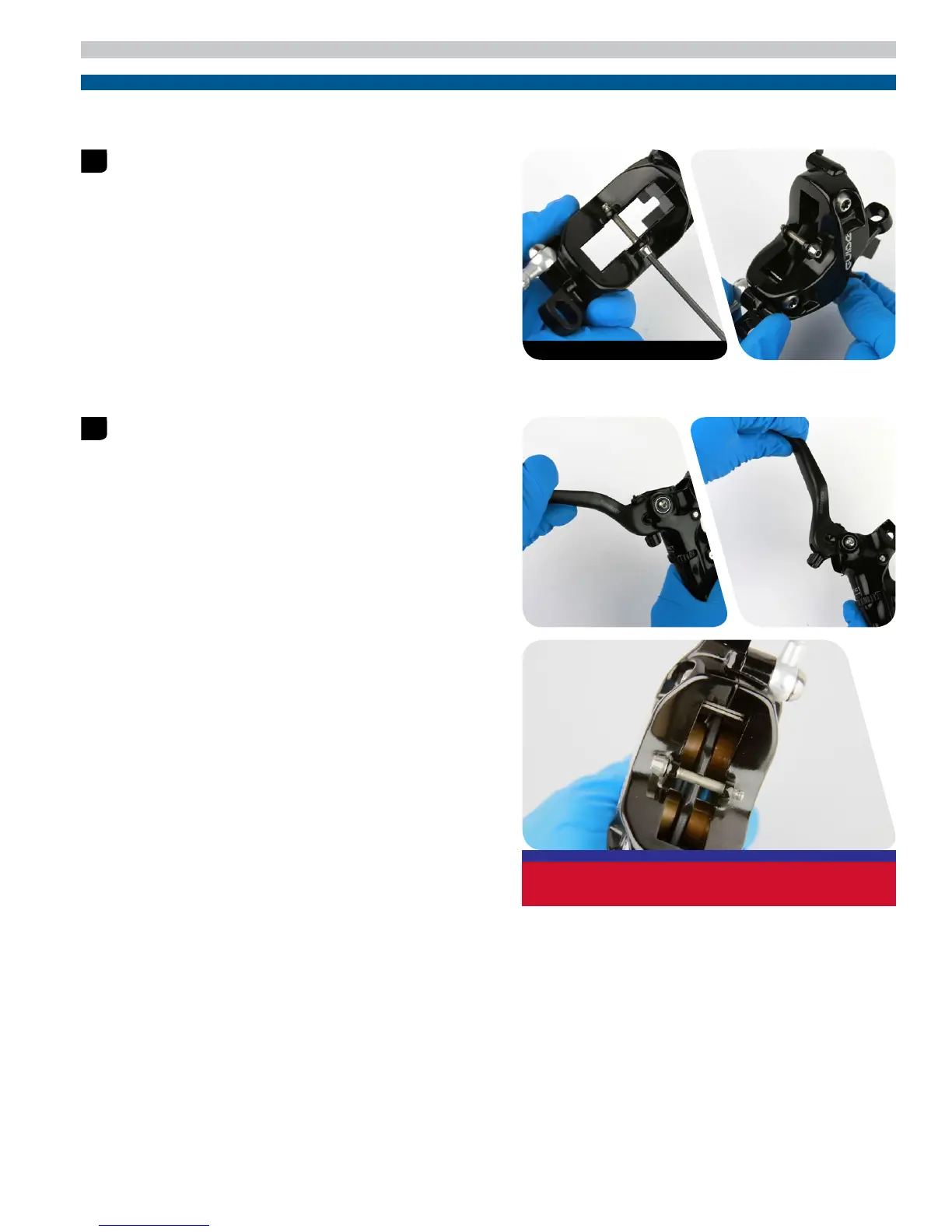

Use a 2.5 mm hex wrench to install the pad retention bolt.
Insert the Guide Ultimate™ pad spreader so that it snaps onto the pad
retention bolt.
Squeeze the brake lever to advance the pistons until they contact the
pad spreader.
1
2.5 mm hex wrench 20 mm or 15 mm Thru Axle
2
space between frames
space between steps

SRAM Guide Ultimate Specifications

General

Brake Type	Hydraulic Disc
Caliper Design	4-Piston
Caliper Material	Aluminum
Compatibility	MatchMaker X
Rotor Compatibility	CenterLock, 6-Bolt
Adjustment	Reach Adjust
Intended Use	Trail, Enduro
Pad Material	Organic
Weight	360g
