SRAM Guide Ultimate Service Manual

26Lever Blade Installation

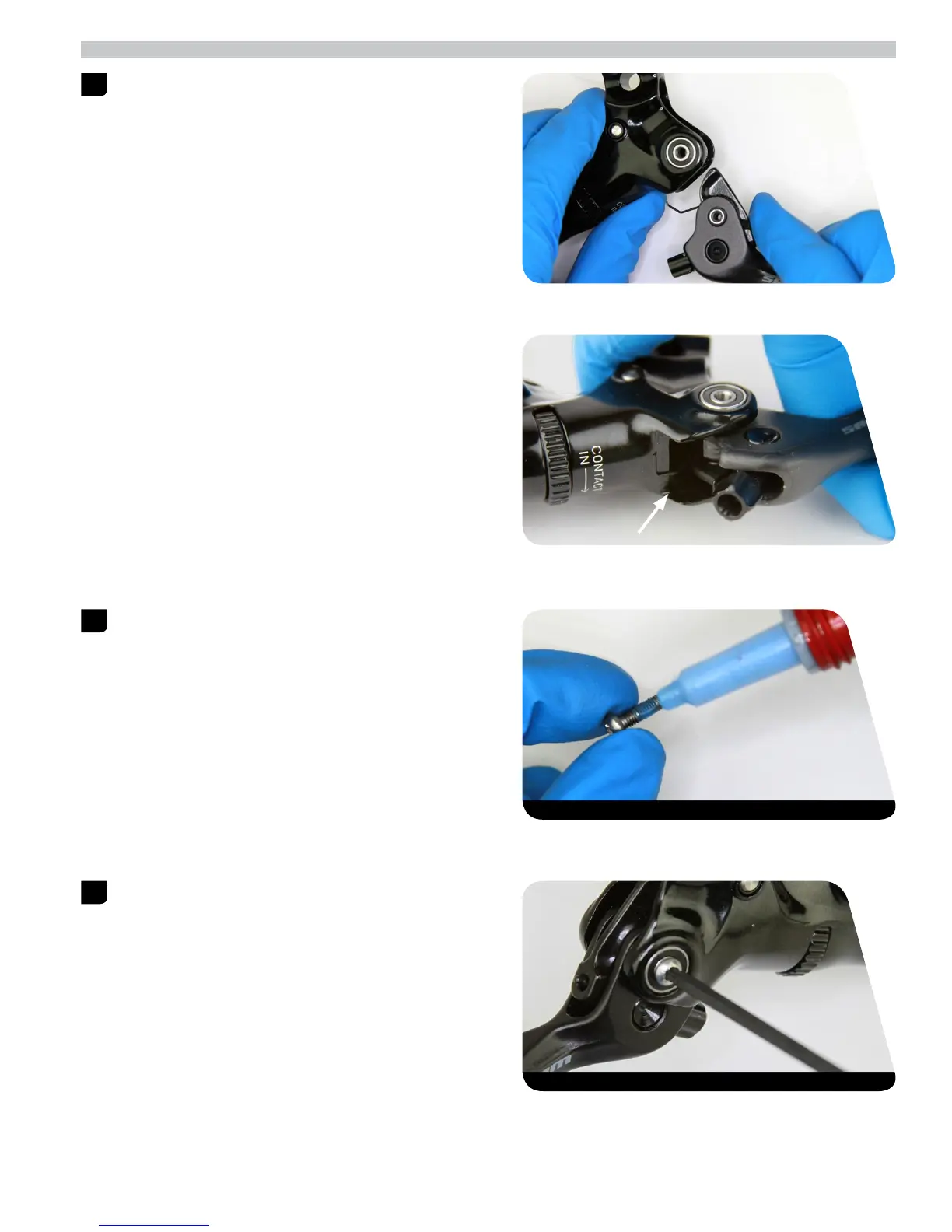

Lever Blade Installation
Insert the lever blade into the lever body with the inboard spring
pressing against the lever body.
Align the pivot holes of the lever blade and the lever body.
Make sure the lever return spring is seated properly in the lever. The
outboard end of the spring must press against the lever blade, while
the inboard end of the spring must press against the lever body. If the
return spring is not seated properly the reach adjustment feature of
the lever blade will be inoperable.
Apply a small amount of Loctite® Threadlocker Blue 242® onto the
threads of each pivot bolt.
Use a T10 TORX
®
wrench to thread each pivot bolt into the bearings
on each side of the lever body.
1
2
Loctite Threadlocker Blue 242 15 N•m (133 in-lb) 22 mm
3
T10 TORX wrench 15 N•m (133 in-lb) 22 mm
Inboard spring

SRAM Guide Ultimate Specifications

General

Brake Type	Hydraulic Disc
Caliper Design	4-Piston
Caliper Material	Aluminum
Compatibility	MatchMaker X
Rotor Compatibility	CenterLock, 6-Bolt
Adjustment	Reach Adjust
Intended Use	Trail, Enduro
Pad Material	Organic
Weight	360g
