SRAM Guide Ultimate Service Manual

25Piston Assembly Installation

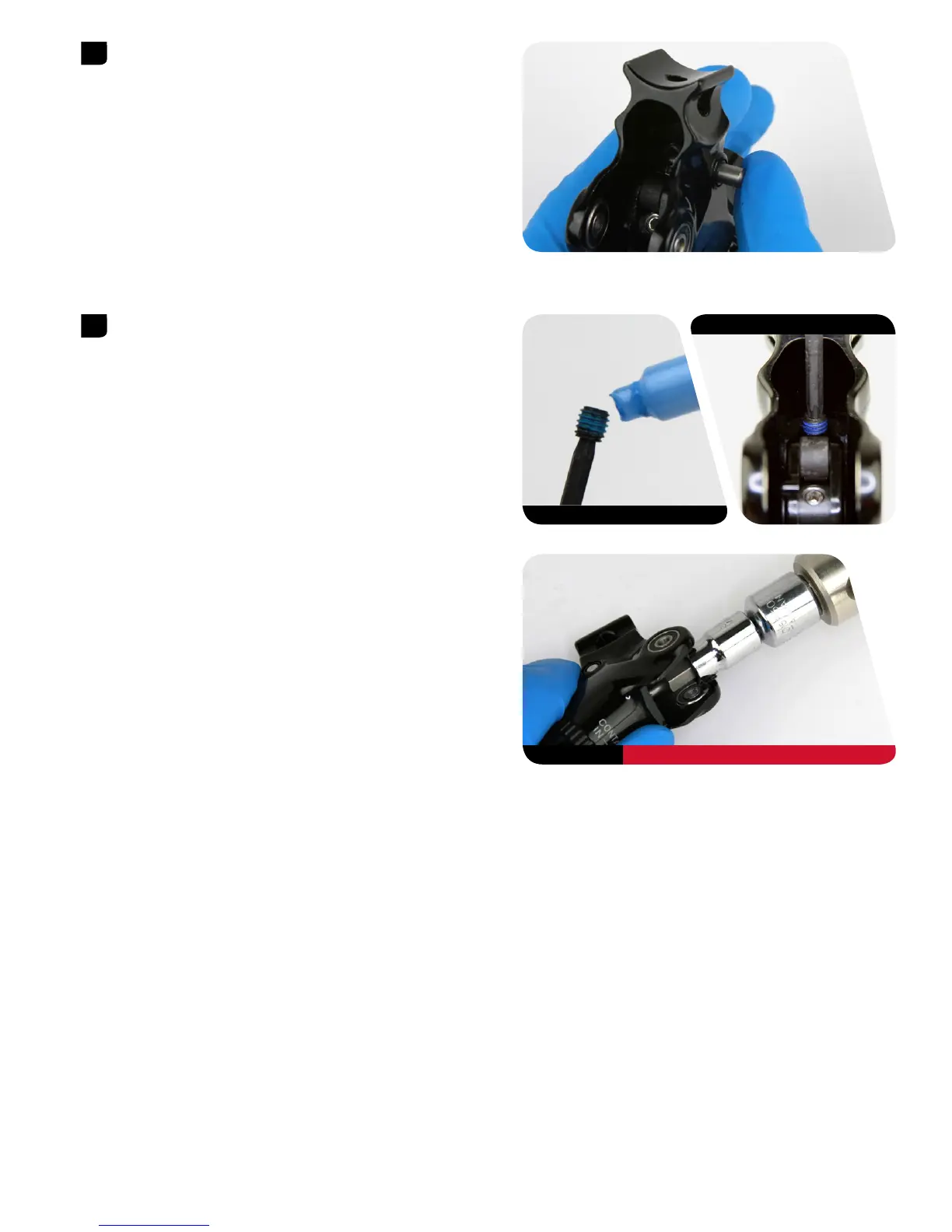

Align the SwingLink™ pivot holes and the SwingLink bushings, then
press the pivot pin into the SwingLink pivot hole until it is flush with the
lever body on both sides.
Apply a small amount of Loctite® Threadlocker Blue 242® onto the
pinch bolt.
Use a T8 TORX
®
wrench to thread the SwingLink pinch bolt into the
lever body.
Use a torque wrench and a T8 TORX bit socket to tighten the bolt to
1-1.3 N·m (10-11 in-lb).
9
10
Loctite Threadlocker Blue 242 20 mm or 15 mm Thru Axle
T8 TORX wrench QR
T8 TORX bit 1-1.3 N•m (10-11 in-lb) 22 mm

SRAM Guide Ultimate Specifications

General

Brake Type	Hydraulic Disc
Caliper Design	4-Piston
Caliper Material	Aluminum
Compatibility	MatchMaker X
Rotor Compatibility	CenterLock, 6-Bolt
Adjustment	Reach Adjust
Intended Use	Trail, Enduro
Pad Material	Organic
Weight	360g
