SRAM Guide Ultimate Service Manual

19Piston Assembly Removal

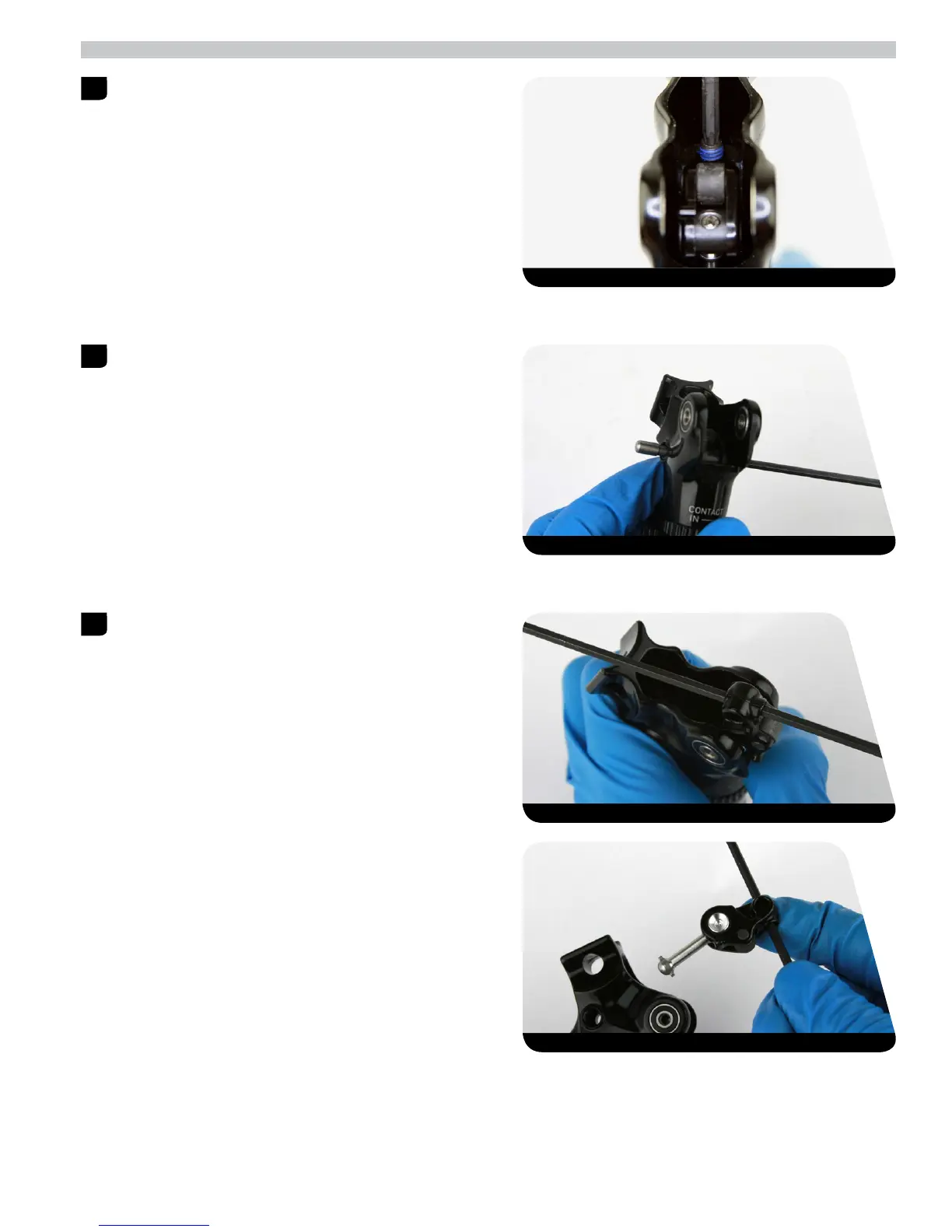

Piston Assembly Removal
Use a T8 TORX
®
wrench to unthread then remove the SwingLink™
pinch bolt from the lever body.
Use the end of a T8 TORX wrench to push the SwingLink pivot pin out
of the lever body.
Slide the end of a T8 TORX wrench through the hole in the SwingLink,
then pull the SwingLink out of the lever body.
T8 TORX wrench 15 N•m (133 in-lb) 22 mm
1
2
T8 TORX wrench 15 N•m (133 in-lb) 22 mm
3
T8 TORX wrench 15 N•m (133 in-lb) 22 mm
T8 TORX wrench 15 N•m (133 in-lb) 22 mm

SRAM Guide Ultimate Specifications

General

Brake Type	Hydraulic Disc
Caliper Design	4-Piston
Caliper Material	Aluminum
Compatibility	MatchMaker X
Rotor Compatibility	CenterLock, 6-Bolt
Adjustment	Reach Adjust
Intended Use	Trail, Enduro
Pad Material	Organic
Weight	360g
