SRAM Guide Ultimate Service Manual

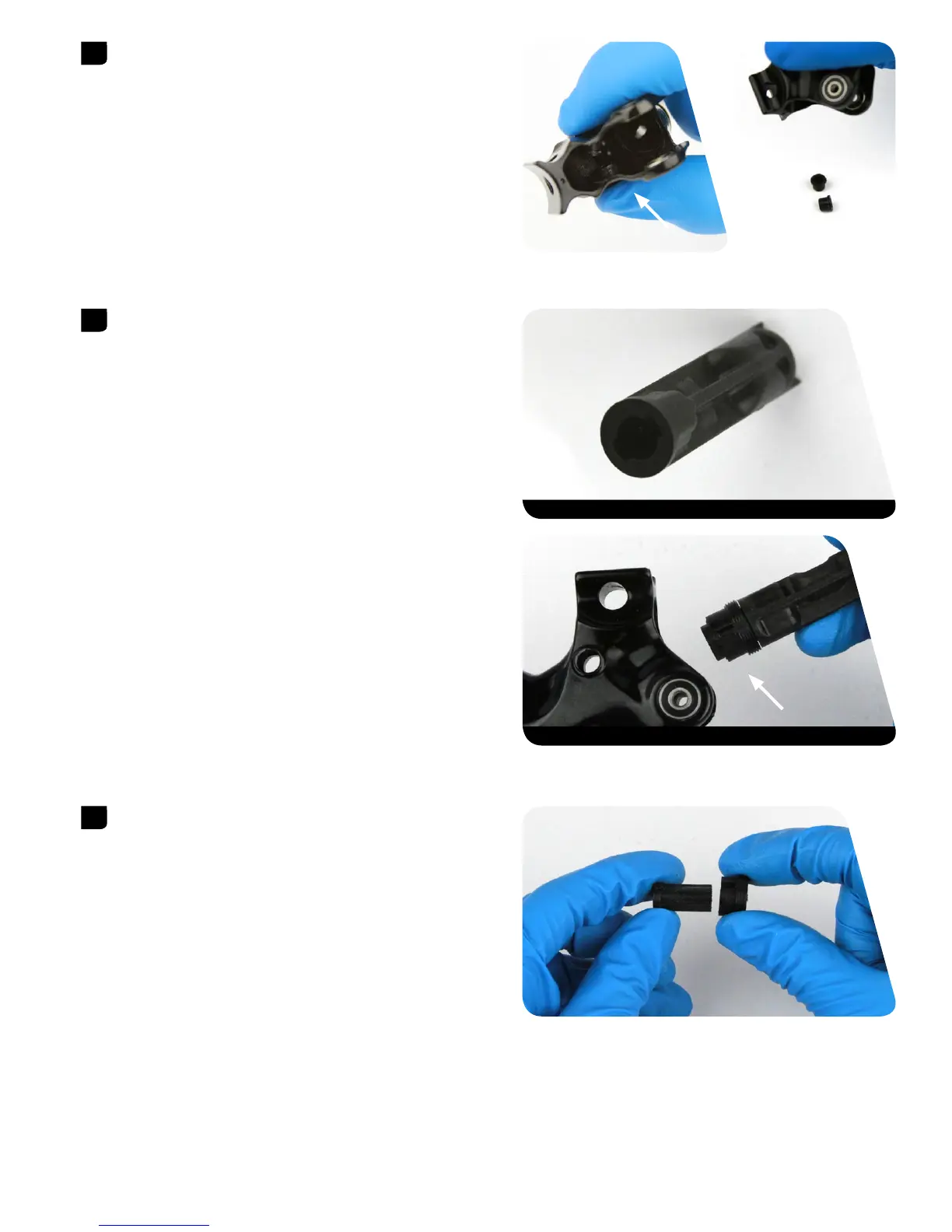

20Piston Assembly Removal
Remove the SwingLink™ bushings by hand.
Insert the SRAM® Guide Lever Internals Assembly Tool into the lever
body and align the keyslot of the tool with the piston sleeve. Use the
tool to unthread the sleeve, then remove the sleeve and coupler from
the lever body.
If the piston sleeve and coupler become stuck in the lever body after
unthreading the piston sleeve, use a pair of needle nose pliers to gen-
tly grip the piston sleeve and remove it from the lever body.
Remove the sleeve from the coupler from the SRAM tool, then separate
the sleeve and coupler by hand.
Spray isopropyl alcohol on both the sleeve and the coupler and clean
them with a shop towel.
4
5
SRAM Guide Lever Internals Assembly Tool 15 N•m (133 in-lb) 22 mm
SRAM Guide Lever Internals Assembly Tool 15 N•m (133 in-lb) 22 mm
6
SwingLink bushings
Sleeve and coupler

SRAM Guide Ultimate Specifications

General

Brake Type	Hydraulic Disc
Caliper Design	4-Piston
Caliper Material	Aluminum
Compatibility	MatchMaker X
Rotor Compatibility	CenterLock, 6-Bolt
Adjustment	Reach Adjust
Intended Use	Trail, Enduro
Pad Material	Organic
Weight	360g
