SRAM Guide Ultimate Service Manual

21Piston Assembly Removal

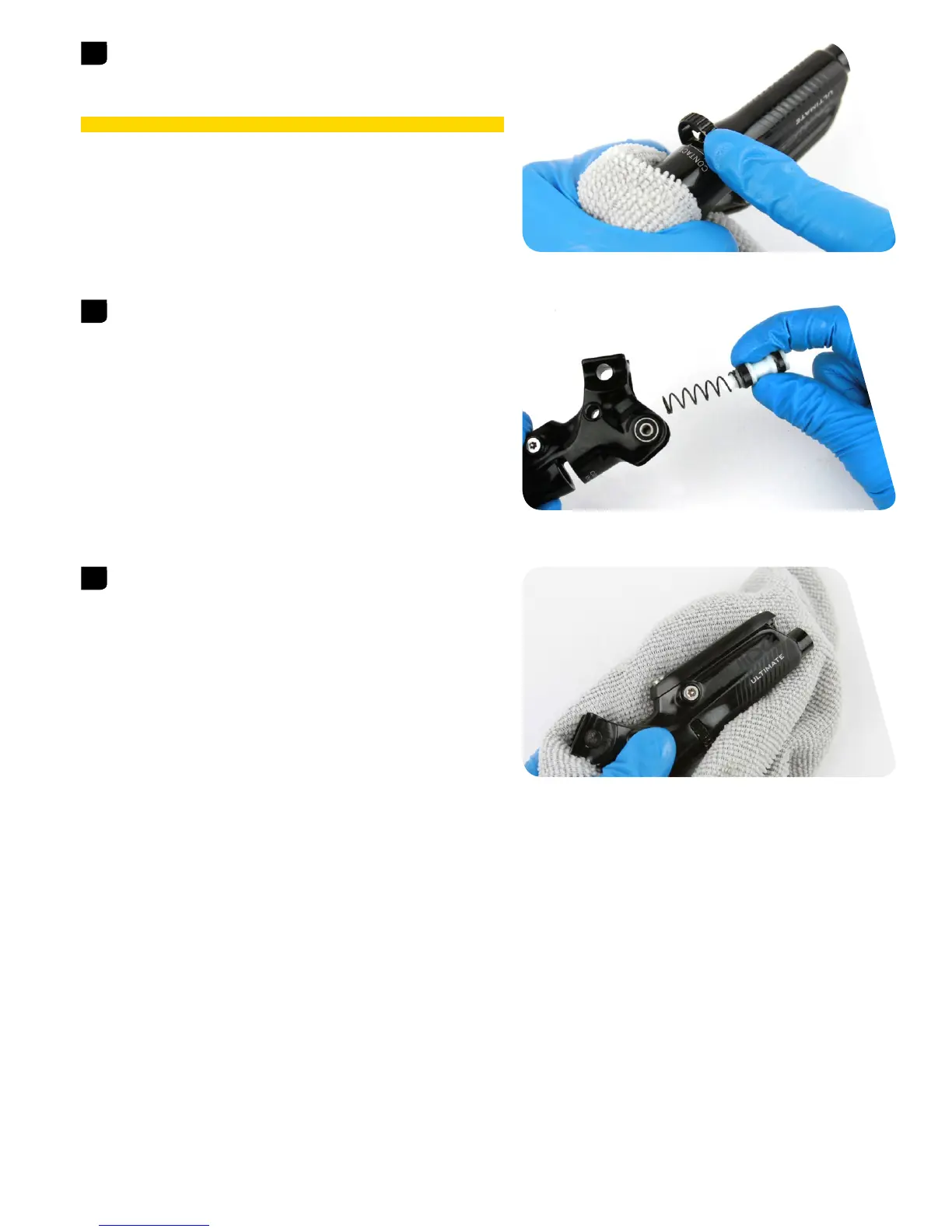

Place a shop towel over the open end of the lever body near the
Contact Point Adjustment™ dial.
Use your fingers to slide the Contact Point Adjustment dial out of the
lever body.
⚠ CAUTION - EYE HAZARD
Wear safety glasses.
The piston assembly is spring loaded and will forcefully eject from the
lever body when the Contact Point Adjustment dial is removed. Be sure
to cover the end of the lever body with a shop towel to capture the
piston assembly and prevent it from becoming a projectile.
Remove the piston assembly from the lever body.
Spray isopropyl alcohol on the lever body and the lever blade, then
clean them with a shop towel.
7
8
9

SRAM Guide Ultimate Specifications

General

Brake Type	Hydraulic Disc
Caliper Design	4-Piston
Caliper Material	Aluminum
Compatibility	MatchMaker X
Rotor Compatibility	CenterLock, 6-Bolt
Adjustment	Reach Adjust
Intended Use	Trail, Enduro
Pad Material	Organic
Weight	360g
