SRAM Guide Ultimate Service Manual

27Lever Blade Installation

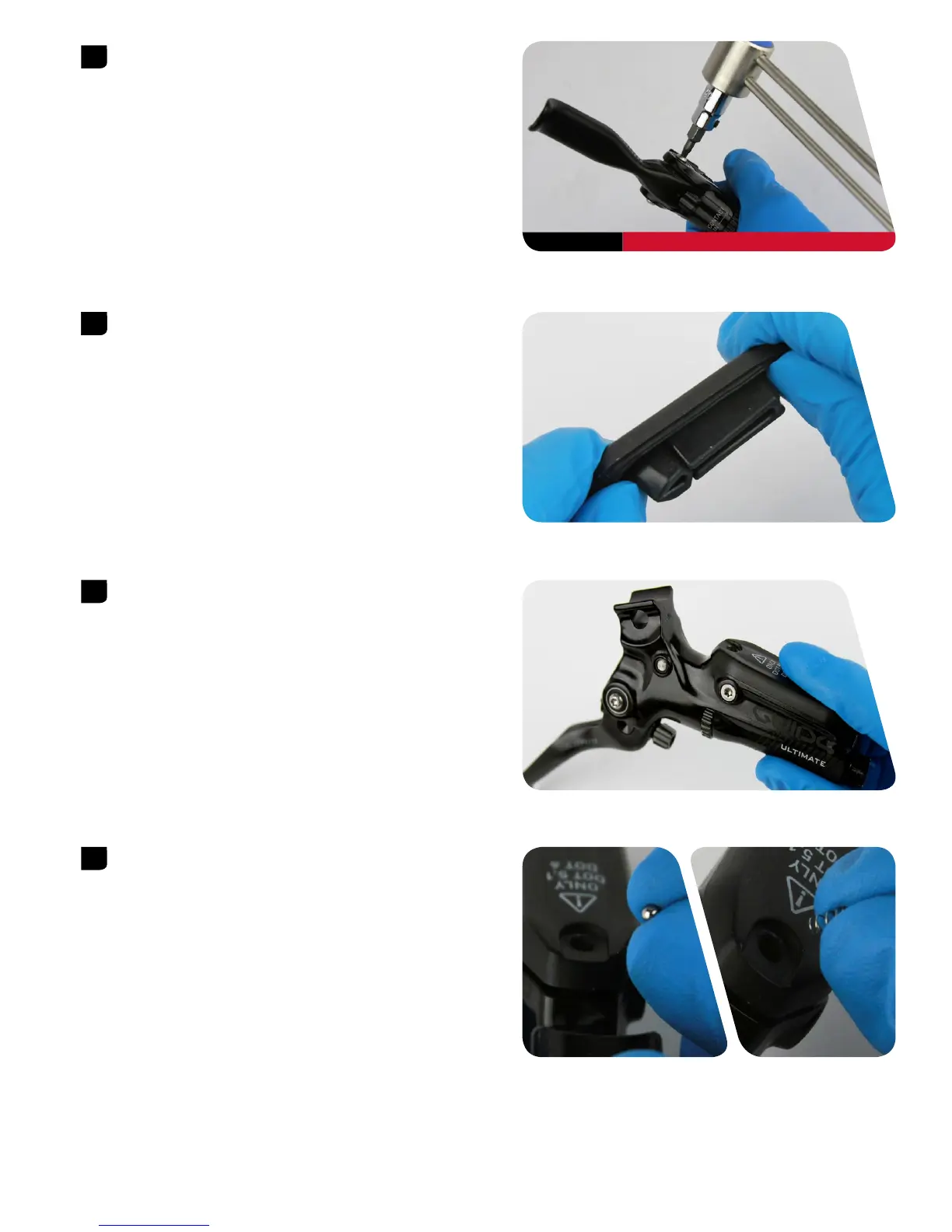

Use a torque wrench and a T10 TORX
®
bit socket to tighten each pivot
bolt to 1-1.3 N·m (10-11 in-lb).
Press the bladder into the reservoir cap, the bladder must be flush with
the cap to be properly installed.
Insert the reservoir cap/bladder assembly onto the lever body.
Use your fingers to insert the detent ball followed by the detent spring
into the lever body reservoir hole closest to the lever blade.
T10 TORX bit 1-1.3 N•m (10-11 in-lb) 22 mm
4
5 5
6
7

SRAM Guide Ultimate Specifications

General

Brake Type	Hydraulic Disc
Caliper Design	4-Piston
Caliper Material	Aluminum
Compatibility	MatchMaker X
Rotor Compatibility	CenterLock, 6-Bolt
Adjustment	Reach Adjust
Intended Use	Trail, Enduro
Pad Material	Organic
Weight	360g
