SRAM Guide Ultimate Service Manual

23Piston Assembly Installation

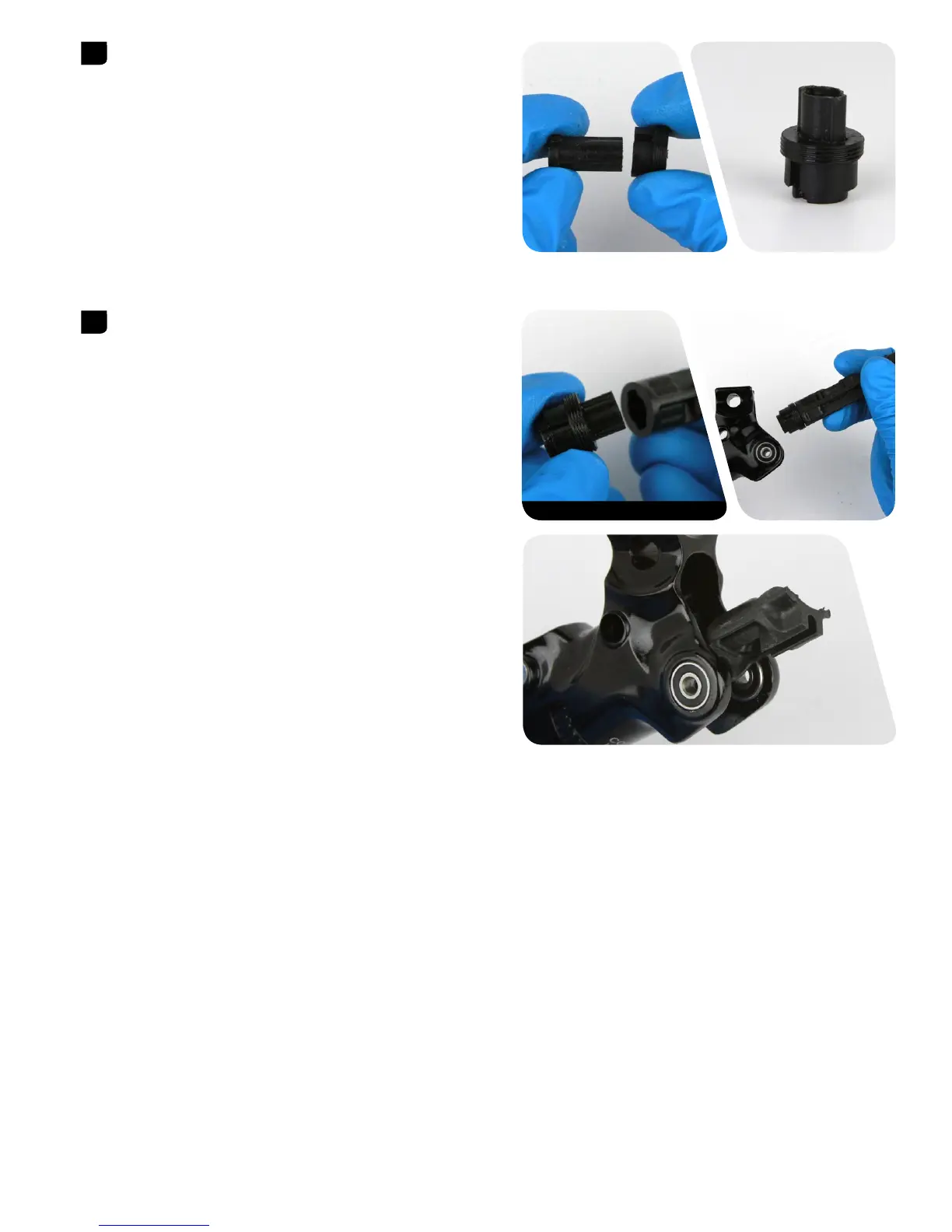

Insert the sleeve into the coupler by hand.
The sleeve threads must be oriented away from the base of the
coupler.
Insert the sleeve and coupler into the keyslot of the SRAM® Guide
Lever Internals Assembly Tool.
Use the SRAM tool to align the slots on the sleeve with the slots on the
contact adjust dial and insert the SRAM tool into the lever body until
you feel the sleeve and contact adjust dial engage.
Thread the sleeve into the lever body until it stops then remove the
SRAM tool from the lever body.
4
5
Guide Lever Internals Assembly Tool 20 mm or 15 mm Thru Axle

SRAM Guide Ultimate Specifications

General

Brake Type	Hydraulic Disc
Caliper Design	4-Piston
Caliper Material	Aluminum
Compatibility	MatchMaker X
Rotor Compatibility	CenterLock, 6-Bolt
Adjustment	Reach Adjust
Intended Use	Trail, Enduro
Pad Material	Organic
Weight	360g
