SRAM Guide Ultimate Service Manual

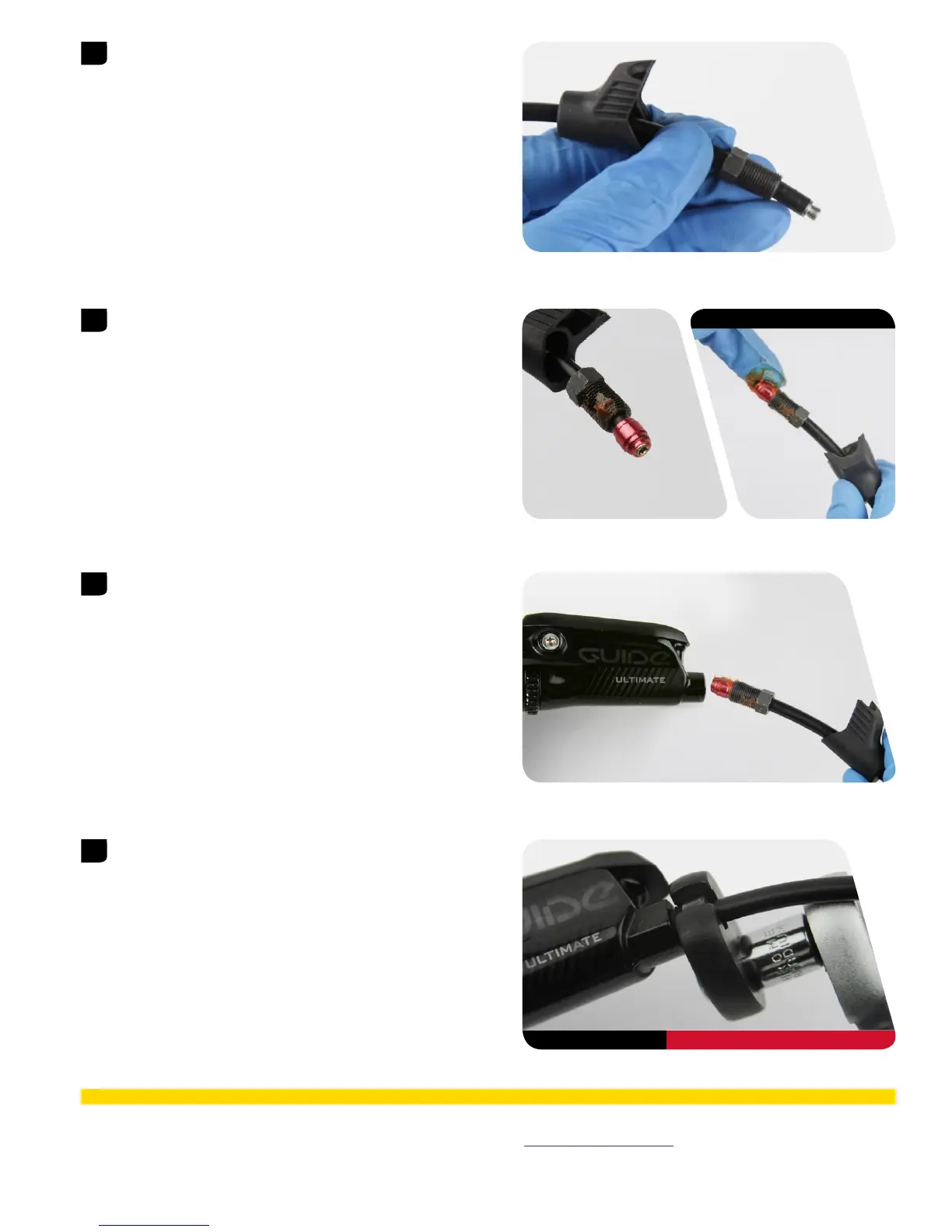

29Lever Blade Installation
Install the compression nut onto the hose.
Thread the compression fitting over the hose barb, counter-clockwise,
until it is flush or slightly lower than the hose barb.
The compression fitting is reverse threaded.
Apply DOT grease to the outside of the compression fitting and the
threads of the compression nut.
Install the compression fitting and nut into the lever.
Tighten the compression nut.
Clean the lever.
Slide the hose boot onto the compression nut.
⚠ CAUTION
Servicing your brakes removes all of the fluid from the system. You must bleed the brakes after you service the brake caliper and/or lever.
For brake bleed, brake hose shortening, and brake pad replacement instructions, visit www.sram.com/service.
This concludes the Guide Ultimate™ Brake Service.
12
DOT Grease
13
14
8 mm Flare Nut 8 Nm (71 in-lbs) 22 mm
15

SRAM Guide Ultimate Specifications

General

Brake Type	Hydraulic Disc
Caliper Design	4-Piston
Caliper Material	Aluminum
Compatibility	MatchMaker X
Rotor Compatibility	CenterLock, 6-Bolt
Adjustment	Reach Adjust
Intended Use	Trail, Enduro
Pad Material	Organic
Weight	360g
