HEADLAMP
1. Disconnect the negative cable on the
battery.
2. Disconnect two connectors from the
headlamp.
3. Unscrew three mounting bolts and
remove the headlamp housing from
the vehicle.
4. Remove the cover and bulb from the
headlamp housing.
5. Disconnect the internal connector
and replace the burnt bulb with new
one.
6. Install the headlamp in the reverse
order of removal.

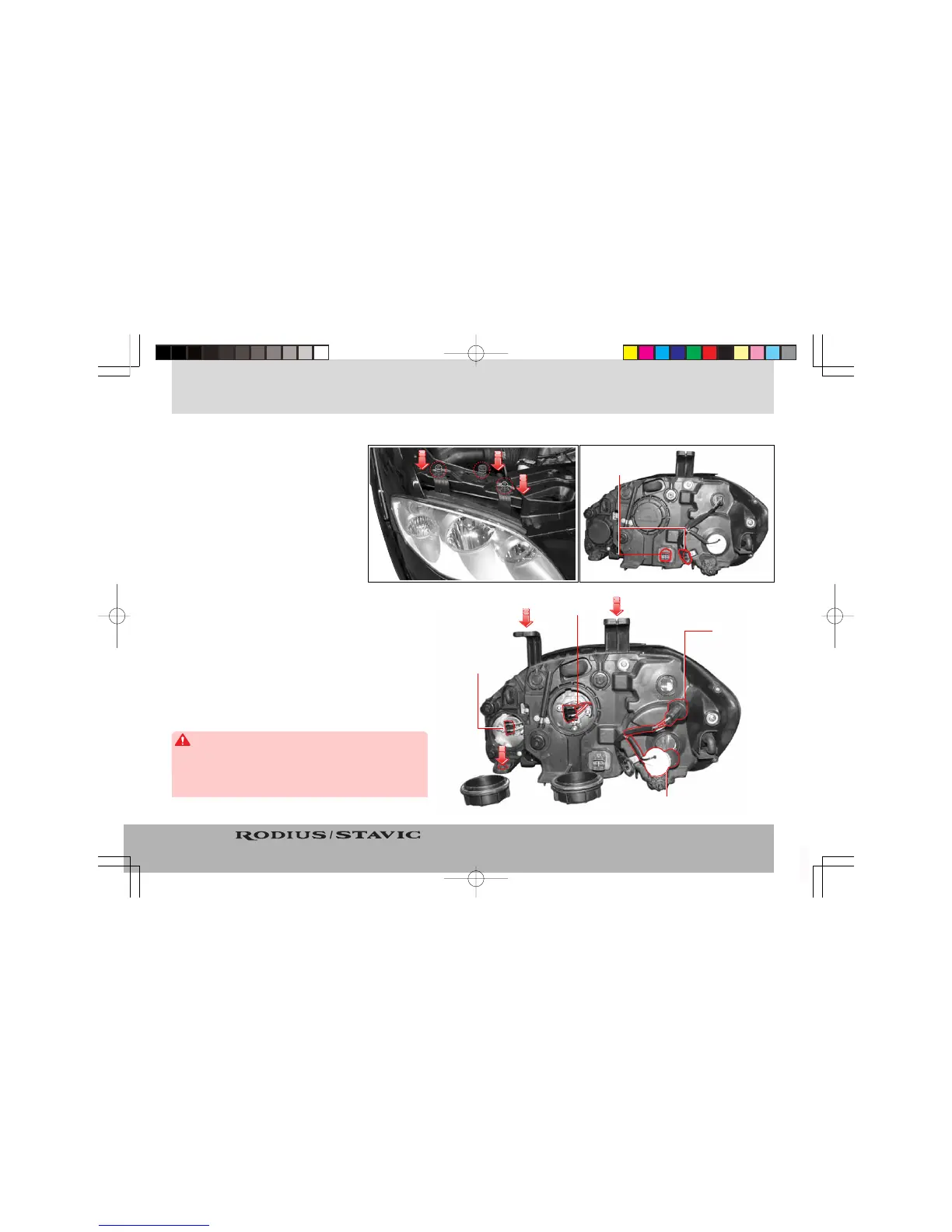

Headlamp
connections
Headlamp
high beam
Headlamp (right side)
Headlamp low
beam
Position lamp
Turn signal lamp
For safety driving, do not adjust the headlamp aiming by
yourself. It should be done by a qualified technician in
Ssangyong Dealer or Ssangyong Authorized Service
Operation.
WARNING
