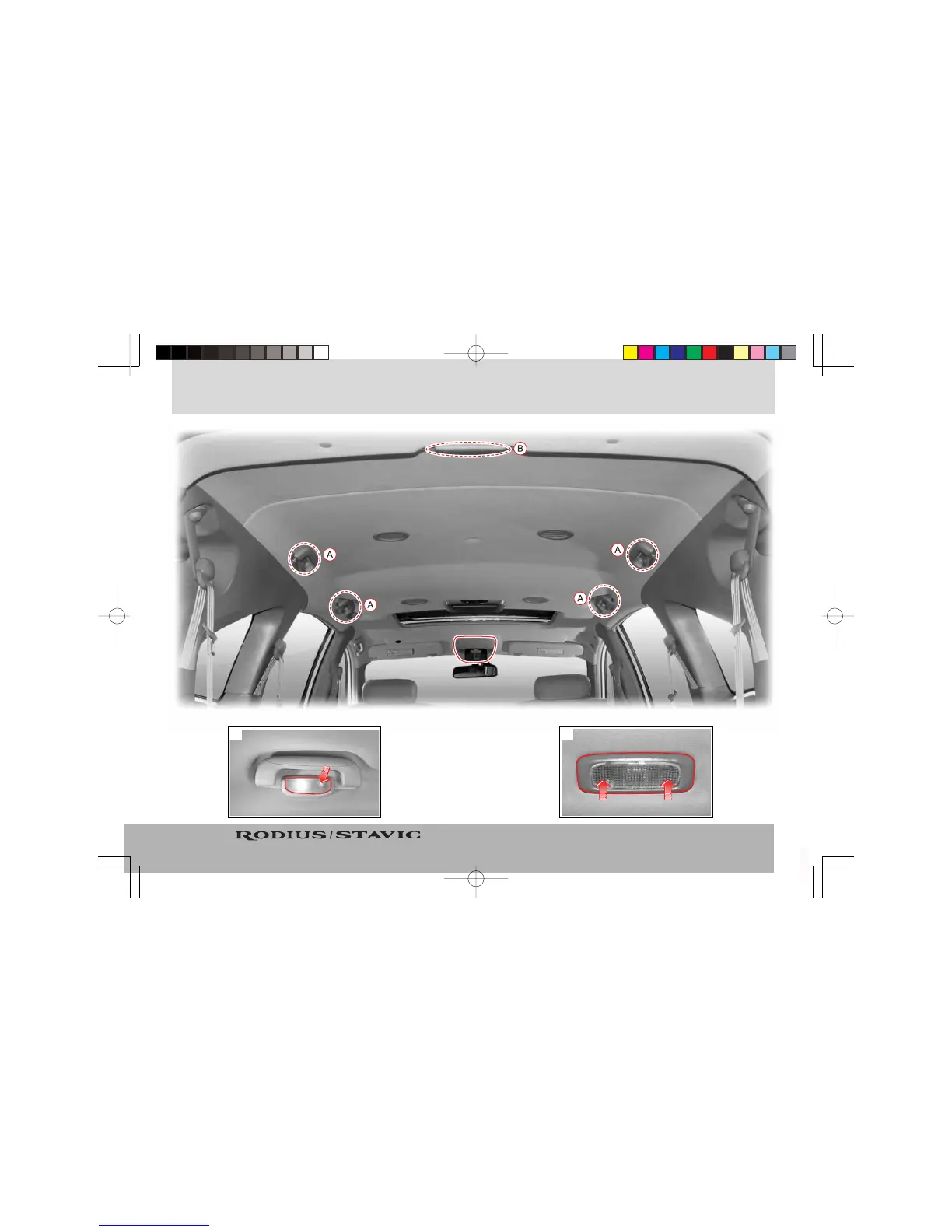

4-22
SWITCHES IN OVERHEAD CONSOLE
AND ROOM LAMP SWITCHES
Side room lamp
and switch
Rear room lamp
and switch
ON
Press the lamp body to turn on.
Press it again to turn off.
•
Side room lamps and rear
room lamp are available only
when the side room lamp
coupled switch is pressed in.
OFF
A
B
Side Room Lamp Switch
Rear Room Lamp Switch
Front room lamp
A120_RHD_04_Interior Switches.p65
2006-10-02, ¿ÀÀü 11:04
Page 22
Adobe PageMaker 6.5K/Win
70
72
