Control Parameters panel:
Refer to Section 3.1.1: EVAL 6235 window on page 12.
Control loop time:
Refer to Section 3.1.1: EVAL 6235 window on page 12.
3.1.3 Log window
Using the log window is possible to view the frames sent and received by the GUI (to check
the state of communication with the board).
A text string is shown explaining the command and also the hexadecimal value of the
command (refer to Section 4.1: Communication protocol on page 17).

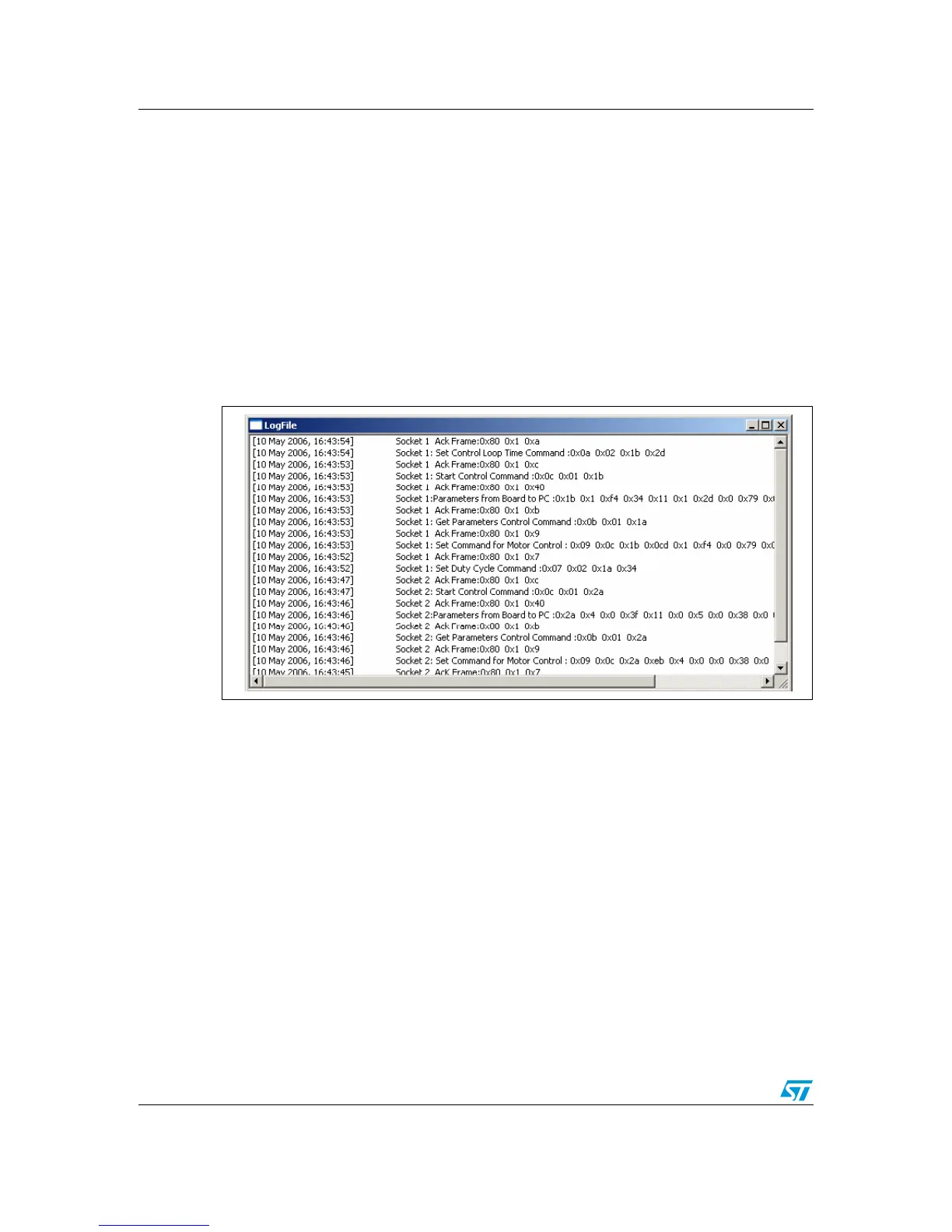

Figure 10. Log window
