6. Hardware layout and configuration
NUCLEO-WBA55CG is designed around the STM32WBA55CG. The design includes a mezzanine board and an
MCU RF board. The hardware block diagram in Figure 2 illustrates the connection between STM32WBA55CG
and peripherals (ARDUINO
®
Uno V3 connectors, ST morpho connector, and embedded ST-LINK).
Figure 3 helps users locate these features on the MB1803B-01 board. The mechanical dimensions of the
NUCLEO-WBA55CG product are shown in Figure 4.

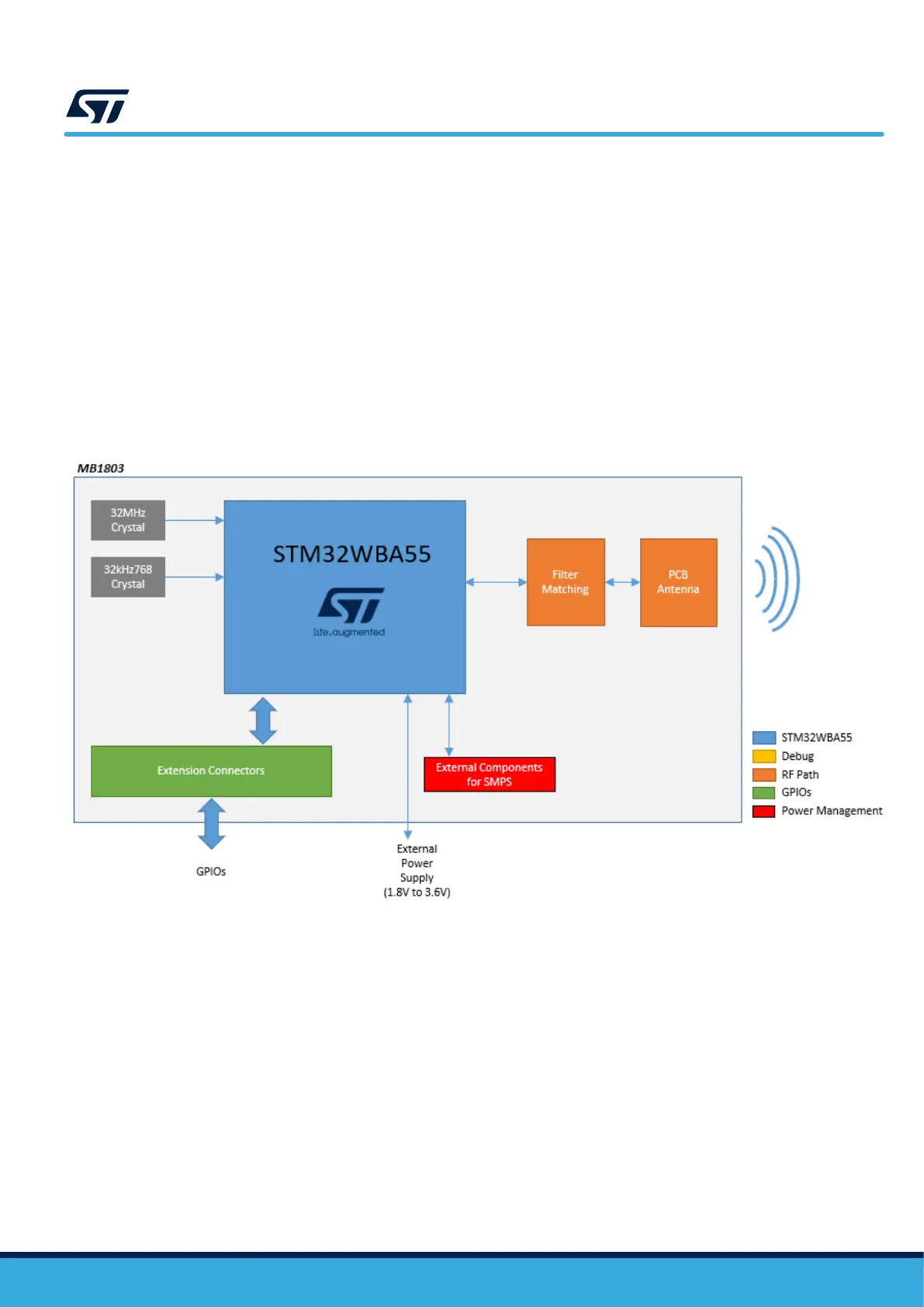

Figure 2 Hardware block diagram
