DocID028599 Rev 7 11/82
UM1974 Hardware layout and configuration
81
6 Hardware layout and configuration
The STM32 Nucleo-144 board is designed around the STM32 microcontrollers in a 144-pin
LQFP package.
Figure 3 shows the connections between the STM32 and its peripherals (ST-LINK/V2-1,
push-buttons, LEDs, USB, Ethernet, ST Zio connectors and ST morpho headers).
Figure 4 and Figure 5 show the location of these features on the STM32 Nucleo-144 board.
The mechanical dimensions of the board are showed in Figure 6 and Figure 7.

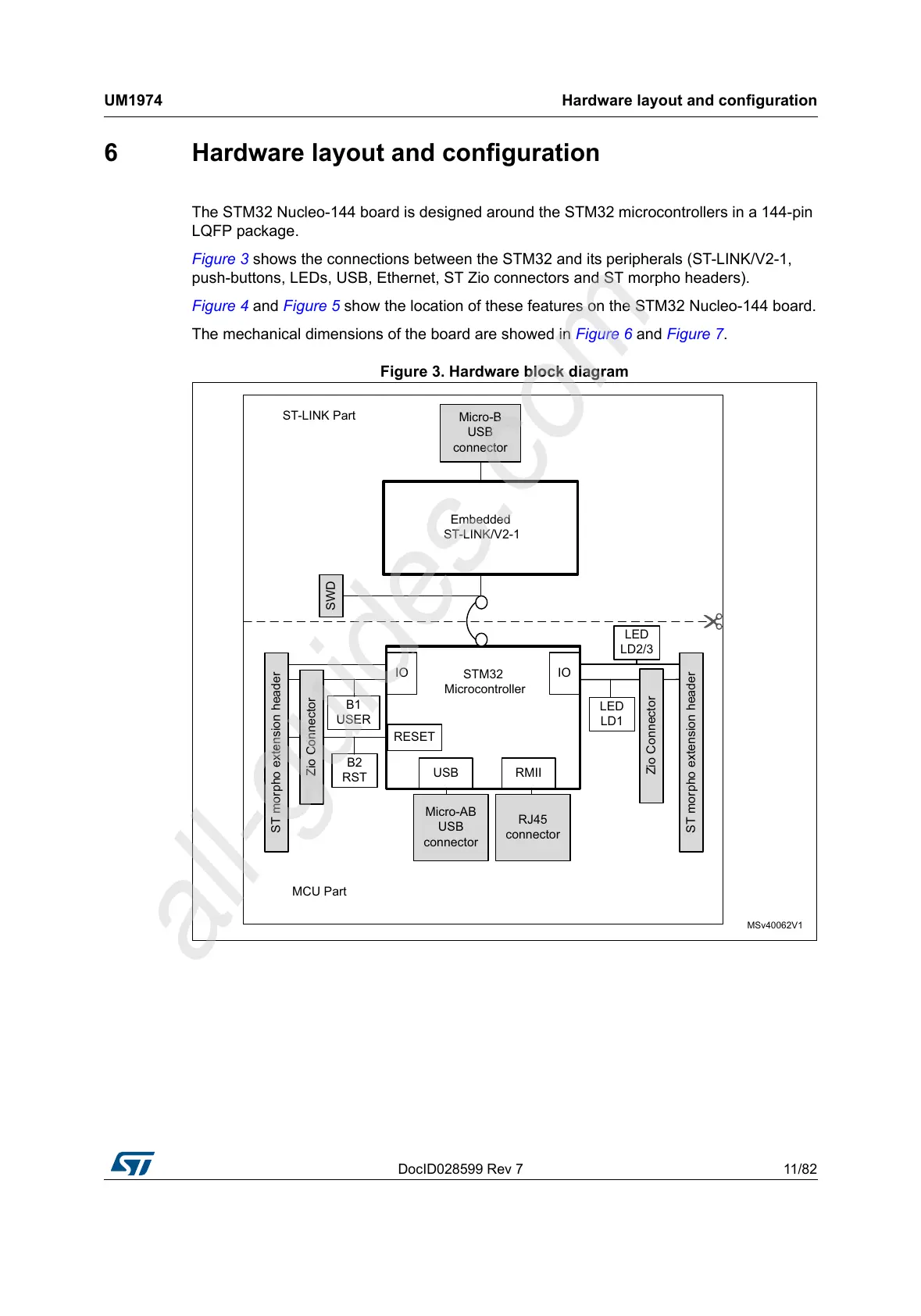

Figure 3. Hardware block diagram
