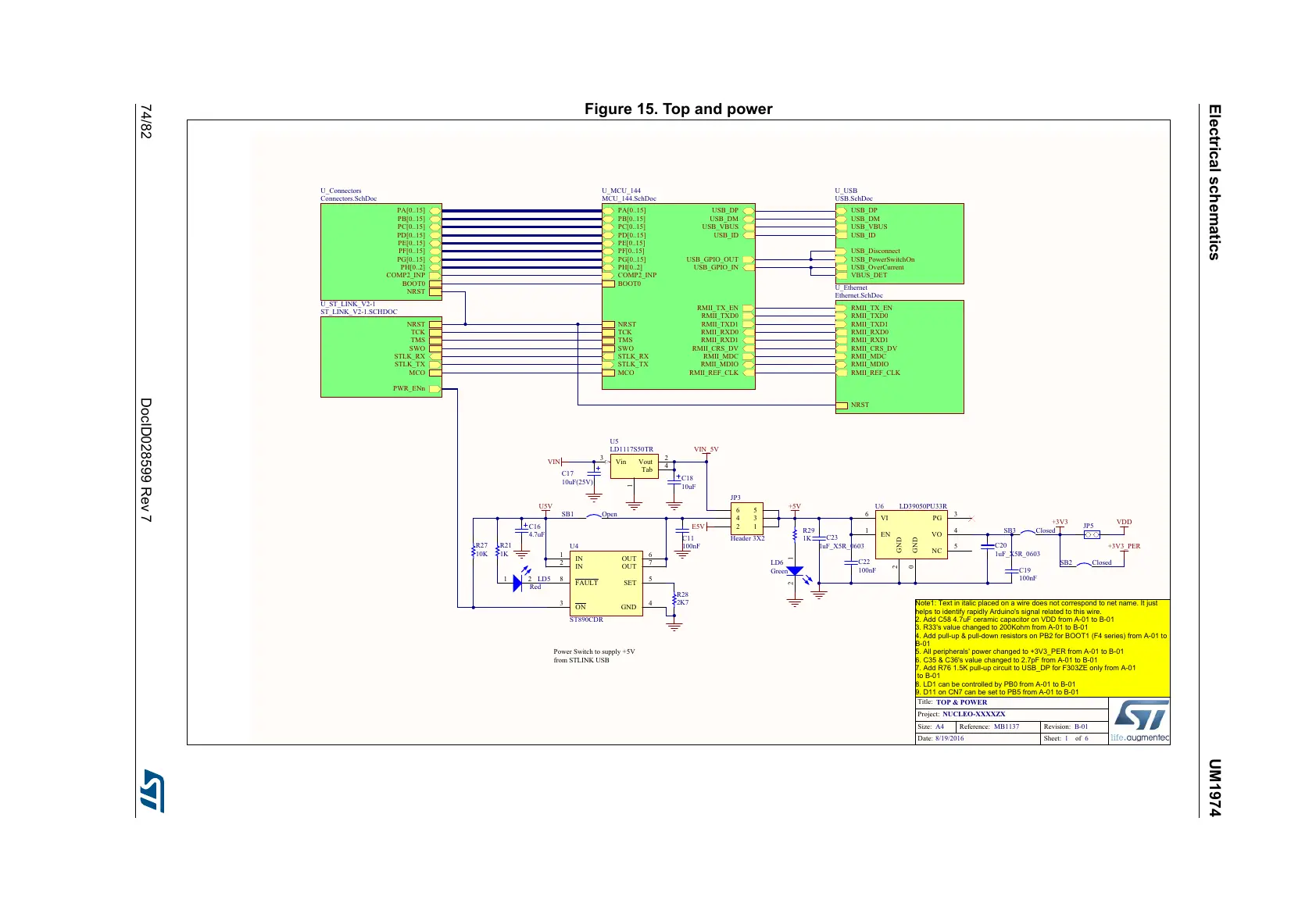

ST NUCLEO-F207ZG - Figure 15. Top and Power

Electrical schematics UM1974 74/82 DocID028599 Rev 7
Figure 15. Top and power
16
TOP & POWER
MB1137 B-01
8/19/2016
Title:
Size: Reference:
Date: Sheet: of
A4
Revision:
NUCLEO-XXXXZX
Project:
+3V3
C20
1uF_X5R_0603
C22
100nF
C19
100nF
VIN
+5V
VDD
JP5
R29
1K
C17
10uF(25V)
C18
10uF
Vin
3
Vout
2
1
Tab
4
U5
LD1117S50TR
EN
1
GND
2
VO
4
NC
5
GND
0
VI
6
PG
3
U6 LD39050PU33R
Note1: Text in italic placed on a wire does not correspond to net name. It just
helps to identify rapidly Arduino's signal related to this wire.
2. Add C58 4.7uF ceramic capacitor on VDD from A-01 to B-01
3. R33's value changed to 200Kohm from A-01 to B-01
4. Add pull-up & pull-down resistors on PB2 for BOOT1 (F4 series) from A-01 to
B-01
5. All peripherals' power changed to +3V3_PER from A-01 to B-01
6. C35 & C36's value changed to 2.7pF from A-01 to B-01
7. Add R76 1.5K pull-up circuit to USB_DP for F303ZE only from A-01
to B-01
8. LD1 can be controlled by PB0 from A-01 to B-01
9. D11 on CN7 can be set to PB5 from A-01 to B-01
C23
1uF_X5R_0603
E5V
Power Switch to supply +5V
from STLINK USB
C16
4.7uF
IN
1
IN
2
ON
3
GND
4
SET
5
OUT
6
OUT
7
FAULT
8
U4
ST890CDR
R27
10K
R28
2K7
C11
100nF
1 2 LD5
Red
R21
1K
SB1 Open
U5V
SB3 Closed
PA[0..15]
PB[0..15]
PC[0..15]
NRST
BOOT0
PD[0..15]
PE[0..15]
PF[0..15]
PG[0..15]
PH[0..2]
COMP2_INP
U_Connectors
Connectors.SchDoc
TMS
TCK
MCO
NRST
STLK_RX
STLK_TX
SWO
PWR_ENn
U_ST_LINK_V2-1
ST_LINK_V2-1.SCHDOC
RMII_TXD0
RMII_TX_EN
RMII_RXD0
RMII_REF_CLK
RMII_CRS_DV
RMII_MDC
RMII_MDIO
NRST
RMII_TXD1
RMII_RXD1
U_Ethernet
Ethernet.SchDoc
6 5
4 3
2 1
JP3
Header 3X2
VIN_5V
SB2 Closed
+3V3_PER
12
LD6
Green
NRST
MCO
STLK_TX
STLK_RX
PA[0..15]
PB[0..15]
PC[0..15]
TCK
TMS
SWO
BOOT0
PD[0..15]
PE[0..15]
PF[0..15]
PG[0..15]
PH[0..2]
USB_DM
USB_DP
USB_GPIO_OUT
USB_GPIO_IN
USB_ID
USB_VBUS
RMII_TXD0
RMII_TX_EN
RMII_RXD0
RMII_REF_CLK
RMII_CRS_DV
RMII_MDC
RMII_MDIO
RMII_TXD1
RMII_RXD1
COMP2_INP
U_MCU_144
MCU_144.SchDoc
USB_PowerSwitchOn
USB_OverCurrent
USB_DM
USB_DP
USB_ID
USB_VBUS
USB_Disconnect
VBUS_DET
U_USB
USB.SchDoc
